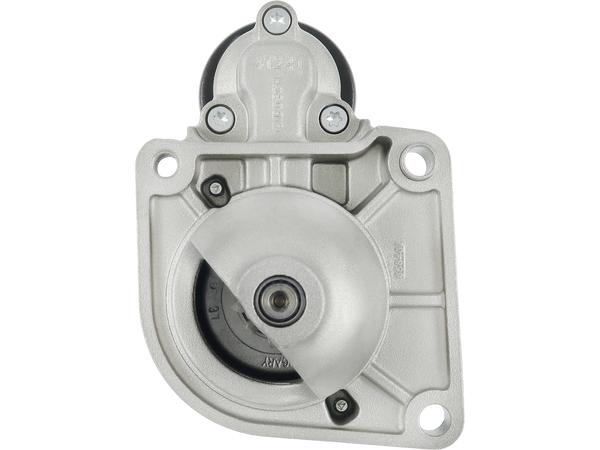

S01199PR
Startmotorer
PREMIUM LINE
714 kr
Köp nu
| EAN | 5902129267508 |
| Tillverkare | AS-PL |
| Ersätter | BOSCH |
| OE-nummer |
ANDEL: ANM100192 BOSCH: 0001137001, 0001137002, 0001137011, 0001137012, 0001170402, 0001170403, 0001170410, 0001170411, 0001B00404, 0001B00671, 1986S00874 CARGO: 115312, F032115312 DELCO: DRS0289 DRI: 318241102 ELSTOCK: 25-5454 FIAT: 051873926, 51804744, 51808744, 51916168, 51916169, 51975677, 52100116, 71793777, 71795387, 71796409, 71798110 FORD: 1715776, 1881471, BS51-11000-AA, FS51-11000-AA, RMF-11000-AA, S51-11000-AA HC PARTS: CS1515 LUCAS: LRS04292, LRS4292 MAGNETI MARELLI: 063521370010, 63280060 MEAT & DORIA: 5010308, 5010308G PSH: 500.558.093.010, 500.558.093.213, 500.558.093.280, 500.558.093.341, 500.558.093.346, 500.558.093.440, 500.558.093.555 RNL: RNL137002, RNL170400 VALEO: 438413, 458729, TS1480, TSL1229 WAI / TRANSPO: 30776N, 30776R WALKER: WST00345 WOODAUTO: STR50518, WOOSTR50518 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 12 |
| Effekt [ kW ] | 1.70 |
| Startmotors rotation | CW |
| A-storlek [ mm ] | 64.00 |
| B-storlek [ mm ] | 11.00 |
| Antal kuggar [ qty. ] | 10 |
| Antal hål i huvudet [ qty. ] | 3 |
| Antal gängade hål [ qty. ] | 1 |
| L.1 [ mm ] | 218.00 |
| O.1 [ mm ] | 75.00 |
| O.2 [ mm ] | 108.50 |
| O.3 [ mm ] | 75.00 |
| C.1 [ mm ] | 8.50 |
| C.2 [ mm ] | 9.00 |
| C.3 [ mm ] | M8x1.25 |
Passar i 242 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| ABARTH | 1.4 (199.AXN1B) | GRANDE PUNTO | 199A8.000 | 155 | Petrol | 2007–2010 |
| ABARTH | 1.4 (199.AXX1B) | PUNTO | 955A8.000 | 163 | Petrol | 2012– |
| ABARTH | 1.4 (199.AXX1B) | PUNTO EVO | 955A8.000 | 163 | Petrol | 2009–2012 |
| ABARTH | 1.4 (312.AXD1A) | 500 / 595 / 695 | 312A1.000 | 135 | Petrol | 2008– |
| ABARTH | 1.4 (312.AXD1A) | 500C / 595C / 695C | 312A1.000 | 135 | Petrol | 2008– |
| ABARTH | 1.4 (312.AXF11, 312.AXF1A) | 500 / 595 / 695 | 312A3.000 | 180 | Petrol | 2008– |
| ABARTH | 1.4 (312.AXF11, 312.AXF1A) | 500 / 595 / 695 | 312B3.000 | 180 | Petrol | 2008– |
| ABARTH | 1.4 (312.AXF11, 312.AXF1A) | 500C / 595C / 695C | 312A3.000 | 180 | Petrol | 2010– |
| ABARTH | 1.4 (312.AXF11, 312.AXF1A, 312.AXD1A) | 500 / 595 / 695 | 312A1.000 | 160 | Petrol | 2008– |
| ABARTH | 1.4 (312.AXF11, 312.AXF1A, 312.AXD1A) | 500 / 595 / 695 | 312B4.000 | 160 | Petrol | 2008– |
| ABARTH | 1.4 (312.AXF11, 312.AXF1A, 312.AXD1A) | 500 / 595 / 695 | 312A3.000 | 160 | Petrol | 2008– |
| ABARTH | 1.4 (312.AXF1A, 312.AXD1A) | 500 / 595 / 695 | 312A3.000 | 140 | Petrol | 2010– |
| ABARTH | 1.4 (312.AXF1A, 312.AXD1A) | 500C / 595C / 695C | 312A1.000 | 160 | Petrol | 2011– |
| ABARTH | 1.4 (312.AXF1A, 312.AXD1A) | 500C / 595C / 695C | 312B4.000 | 160 | Petrol | 2011– |
| ABARTH | 1.4 (312.AXF1A, 312.AXD1A) | 500C / 595C / 695C | 312A3.000 | 160 | Petrol | 2011– |
| ABARTH | 1.4 (312.AXF1A, 312.AXF11, 312.AXD1A) | 500C / 595C / 695C | 312A1.000 | 140 | Petrol | 2009– |
| ABARTH | 1.4 (312.AXF1A, 312.AXF11, 312.AXD1A) | 500C / 595C / 695C | 312A3.000 | 140 | Petrol | 2009– |
| ABARTH | 1.4 (312.AXT1A) | 500 / 595 / 695 | 312A1.000 | 190 | Petrol | 2008– |
| ABARTH | 1.4 (312.AXT1A) | 500 / 595 / 695 | 312A9.000 | 190 | Petrol | 2008– |
| ABARTH | 1.4 (312.AXY11, 312.AXY1A) | 500 / 595 / 695 | 312B4.000 | 145 | Petrol | 2016– |
| ABARTH | 1.4 (312.AXY1A, 312.AXY11) | 500C / 595C / 695C | 312B4.000 | 145 | Petrol | 2016– |
| ABARTH | 1.4 (312.AXZ11) | 500 / 595 / 695 | 312B3.000 | 165 | Petrol | 2016– |
| ABARTH | 1.4 (312.AXZ1A) | 500C / 595C / 695C | 312B3.000 | 165 | Petrol | 2016– |
| ABARTH | 1.4 (312.AYB11, 312.AYB1A) | 500 / 595 / 695 | 312B6.000 | 163 | Petrol | 2016– |
| ABARTH | 1.4 (348) | 124 Spider | 55253268 | 170 | Petrol | 2016– |
| ABARTH | 1.4 ESSEESSE / SUPERSPORT (199.AXX1B) | GRANDE PUNTO | 199A8.000 | 180 | Petrol | 2008–2010 |
| ABARTH | 1.4 SUPERSPORT (199.AXX1B) | PUNTO | 955A8.000 | 180 | Petrol | 2012– |
| ALFA ROMEO | 0.9 TwinAir (955AXY1B) | MITO (955_) | 199B6.000 | 105 | Petrol | 2013–2018 |
| ALFA ROMEO | 0.9 TwinAir (955AXY1B, 955AXZ1B) | MITO (955_) | 199B7.000 | 101 | Petrol | 2013–2018 |
| ALFA ROMEO | 1.4 (940FXA1A) | GIULIETTA Hatchback Van (940_) | 198A4.000 | 120 | Petrol | 2011–2016 |
| ALFA ROMEO | 1.4 (940FXB1A) | GIULIETTA Hatchback Van (940_) | 940A2.000 | 170 | Petrol | 2011–2020 |
| ALFA ROMEO | 1.4 (955.AXB1B, 955.AXU1A) | MITO (955_) | 350A1.000 | 78 | Petrol | 2011–2018 |
| ALFA ROMEO | 1.4 (955AXB1B) | MITO (955_) | 955A1.000 | 78 | Petrol | 2008–2013 |
| ALFA ROMEO | 1.4 (955AXB1B, 955.AXF1B) | MITO (955_) | 199A6.000 | 95 | Petrol | 2008–2013 |
| ALFA ROMEO | 1.4 (955AXV1A) | MITO (955_) | 955A9.000 | 69 | Petrol | 2011–2018 |
| ALFA ROMEO | 1.4 BiFuel (940FXA1A, 940FXT1A) | GIULIETTA (940_) | 198A4.000 | 120 | Petrol/Liquified Petroleum Gas (LPG) | 2011–2017 |
| ALFA ROMEO | 1.4 Bifuel (955.AXG1A) | MITO (955_) | 198A4.000 | 120 | Petrol/Compressed Natural Gas (CNG) | 2016–2018 |
| ALFA ROMEO | 1.4 Bifuel (955AXG1A) | MITO (955_) | 198A4.000 | 120 | Petrol/Liquified Petroleum Gas (LPG) | 2009–2016 |
| ALFA ROMEO | 1.4 MultiAir (955AXL1B) | MITO (955_) | 955A6.000 | 105 | Petrol | 2009–2013 |
| ALFA ROMEO | 1.4 MultiAir (955AXN1B) | MITO (955_) | 940A2.000 | 170 | Petrol | 2009–2018 |
| ALFA ROMEO | 1.4 TB (940.FYA1A) | GIULIETTA (940_) | 940C2.000 | 150 | Petrol | 2014–2018 |
| ALFA ROMEO | 1.4 TB (940FXA1A, 940FXT1A) | GIULIETTA (940_) | 940B7.000 | 120 | Petrol | 2010–2020 |
| ALFA ROMEO | 1.4 TB (940FXA1A, 940FXT1A) | GIULIETTA (940_) | 198A4.000 | 120 | Petrol | 2010–2020 |
| ALFA ROMEO | 1.4 TB (940FXB1A, 940FXB11) | GIULIETTA (940_) | 940A2.000 | 170 | Petrol | 2010–2018 |
| ALFA ROMEO | 1.4 TB (940FXF1A) | GIULIETTA (940_) | 940A6.000 | 116 | Petrol | 2010–2016 |
| ALFA ROMEO | 1.4 TB (940FXG1A) | GIULIETTA (940_) | 955A8.000 | 163 | Petrol | 2010–2018 |
| ALFA ROMEO | 1.4 TB (940FXN1A, 940FXU1A) | GIULIETTA (940_) | 940B1.000 | 105 | Petrol | 2011–2017 |
| ALFA ROMEO | 1.4 TB (940FXN1A, 940FXU1A) | GIULIETTA (940_) | 940B8.000 | 105 | Petrol | 2011–2017 |
| ALFA ROMEO | 1.4 TB (955.AYB11, 955.AXB1B) | MITO (955_) | 955B1.000 | 140 | Petrol | 2013–2018 |
| ALFA ROMEO | 1.4 TJet (955AXA1B) | MITO (955_) | 199A8.000 | 155 | Petrol | 2008–2011 |
| ALFA ROMEO | 1.4 TJet (955AXD1B) | MITO (955_) | 198A1.000 | 150 | Petrol | 2008–2011 |
| ALFA ROMEO | 1.4 TJet (955AXG1A) | MITO (955_) | 198A4.000 | 120 | Petrol | 2008–2013 |
| ALFA ROMEO | 1.4 Turbo MultiAir (955AXM1A, 955AXR11) | MITO (955_) | 955A7.000 | 135 | Petrol | 2009–2014 |
| ALFA ROMEO | 1.4 Turbo MultiAir (955AXM1A, 955AXR11) | MITO (955_) | 955A2.000 | 135 | Petrol | 2009–2014 |
| ALFA ROMEO | 1.4 Turbo MultiAir (955AXS1B, 955AXS11) | MITO (955_) | 955A8.000 | 163 | Petrol | 2009–2018 |
| ALFA ROMEO | 2.0 (952ABA25B) | GIULIA (952_) | 55273835 | 200 | Petrol | 2016–2022 |
| ALFA ROMEO | 2.0 (952ACA25) | GIULIA (952_) | 55273835 | 280 | Petrol | 2016– |
| ALFA ROMEO | 2.0 (952ACA25) | GIULIA (952_) | EC2 | 280 | Petrol | 2016– |
| FIAT | 0.9 (199LYC1B) | 500L (351_, 352_) | 199B6.000 | 105 | Petrol | 2012– |
| FIAT | 0.9 (312AG1A) | 500 C (312_) | 312A2.000 | 86 | Petrol | 2009– |
| FIAT | 0.9 (312AXG1A, 312.AXG11) | 500 (312_) | 312A2.000 | 86 | Petrol | 2010– |
| FIAT | 0.9 (312AXH1A) | 500 (312_) | 312A4.000 | 65 | Petrol | 2012– |
| FIAT | 0.9 (312AXH1A) | 500 C (312_) | 312A4.000 | 65 | Petrol | 2012– |
| FIAT | 0.9 (312AXM1B) | 500 (312_) | 199B6.000 | 105 | Petrol | 2013– |
| FIAT | 0.9 (312AXM1B) | 500 C (312_) | 199B6.000 | 105 | Petrol | 2013– |
| FIAT | 0.9 (312AXN1A) | 500 (312_) | 312A5.000 | 80 | Petrol | 2013– |
| FIAT | 0.9 (312AXN1A, 312AXN11) | 500 C (312_) | 312A5.000 | 80 | Petrol | 2013– |
| FIAT | 0.9 (312AXP1A) | 500 (312_) | 312A6.000 | 60 | Petrol | 2013– |
| FIAT | 0.9 (312AXP1A) | 500 (312_) | 312A4.000 | 60 | Petrol | 2013– |
| FIAT | 0.9 (312AXP1A) | 500 C (312_) | 312A6.000 | 60 | Petrol | 2013– |
| FIAT | 1.1 (169.AXA1A) | PANDA (169_) | 187A1.000 | 54 | Petrol | 2003– |
| FIAT | 1.1 (169CXA1A) | PANDA Hatchback Van (169_) | 187A1.000 | 54 | Petrol | 2004– |
| FIAT | 1.2 | GRANDE PUNTO (199_) | 169A4.000 | 69 | Petrol | 2010– |
| FIAT | 1.2 | GRANDE PUNTO (199_) | 199A4.000 | 65 | Petrol | 2005– |
| FIAT | 1.2 | PALIO (178_, 171_, 371_) | 178C4.066 | 60 | Petrol | 1997–2002 |
| FIAT | 1.2 | PALIO (178_, 171_, 371_) | 176A8.000 | 73 | Petrol | 1998– |
| FIAT | 1.2 | PALIO (178_, 171_, 371_) | 178E2.000 | 73 | Petrol | 1998– |
| FIAT | 1.2 | PALIO (178_, 171_, 371_) | 178E2.000 | 68 | Petrol | 1999–2000 |
| FIAT | 1.2 | PALIO (178_, 171_, 371_) | 178B7.045 | 60 | Petrol | 1997–2002 |
| FIAT | 1.2 | PALIO (178_, 171_, 371_) | 188A4.000 | 60 | Petrol | 1997–2002 |
| FIAT | 1.2 | PALIO (178_, 171_, 371_) | 178B5.000 | 73 | Petrol | 1998– |
| FIAT | 1.2 | PANDA Hatchback Van (169_) | 188A4.000 | 60 | Petrol | 2004– |
| FIAT | 1.2 | PANDA Hatchback Van (169_) | 169A4.000 | 69 | Petrol | 2010– |
| FIAT | 1.2 | PUNTO EVO (199_) | 199A4.000 | 65 | Petrol | 2009–2012 |
| FIAT | 1.2 | PUNTO EVO (199_) | 169A4.000 | 69 | Petrol | 2009–2012 |
| FIAT | 1.2 (169.AXB11, 169.AXB1A) | PANDA (169_) | 188A4.000 | 60 | Petrol | 2003– |
| FIAT | 1.2 (169AXF2A, 169AXF1A) | PANDA (169_) | 169A4.000 | 69 | Petrol | 2010–2013 |
| FIAT | 1.2 (178DYA1A, 178DXS1A) | PALIO Weekend (178_, 173_, 373_, 374_, 171_) | 188A4.000 | 60 | Petrol | 1997–2004 |
| FIAT | 1.2 (178DYA1A, 178DXS1A) | PALIO Weekend (178_, 173_, 373_, 374_, 171_) | 178C4.066 | 60 | Petrol | 1997–2004 |
| FIAT | 1.2 (199AXZ1A, 199BXZ1A) | PUNTO (199_) | 169A4.000 | 69 | Petrol | 2012– |
| FIAT | 1.2 (199AYL1A, 199BYL1A) | PUNTO (199_) | 199B9.000 | 67 | Petrol | 2014– |
| FIAT | 1.2 (223AXA1A) | DOBLO MPV (119_, 223_) | 223A5.000 | 65 | Petrol | 2001– |
| FIAT | 1.2 (223ZXA1A) | DOBLO Box Body/MPV (223_) | 223A5.000 | 65 | Petrol | 2001–2004 |
| FIAT | 1.2 (312AXA1A) | 500 (312_) | 169A4.000 | 69 | Petrol | 2007– |
| FIAT | 1.2 (312CXA1A, 312AXA1A) | 500 C (312_) | 169A4.000 | 69 | Petrol | 2009– |
| FIAT | 1.2 (312CXA1A, 312DXA1A) | PANDA VAN (312_, 519_) | 169A4.000 | 69 | Petrol | 2012– |
| FIAT | 1.2 (312PXA1A) | PANDA (312_, 319_) | 169A4.000 | 69 | Petrol | 2012– |
| FIAT | 1.2 16V | IDEA (350_) | 188A5.000 | 80 | Petrol | 2004– |
| FIAT | 1.2 16V (192_XA1B) | STILO (192_) | 188A5.000 | 80 | Petrol | 2002–2006 |
| FIAT | 1.2 16V 80 | BRAVA (182_) | 182B2.000 | 82 | Petrol | 1998–2002 |
| FIAT | 1.2 4x4 | PANDA Hatchback Van (169_) | 169A4.000 | 69 | Petrol | 2010– |
| FIAT | 1.2 4x4 | PANDA Hatchback Van (169_) | 188A4.000 | 60 | Petrol | 2004– |
| FIAT | 1.2 4x4 (169.AXB2A) | PANDA (169_) | 188A4.000 | 60 | Petrol | 2004– |
| FIAT | 1.2 4x4 (169AXF2A, 169AXF1A) | PANDA (169_) | 169A4.000 | 69 | Petrol | 2010–2013 |
| FIAT | 1.2 60 (188.030, .050, .130, .150, .230, .250) | PUNTO (188_) | 188A4.000 | 60 | Petrol | 1999–2010 |
| FIAT | 1.2 Bifuel | PUNTO (188_) | 188A4.000 | 60 | Petrol/Liquified Petroleum Gas (LPG) | 2007–2012 |
| FIAT | 1.2 Bipower (169CXB1A) | PANDA Hatchback Van (169_) | 188A4.000 | 60 | Petrol/Ethanol | 2004–2011 |
| FIAT | 1.2 LPG | PANDA Hatchback Van (169_) | 169A4.000 | 69 | Petrol/Liquified Petroleum Gas (LPG) | 2010– |
| FIAT | 1.2 LPG | PANDA Hatchback Van (169_) | 188A4.000 | 60 | Petrol/Liquified Petroleum Gas (LPG) | 2009– |
| FIAT | 1.2 LPG (169.AXB1A) | PANDA (169_) | 188A4.000 | 60 | Petrol/Liquified Petroleum Gas (LPG) | 2009– |
| FIAT | 1.2 LPG (169CXF1A) | PANDA (169_) | 169A4.000 | 69 | Petrol/Liquified Petroleum Gas (LPG) | 2010–2013 |
| FIAT | 1.2 LPG (312AXA1A) | 500 (312_) | 169A4.000 | 69 | Petrol/Liquified Petroleum Gas (LPG) | 2010– |
| FIAT | 1.2 LPG (312CXA1A) | PANDA VAN (312_, 519_) | 169A4.000 | 69 | Petrol/Liquified Petroleum Gas (LPG) | 2012– |
| FIAT | 1.2 LPG (312PXA1A) | PANDA (312_, 319_) | 169A4.000 | 69 | Petrol/Liquified Petroleum Gas (LPG) | 2012– |
| FIAT | 1.2 Natural Power | PANDA Hatchback Van (169_) | 188A4.000 | 60 | Petrol/Compressed Natural Gas (CNG) | 2007–2009 |
| FIAT | 1.2 Natural Power | PUNTO (188_) | 188A4.000 | 60 | Petrol/Compressed Natural Gas (CNG) | 2003–2012 |
| FIAT | 1.2 Natural Power (169.AXB1A) | PANDA (169_) | 188A4.000 | 60 | Petrol/Compressed Natural Gas (CNG) | 2007–2011 |
| FIAT | 1.3 (1788891, 1789491, 1730250) | PALIO Weekend (178_, 173_, 373_, 374_, 171_) | 188A5.000 | 80 | Petrol | 2000–2003 |
| FIAT | 1.3 (1788891, 1789491, 1730250) | PALIO Weekend (178_, 173_, 373_, 374_, 171_) | 178D6.011 | 80 | Petrol | 2000–2003 |
| FIAT | 1.3 (178DYE1A, 178DYE1AAP, 178DYE1AAT) | PALIO Weekend (178_, 173_, 373_, 374_, 171_) | 178D6.011 | 80 | Petrol | 2001–2004 |
| FIAT | 1.3 (178DYE1A, 178DYE1AAP, 178DYE1AAT) | PALIO Weekend (178_, 173_, 373_, 374_, 171_) | 188A5.000 | 80 | Petrol | 2001–2004 |
| FIAT | 1.3 D Multijet (312AXE1A) | 500 (312_) | 199B1.000 | 95 | Diesel | 2009– |
| FIAT | 1.3 D Multijet (312AXE1A) | 500 (312_) | 312B1.000 | 95 | Diesel | 2009– |
| FIAT | 1.3 D Multijet (312CXE1A, 312AXE1A) | 500 C (312_) | 312B1.000 | 95 | Diesel | 2009– |
| FIAT | 1.3 D Multijet (312CXE1A, 312AXE1A) | 500 C (312_) | 199B1.000 | 95 | Diesel | 2009– |
| FIAT | 1.4 | DOBLO Box Body/MPV (223_) | 350A1.000 | 77 | Petrol | 2005– |
| FIAT | 1.4 | DOBLO Cargo (263_) | 198A4.000 | 120 | Petrol | 2011– |
| FIAT | 1.4 | DOBLO Cargo (263_) | 843A1.000 | 95 | Petrol | 2010– |
| FIAT | 1.4 | DOBLO MPV (119_, 223_) | 350A1.000 | 77 | Petrol | 2005– |
| FIAT | 1.4 | DOBLO Platform/Chassis (263_) | 843A1.000 | 95 | Petrol | 2010– |
| FIAT | 1.4 | DOBLO Platform/Chassis (263_) | 198A4.000 | 120 | Petrol | 2011– |
| FIAT | 1.4 | IDEA (350_) | 192B2.000 | 90 | Petrol | 2003– |
| FIAT | 1.4 | IDEA (350_) | 350A1.000 | 77 | Petrol | 2005– |
| FIAT | 1.4 | LINEA (323_, 110_) | 350A1.000 | 77 | Petrol | 2007– |
| FIAT | 1.4 | PUNTO (188_) | 843A1.000 | 95 | Petrol | 2003–2012 |
| FIAT | 1.4 | SIENA (178_, 172_, 372_) | 178F3.011 | 77 | Petrol | 2007–2009 |
| FIAT | 1.4 | SIENA (178_, 172_, 372_) | 350A1.000 | 77 | Petrol | 2007–2009 |
| FIAT | 1.4 (169AXE1B) | PANDA (169_) | 169A3.000 | 100 | Petrol | 2006– |
| FIAT | 1.4 (192DXH1B) | STILO VAN (192_) | 843A1.000 | 95 | Petrol | 2004–2008 |
| FIAT | 1.4 (198AXA1B) | BRAVO II (198_) | 192B2.000 | 90 | Petrol | 2007–2014 |
| FIAT | 1.4 (199.AXB1A) | PUNTO EVO Hatchback Van (199_) | 350A1.000 | 78 | Petrol | 2009–2012 |
| FIAT | 1.4 (199AXB11, 199AXB1A, 199BXB1A, 199AXL1A) | GRANDE PUNTO (199_) | 350A1.000 | 77 | Petrol | 2005–2015 |
| FIAT | 1.4 (199AXB1A) | GRANDE PUNTO (199_) | 199A7.000 | 75 | Petrol | 2005–2007 |
| FIAT | 1.4 (199AXB1A) | PUNTO EVO (199_) | 350A1.000 | 77 | Petrol | 2009–2012 |
| FIAT | 1.4 (199AXB1A, 199BXB1A, 199BXB11, 199AXB11) | PUNTO (199_) | 350A1.000 | 78 | Petrol | 2012– |
| FIAT | 1.4 (199AXH1A) | PUNTO EVO (199_) | 199A7.000 | 75 | Petrol | 2009–2012 |
| FIAT | 1.4 (199AXH1A, 199BXH1A) | PUNTO (199_) | 199A7.000 | 75 | Petrol | 2012– |
| FIAT | 1.4 (199BXB1A, 199AXL1A, 199AXB1A) | PUNTO Hatchback Van (199_) | 350A1.000 | 78 | Petrol | 2012– |
| FIAT | 1.4 (199CXB1A, 199DXB1A) | GRANDE PUNTO Van (199_) | 350A1.000 | 77 | Petrol | 2006–2013 |
| FIAT | 1.4 (199LYB1B) | 500L (351_, 352_) | 843A1.000 | 95 | Petrol | 2012– |
| FIAT | 1.4 (199LYF1B) | 500L (351_, 352_) | 940B7.000 | 120 | Petrol | 2013– |
| FIAT | 1.4 (225AXA1A) | FIORINO MPV (225_) | 350A1.000 | 77 | Petrol | 2014– |
| FIAT | 1.4 (225AXA1A, 225BXA1A) | FIORINO Box Body/MPV (225_) | 350A1.000 | 78 | Petrol | 2009– |
| FIAT | 1.4 (225AXA1A, 225CXA1A) | QUBO (225_) | 350A1.000 | 78 | Petrol | 2009– |
| FIAT | 1.4 (263AXA1A) | DOBLO Bus (263_) | 843A1.000 | 95 | Petrol | 2010– |
| FIAT | 1.4 (263AXG1B, 263AXG1A) | DOBLO Bus (263_) | 198A4.000 | 120 | Petrol | 2011– |
| FIAT | 1.4 (301J410) | 500 (312_) | 169A3.000 | 102 | Petrol | 2008– |
| FIAT | 1.4 (301J410) | 500 C (312_) | 169A3.000 | 102 | Petrol | 2011– |
| FIAT | 1.4 (301J410) | 500 C (312_) | EAB | 102 | Petrol | 2011– |
| FIAT | 1.4 (312AXC1B, 312CXC1B) | 500 (312_) | 169A3.000 | 100 | Petrol | 2007– |
| FIAT | 1.4 (312CXC1B, 312AXC1B) | 500 C (312_) | 169A3.000 | 100 | Petrol | 2009– |
| FIAT | 1.4 (334AXC1B) | 500X (334_) | 55263624 | 136 | Petrol | 2014– |
| FIAT | 1.4 (334AXC1B, 334AXC11) | 500X (334_) | 55263624 | 140 | Petrol | 2014– |
| FIAT | 1.4 (348) | 124 Spider (348_) | 55253268 | 140 | Petrol | 2016– |
| FIAT | 1.4 (350BXA1A) | IDEA Van (350_) | 843A1.000 | 95 | Petrol | 2004–2012 |
| FIAT | 1.4 (356HXA1B) | TIPO Hatchback (356_, 357_) | 843A1.000 | 95 | Petrol | 2016– |
| FIAT | 1.4 (356HXF1B) | TIPO Hatchback (356_, 357_) | 940B7.000 | 120 | Petrol | 2016–2020 |
| FIAT | 1.4 (356SXA1B) | TIPO Saloon (356_, 357_) | 843A1.000 | 95 | Petrol | 2015– |
| FIAT | 1.4 (356WXA1B) | TIPO Estate (356_, 357_) | 843A1.000 | 95 | Petrol | 2016–2020 |
| FIAT | 1.4 (356WXF1B) | TIPO Estate (356_, 357_) | 940B7.000 | 120 | Petrol | 2016–2020 |
| FIAT | 1.4 16V | IDEA (350_) | 843A1.000 | 95 | Petrol | 2004– |
| FIAT | 1.4 16V | PUNTO EVO (199_) | 955A6.000 | 105 | Petrol | 2009–2012 |
| FIAT | 1.4 16V | STILO (192_) | 192B2.000 | 90 | Petrol | 2005–2006 |
| FIAT | 1.4 16V | STILO Multi Wagon (192_) | 192B2.000 | 90 | Petrol | 2005–2008 |
| FIAT | 1.4 16V | STILO Multi Wagon (192_) | 843A1.000 | 95 | Petrol | 2004–2008 |
| FIAT | 1.4 16V (192AXH1B, 192BXH1B) | STILO (192_) | 843A1.000 | 95 | Petrol | 2003–2006 |
| FIAT | 1.4 16V (198AXS1B) | BRAVO II (198_) | 198A7.000 | 140 | Petrol | 2010–2014 |
| FIAT | 1.4 16V (199AXW1A) | PUNTO EVO (199_) | 955A2.000 | 135 | Petrol | 2009–2012 |
| FIAT | 1.4 16V (199BXG1B, 199AXG1B) | GRANDE PUNTO (199_) | 199A6.000 | 95 | Petrol | 2005–2011 |
| FIAT | 1.4 4x4 (334AXF22) | 500X (334_) | 55263623 | 170 | Petrol | 2015– |
| FIAT | 1.4 4x4 (334AXF22) | 500X (334_) | 55263623 | 163 | Petrol | 2015–2018 |
| FIAT | 1.4 Bifuel | PUNTO (199_) | 350A1.000 | 78 | Petrol/Liquified Petroleum Gas (LPG) | 2012– |
| FIAT | 1.4 CNG (225AXC1A, 225BXC1A) | FIORINO MPV (225_) | 350A1.000 | 77 | Petrol/Compressed Natural Gas (CNG) | 2008– |
| FIAT | 1.4 LPG | GRANDE PUNTO (199_) | 350A1.000 | 78 | Petrol/Liquified Petroleum Gas (LPG) | 2008– |
| FIAT | 1.4 LPG | IDEA (350_) | 350A1.000 | 78 | Petrol/Liquified Petroleum Gas (LPG) | 2009– |
| FIAT | 1.4 LPG | PUNTO EVO (199_) | 350A1.000 | 78 | Petrol/Liquified Petroleum Gas (LPG) | 2009–2012 |
| FIAT | 1.4 LPG (198AXA1B) | BRAVO II (198_) | 192B2.000 | 90 | Petrol/Liquified Petroleum Gas (LPG) | 2008–2014 |
| FIAT | 1.4 LPG (199AXB1A, 199BXB1A, 199AXL1A) | PUNTO Hatchback Van (199_) | 350A1.000 | 78 | Petrol/Liquified Petroleum Gas (LPG) | 2012– |
| FIAT | 1.4 LPG (199LYF1B) | 500L (351_, 352_) | 940B7.000 | 120 | Petrol/Liquified Petroleum Gas (LPG) | 2014– |
| FIAT | 1.4 LPG (334AXL1B) | 500X (334_) | 55277701 | 120 | Petrol/Liquified Petroleum Gas (LPG) | 2017–2018 |
| FIAT | 1.4 LPG (356HXF1B) | TIPO Hatchback (356_, 357_) | 940B7.000 | 120 | Petrol/Liquified Petroleum Gas (LPG) | 2016–2020 |
| FIAT | 1.4 LPG (356SXF1B) | TIPO Saloon (356_, 357_) | 940B7.000 | 120 | Petrol/Liquified Petroleum Gas (LPG) | 2016–2020 |
| FIAT | 1.4 LPG (356WXF1B) | TIPO Estate (356_, 357_) | 940B7.000 | 120 | Petrol/Liquified Petroleum Gas (LPG) | 2016–2020 |
| FIAT | 1.4 Multi Air | PUNTO (199_) | 955A6.000 | 105 | Petrol | 2012– |
| FIAT | 1.4 Natural Power | DOBLO Cargo (263_) | 198A4.000 | 120 | Petrol/Compressed Natural Gas (CNG) | 2010– |
| FIAT | 1.4 Natural Power | DOBLO Platform/Chassis (263_) | 198A4.000 | 120 | Petrol/Compressed Natural Gas (CNG) | 2010– |
| FIAT | 1.4 Natural Power | GRANDE PUNTO (199_) | 350A1.000 | 78 | Petrol/Compressed Natural Gas (CNG) | 2008– |
| FIAT | 1.4 Natural Power | PANDA Hatchback Van (169_) | 350A1.000 | 78 | Petrol/Compressed Natural Gas (CNG) | 2009– |
| FIAT | 1.4 Natural Power | PUNTO (199_) | 350A1.000 | 78 | Petrol/Compressed Natural Gas (CNG) | 2012– |
| FIAT | 1.4 Natural Power | PUNTO EVO (199_) | 350A1.000 | 78 | Petrol/Compressed Natural Gas (CNG) | 2009–2012 |
Visar 200 av 242 fordon
