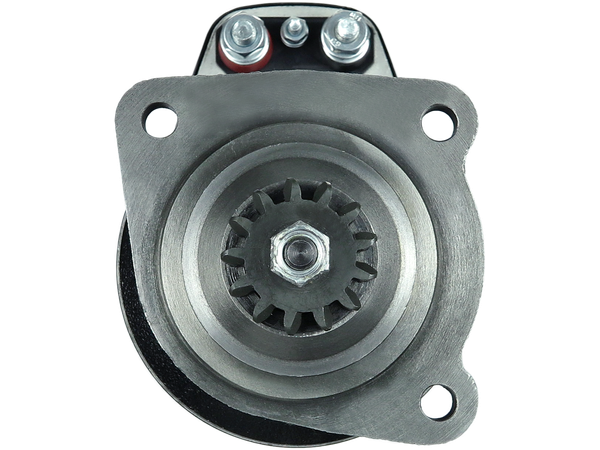

S0134
Startmotorer
STANDARD LINE
2100 kr
Köp nu
| EAN | 5901259420159 |
| Tillverkare | AS-PL |
| Ersätter | BOSCH |
| OE-nummer | 0001416004 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 24 |
| Effekt [ kW ] | 5.50 |
| Startmotors rotation | CW |
| A-storlek [ mm ] | 89.00 |
| B-storlek [ mm ] | 47.50 |
| Antal kuggar [ qty. ] | 13 |
| Antal kuggar (passar in) [ qty. ] | 13 |
| Antal hål i huvudet [ qty. ] | 3 |
| Antal gängade hål [ qty. ] | 0 |
| L.1 [ mm ] | 386.00 |
| O.1 [ mm ] | 90.00 |
| O.2 [ mm ] | 90.00 |
| O.3 [ mm ] | 128.00 |
| C.1 [ mm ] | 11.00 |
| C.2 [ mm ] | 11.00 |
| C.3 [ mm ] | 11.00 |
| Oil sealed | Yes |
Passar i 7 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| HANOMAG | 10.8 | 55C | D963B | 0 | 1981–1996 | |
| HANOMAG | 10.8 Turbo | 66 C | D963A.. | 0 | 1980–1996 | |
| HANOMAG | 10.8 Turbo | 700 D | D963A.. | 0 | 1980–1996 | |
| HANOMAG | 10.8 Turbo | 77 C | D963A.. | 0 | 1980–1996 | |
| HANOMAG | 7.2 | 44 C | D943.. | 0 | 1980–1992 | |
| HANOMAG | 9.5 | 55C | D962B | 0 | 1980–1996 | |
| HANOMAG | 9.5 | 600 D | D962K | 0 | 1980–1996 |
