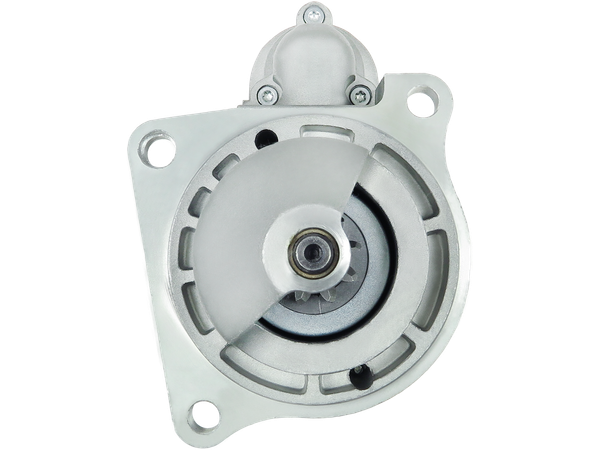

S0152
Startmotorer
STANDARD LINE
1259 kr
Köp nu
| EAN | 5901259420371 |
| Tillverkare | AS-PL |
| Ersätter | BOSCH |
| OE-nummer | 0001223504 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 12 |
| Effekt [ kW ] | 2.50 |
| Startmotors rotation | CW |
| A-storlek [ mm ] | 110.00 |
| B-storlek [ mm ] | 27.00 |
| Antal kuggar [ qty. ] | 9 |
| Antal kuggar (passar in) [ qty. ] | 9 |
| Antal hål i huvudet [ qty. ] | 3 |
| Antal gängade hål [ qty. ] | 0 |
| L.1 [ mm ] | 284.00 |
| O.1 [ mm ] | 103.00 |
| O.2 [ mm ] | 145.00 |
| O.3 [ mm ] | 103.00 |
| C.1 [ mm ] | 11.50 |
| C.2 [ mm ] | 11.50 |
| C.3 [ mm ] | 12.00 |
Passar i 50 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| CASE IH | JX 70 | JX-SERIES | 69 | 2007–2008 | ||
| FIAT | 400 | 400 | 8035.01 | 38 | 1968– | |
| FIAT | 45-66 | 66 | 8035.06.321 | 45 | 1985–1992 | |
| FIAT | 45-66 | 66 | 8035.06.200 | 45 | 1985–1992 | |
| FIAT | 45-66 | 66 | 8035.06.222 | 45 | 1985–1992 | |
| FIAT | 45-66 | 66 | 8035.06.323 | 45 | 1985–1992 | |
| FIAT | 45-66 | 66 | 8035.06.220 | 45 | 1985–1992 | |
| FIAT | 45-66S | 66 | 45 | 1996–1999 | ||
| FIAT | 450 | 400 | 8035.01 | 45 | 1968–1981 | |
| FIAT | 466 | 400 | 8035.02 | 50 | 1968–1986 | |
| FIAT | 480 | 400 | 8035.02 | 48 | 1973–1984 | |
| FIAT | 500 | 500 Serie | 8035.02 | 50 | 1971–1980 | |
| FIAT | 540 | 500 Serie | 8035.02 | 54 | 1971–1980 | |
| FIAT | 55-66 | 66 | 8035.06.222 | 54 | 1985–1992 | |
| FIAT | 55-66 | 66 | 8035.06.307 | 54 | 1985–1992 | |
| FIAT | 55-66 | 66 | 8035.06.308 | 54 | 1985–1992 | |
| FIAT | 55-66 | 66 | 8035.06.323 | 54 | 1985–1992 | |
| FIAT | 55-66 | 66 | 8035.06.206 | 54 | 1985–1992 | |
| FIAT | 55-66 | 66 | 8035.06.208 | 54 | 1985–1992 | |
| FIAT | 55-66S | 66 | 8035.06.206 | 54 | 1996–1999 | |
| FIAT | 55-66S | 66 | 8035.06.222 | 54 | 1996–1999 | |
| FIAT | 55-66S | 66 | 8035.06.308 | 54 | 1996–1999 | |
| FIAT | 55-66S | 66 | 8035.06.208 | 54 | 1996–1999 | |
| FIAT | 55-66S | 66 | 8035.06.307 | 54 | 1996–1999 | |
| FIAT | 55-88 | 88 | 8035.06.317 | 55-56 | 1989–1993 | |
| FIAT | 55-88 | 88 | 8035.06.216 | 55-56 | 1989–1993 | |
| FIAT | 55-90 | 90 | 8035.06.200 | 55 | 1984–1992 | |
| FIAT | 566 | 500 Serie | 8035.04.265 | 50 | 1982–1986 | |
| FIAT | 580 | 500 Serie | 8035.04.270 | 58 | 1978–1984 | |
| FIAT | 60-66S | 66 | 8035.05.215 | 60 | 1992–1996 | |
| FIAT | 60-66S | 66 | 8035.05.214 | 60 | 1992–1996 | |
| FIAT | 60-88 | 88 | 8035.05.214 | 60 | 1989–1993 | |
| FIAT | 60-88 | 88 | 8035.05.215 | 60 | 1989–1993 | |
| FIAT | 60-90 | 90 | 8035.05.214 | 60 | 1984–1992 | |
| FIAT | 60-90 | 90 | 8035.05.215 | 60 | 1984–1992 | |
| FIAT | 60-94 | 94 | 8035.05.215 | 60 | 1993–1996 | |
| FIAT | 60-94 | 94 | 8035.05.214 | 60 | 1993–1996 | |
| FIAT | 65-66 | 66 | 8045.06.213 | 65 | 1985–1991 | |
| FIAT | 65-66S | 66 | 8045.06.213 | 65 | 1996–1999 | |
| FIAT | 70-66, 70-66S | 66 | 8045.06.213 | 69 | 1985–1999 | |
| FIAT | L60 | L | 8035.05.215 | 60 | 1996–1998 | |
| FIAT | L60 | L | 8035.05.214 | 60 | 1996–1998 | |
| NEW HOLLAND | 5.110 | TD 5 | 112 | 2011– | ||
| NEW HOLLAND | 5.65 | TD 5 | 65 | 2011– | ||
| NEW HOLLAND | 5.75 | TD 5 | 72 | 2011– | ||
| NEW HOLLAND | 5.80 | TD 5 | 82 | 2011– | ||
| NEW HOLLAND | T4030 | T4000 | 78 | 2008– | ||
| NEW HOLLAND | TN60DA | TN-A | 59 | 2004–2008 | ||
| NEW HOLLAND | TN60SA | TN-A | 59 | 2004–2008 | ||
| NEW HOLLAND | TN70DA, TN75DA | TN-A | 72-76 | 2004–2008 |
