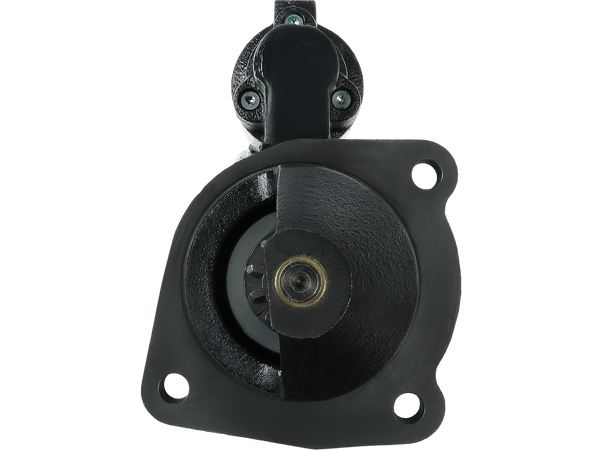

S0589
Startmotorer
STANDARD LINE
1260 kr
Köp nu
| EAN | 5902129029885 |
| Tillverkare | AS-PL |
| Ersätter | BOSCH |
| OE-nummer | 0001362064 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 12 |
| Effekt [ kW ] | 2.40 |
| Startmotors rotation | CW |
| A-storlek [ mm ] | 89.00 |
| B-storlek [ mm ] | 22.00 |
| Antal kuggar [ qty. ] | 11 |
| Antal hål i huvudet [ qty. ] | 3 |
| Antal gängade hål [ qty. ] | 0 |
| L.1 [ mm ] | 315.00 |
| O.1 [ mm ] | 90.00 |
| O.2 [ mm ] | 90.00 |
| O.3 [ mm ] | 127.00 |
| C.1 [ mm ] | 10.50 |
| C.2 [ mm ] | 10.50 |
| C.3 [ mm ] | 10.50 |
Passar i 24 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| CASE IH | 433 | D-155 | 0 | 1986–1992 | ||
| CASE IH | 533 | D-155 | 0 | 1978–1980 | ||
| CASE IH | 533A | D-155 | 0 | 1986–1992 | ||
| CASE IH | 633 | D-179 | 0 | 1986–1991 | ||
| CASE IH | 633A | D-179 | 0 | 1986–1991 | ||
| CASE IH | 633V | D-179 | 0 | 1986–1990 | ||
| CASE IH | 833 | 4-239 | 0 | 1986–1992 | ||
| CASE IH | 833 A | D-239 | 0 | 1986–1991 | ||
| INTERNATIONAL | 433 | D-155 | 0 | 1973–1986 | ||
| INTERNATIONAL | 433V | D-155 | 0 | 1973–1986 | ||
| INTERNATIONAL | 533 | D-155 | 0 | 1974–1986 | ||
| INTERNATIONAL | 533V | D-155 | 0 | 1973–1986 | ||
| INTERNATIONAL | TD-633 | D-179 | 0 | 1975–1985 | ||
| INTERNATIONAL | TD-633 | D-155 | 0 | 1975–1985 | ||
| INTERNATIONAL | TD-633A | D-155 | 0 | 1975–1985 | ||
| INTERNATIONAL | TD-633A | D-179 | 0 | 1975–1985 | ||
| INTERNATIONAL | TD-633E | D-155 | 0 | 1975–1985 | ||
| INTERNATIONAL | TD-633E | D-179 | 0 | 1975–1985 | ||
| INTERNATIONAL | TD-633V | D-179 | 0 | 1975–1985 | ||
| INTERNATIONAL | TD-633V | D-155 | 0 | 1975–1985 | ||
| INTERNATIONAL HARV. | 533 A | A-Series | D-155 | 45 | 1975–1990 | |
| INTERNATIONAL HARV. | 533 V | A-Series | D-155 | 45 | 1973–1987 | |
| INTERNATIONAL HARV. | 633 A, 633 EA | A-Series | D-179 | 52 | 1975–1989 | |
| INTERNATIONAL HARV. | 633 V | A-Series | D-179 | 52 | 1976–1987 |
