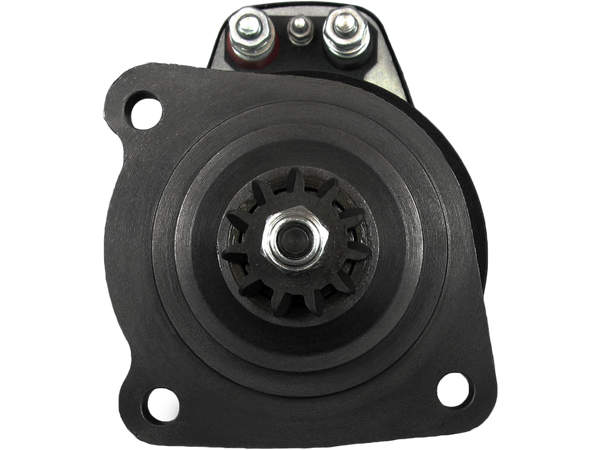

S0363
Startmotorer
STANDARD LINE
2417 kr
Köp nu
| EAN | 5901259467956 |
| Tillverkare | AS-PL |
| Ersätter | BOSCH |
| OE-nummer | 0001417025 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 24 |
| Effekt [ kW ] | 6.60 |
| Startmotors rotation | CW |
| A-storlek [ mm ] | 89.00 |
| B-storlek [ mm ] | 47.00 |
| Antal kuggar [ qty. ] | 11 |
| Antal kuggar (passar in) [ qty. ] | 11 |
| Antal hål i huvudet [ qty. ] | 3 |
| Antal gängade hål [ qty. ] | 0 |
| L.1 [ mm ] | 406.00 |
| O.1 [ mm ] | 128.00 |
| O.2 [ mm ] | 90.00 |
| O.3 [ mm ] | 90.00 |
| Oil sealed | Yes |
Passar i 18 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| FORD | 1317 9.6 | Cargo | F6L413F | 0 | 1982– | |
| FORD | 1320 9.6 | Cargo | F6L413FZ | 0 | 1982– | |
| FORD | 1517 9.6 | Cargo | F6L413F | 0 | 1982– | |
| FORD | 1520 9.6 | Cargo | F6L413FZ | 0 | 1982–1986 | |
| FORD | 1617 9.6 | Cargo | F6L413F | 0 | 1982–1987 | |
| FORD | 1620 9.6 | Cargo | F6L413FZ | 0 | 1982–1987 | |
| FORD | 2420 9.6 | Cargo | F6L413FZ | 0 | 1982– | |
| FORD | 2817 9.6 | Cargo | F6L413F | 0 | 1982– | |
| FORD | 2820 S 9.6 | Cargo | F6L413FZ | 0 | 1984–1987 | |
| FORD | 3020 9.6 | Cargo | F6L413FZ | 0 | 1982– | |
| FORD | 3220 9.6 | Cargo | F6L413FZ | 0 | 1982–1987 | |
| FORD | 9.6 | Cargo | F6L413 | 0 | 1983–2000 | |
| IVECO | 170-23 AH,180-23 AH | P/PA | F8L513 | 237 | 1991–1993 | |
| IVECO | 170-23 AHW,180-23 AHW | P/PA | F8L513 | 237 | 1991–1993 | |
| IVECO | 170-23 ANW | P/PA-Haubenfahrzeuge | F8L513 | 237 | 1991–1993 | |
| IVECO | 190-32 AHW | P/PA | F10L413F | 320 | 1983–1985 | |
| IVECO | 260-25 AH | P/PA | F8L413F | 256 | 1984–1986 | |
| IVECO | 260-25 AHB | P/PA | F8L413F | 256 | 1984–1986 |
