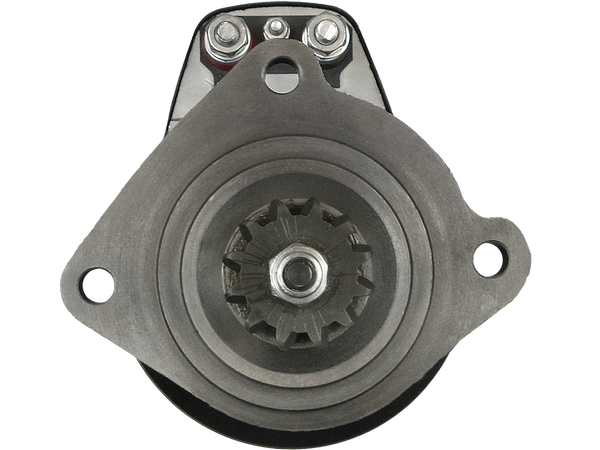

S0364
Startmotorer
STANDARD LINE
2210 kr
Köp nu
| EAN | 5901259467963 |
| Tillverkare | AS-PL |
| Ersätter | BOSCH |
| OE-nummer |
3EFFE: STRS728 AINDE: CGB-11630 BOSCH: 0001417030 DELCO: 19024068 ELECTROLOG: STR10135 ISKRA / LETRIKA: IS9081 KUHNER: 255099 MAHLE: MS 461 WAI / TRANSPO: UNIT BOM 120-6285 WOODAUTO: STR50188 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 24 |
| Effekt [ kW ] | 6.60 |
| Startmotors rotation | CW |
| A-storlek [ mm ] | 89.00 |
| B-storlek [ mm ] | 48.00 |
| Antal kuggar [ qty. ] | 12 |
| Antal kuggar (passar in) [ qty. ] | 12 |
| Antal hål i huvudet [ qty. ] | 3 |
| Antal gängade hål [ qty. ] | 0 |
| L.1 [ mm ] | 410.00 |
| O.1 [ mm ] | 90.00 |
| O.2 [ mm ] | 127.00 |
| O.3 [ mm ] | 90.00 |
| C.1 [ mm ] | 11.00 |
| C.2 [ mm ] | 11.00 |
| C.3 [ mm ] | 11.00 |
| Oil sealed | Yes |
Passar i 4 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| BAUDOUIN | 6P15 | 0 | 1981– | |||
| BAUDOUIN | DNP 4 AN | 0 | 1982– | |||
| BAUDOUIN | P15-2 AN | 0 | 1984– | |||
| BAUDOUIN | P15-2 SR | 0 | 1984– |
