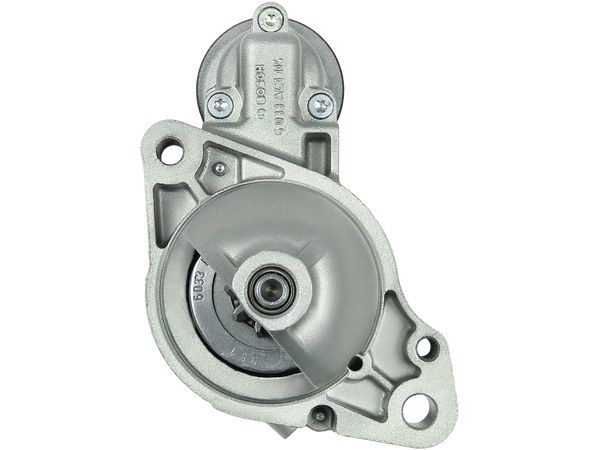

S0454PR
Startmotorer
PREMIUM LINE
1034 kr
Köp nu
| EAN | 5902129084570 |
| Tillverkare | AS-PL |
| Ersätter | BOSCH |
| OE-nummer |
3EFFE: STRL673 AUTOELECTRO: AEY1720 BOSCH: 0001223018, 0001223019, 0986024120 CARGO: 114776, F032114776 CASCO: CST10466, CST10466AS, CST10466ES, CST10466GS, CST10466OS, CST10466RS CEVAM: 3116 DELCO: DRS0224, DS1334 EAI: 12156 ELECTROLOG: STR1764 ELSTOCK: 25-3276 KRAUF: STB0222 KUHNER: 254414, 254414B, 254414R LUCAS: LRS01720, LRS1720 POWERMAX: 88214499 PSH: 200.524.092, S131.446 SANDO: 6010466 SIDAT: S12BH0598A2 VW: 057911023E, 057911023EX WAI / TRANSPO: 32720R, UNIT BOM 120-6361 WOODAUTO: BOS0001223019, STR50626 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 12 |
| Effekt [ kW ] | 2.30 |
| Startmotors rotation | CW |
| A-storlek [ mm ] | 74.00 |
| B-storlek [ mm ] | 26.00 |
| Antal kuggar [ qty. ] | 9 |
| Antal kuggar (passar in) [ qty. ] | 9 |
| Antal hål i huvudet [ qty. ] | 3 |
| Antal gängade hål [ qty. ] | 2 |
| L.1 [ mm ] | 247.00 |
| O.1 [ mm ] | 21.50 |
| O.2 [ mm ] | 121.00 |
| O.3 [ mm ] | 108.50 |
| C.1 [ mm ] | M8x1.25 |
| C.3 [ mm ] | M10x1.5 |
Passar i 10 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| AUDI | 4.0 TDI quattro | A8 D3 (4E2, 4E8) | ASE | 275 | Diesel | 2003–2005 |
| AUDI | 4.2 TDI quattro | A8 D3 (4E2, 4E8) | BVN | 326 | Diesel | 2005–2010 |
| AUDI | 4.2 TDI quattro | A8 D3 (4E2, 4E8) | BMC | 320 | Diesel | 2005–2005 |
| AUDI | 4.2 TDI quattro | Q7 (4LB) | BTR | 326 | Diesel | 2007–2009 |
| AUDI | 4.2 TDI quattro | Q7 (4LB) | CCFC | 340 | Diesel | 2009–2015 |
| AUDI | 4.2 TDI quattro | Q7 (4LB) | CCFA | 340 | Diesel | 2009–2015 |
| AUDI | 4.2 TDI quattro | Q7 Van (4LB) | CCFC | 340 | Diesel | 2007–2015 |
| AUDI | 4.2 TDI quattro | Q7 Van (4LB) | CCFA | 340 | Diesel | 2007–2015 |
| AUDI | 4.2 TDI quattro | Q7 Van (4LB) | BTR | 326 | Diesel | 2007–2009 |
| VW | 4.2 V8 TDI | TOUAREG (7P5, 7P6) | CKDA | 340 | Diesel | 2010–2018 |
