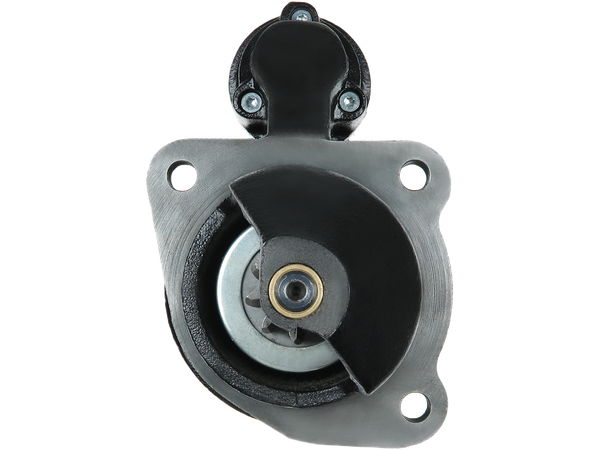

S0702S
Startmotorer
STANDARD LINE
1261 kr
Köp nu
| EAN | 5902129098270 |
| Tillverkare | AS-PL |
| Ersätter | BOSCH |
| OE-nummer | 0001368069 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 24 |
| Effekt [ kW ] | 4.00 |
| Startmotors rotation | CW |
| A-storlek [ mm ] | 89.00 |
| B-storlek [ mm ] | 48.50 |
| Antal kuggar [ qty. ] | 9 |
| Antal hål i huvudet [ qty. ] | 3 |
| Antal gängade hål [ qty. ] | 0 |
| L.1 [ mm ] | 341.00 |
| O.1 [ mm ] | 89.50 |
| O.2 [ mm ] | 89.50 |
| O.3 [ mm ] | 127.00 |
| C.1 [ mm ] | 11.00 |
| C.2 [ mm ] | 11.00 |
| C.3 [ mm ] | 11.00 |
Passar i 5 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| CASE IH | 1080 | [6T-590 | 0 | 1985–1994 | ||
| CASE IH | 1088 | 6T-590 | 0 | 1989–1992 | ||
| CASE IH | 688 | 4T-390 | 0 | 1987–1992 | ||
| CASE IH | 888 | 0 | 1987–1992 | |||
| CASE IH | 988 | 6T-590 | 0 | 1996–2005 |
