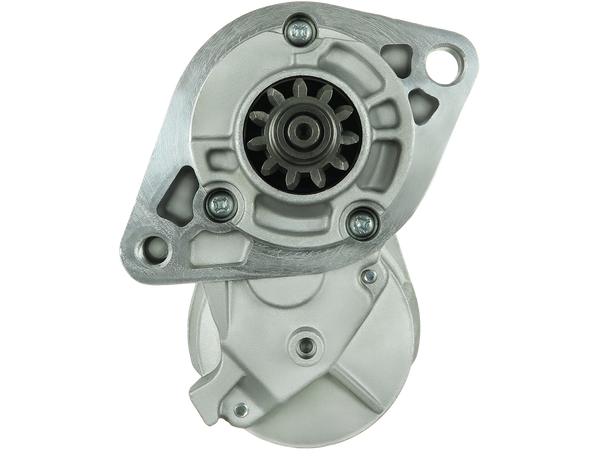

S6021
Startmotorer
STANDARD LINE
1262 kr
Köp nu
| EAN | 5901259423600 |
| Tillverkare | AS-PL |
| Ersätter | DENSO |
| OE-nummer |
3EFFE: PRSS067, PRSS926, STRS067, STRS926 AINDE: 25-3388CT, CGB-23965 ALANKO: 10438145 ANDEL: ANM16185X APEC: ASM1600 AS-PL: S6021 AUTO MAGNETO: AM-2776 AUTOELECTRO: AET1155 BOSCH: 0986020591, 0986024320 BTS TURBO: S511208 CARGO: 113938, 115973, F032113938, F032115973 CASCO: CST40239AS, CST40239GS, CST40379AS CEVAM: 9728 DELCO: DRS0434, DRS3965 DENSO: 228000-4930, 228000-5340, 228000-5341, 228000-5342, 228000-5650, 228000-5651, 228000-5652, 428000-0290, 428000-0291, 428000-1370, 428000-1371, 428000-3110, 428000-3111, 428080-3111, DSN1229 DRI: 335224112 DTS: S-70020 EAI: 11982 ELECTROLOG: STR6305 ELSTOCK: 25-3388, 25-4046 ERA: 220789 EUROTEC: 11040770 FARCOM: 106564 FRIESEN: 8052287 GM: SG1000 HC PARTS: CS1447, JS1155 HELLA: 8EA012527-341, 8EA012527-342, 8EA737760-001 HERTH+BUSS: J5212087, J5212113 KRAUF: STN1155, STN1447 KUHNER: 101447, 201155 LAUBER: 22.1155 LUCAS: LRS02217, LRS02374, LRS2217, LRS2374 MAGNETI MARELLI: 944280522870, MRS52287 MEAT & DORIA: 5040191 NAPA: NPANSM1600 POWERMAX: 88212202, 88212807 PRESTOLITE: S1402D PSH: 190.575.112.050, 190.575.112.260, 190.930.112.050, 190.930.112.058, S131.065, S131.117, S144.833 QUINTON HAZELL: QRS2048 REAL: 20432932BN, 20432932OE, 20432973BN RNL: RNL1155JS SANDO: 6040239.0, 6040239.1, 6040379.0 SIDAT: S12DE0137A2 SIOM: MAV422390, MAV422390A, MAV423790A SNRA: TO9050, TO9066 SOVEREIGN: SS474, SS481 STARDAX: STX200339, STX200468, STX210245, STX210245R STARTCAR: 982ST11 TMI: ST01571 TOYOTA: 28100-30050, 28100-30051, 28100-3005184, 28100-30070, 28100-30071, 28100-30080, 28100-30081, 28100-67040, 28100-67070, 28100-67090 UNIPOINT: F042S0H078 VALEO: 458865 WAI / TRANSPO: 33217N, 33217R WOODAUTO: DENDSN1229, STR70020, WOOSTR70020 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 12 |
| Effekt [ kW ] | 2.70 |
| Startmotors rotation | CW |
| A-storlek [ mm ] | 82.50 |
| B-storlek [ mm ] | 18.50 |
| Antal kuggar [ qty. ] | 11 |
| Antal hål i huvudet [ qty. ] | 2 |
| Antal gängade hål [ qty. ] | 1 |
| L.1 [ mm ] | 259.00 |
| O.1 [ mm ] | 128.00 |
| C.1 [ mm ] | M12x1.25 |
| C.2 [ mm ] | 14.00 |
Passar i 39 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| TOYOTA | 2.5 D-4D | HIACE V Van (TRH2__, KDH2__, LH2__, GDH2__) | 2KD-FTV | 95 | Diesel | 2006– |
| TOYOTA | 2.5 D-4D (KDH200, KDH202, KDH212, KDH222) | HIACE V Van (TRH2__, KDH2__, LH2__, GDH2__) | 2KD-FTV | 117 | Diesel | 2006– |
| TOYOTA | 2.5 D-4D (KDH202) | HIACE / COMMUTER V Bus (TRH2__, KDH2__, LH2__, GDH2__) | 2KD-FTV | 102 | Diesel | 2006– |
| TOYOTA | 2.5 D-4D (KDH20_, KDH21_, KDH22_, KDH200, KDH220) | HIACE V Van (TRH2__, KDH2__, LH2__, GDH2__) | 2KD-FTV | 102 | Diesel | 2004– |
| TOYOTA | 2.5 D-4D (KDN145, KDN150) | HILUX VI Pickup (_N1_) | 2KD-FTV | 88 | Diesel | 2001–2005 |
| TOYOTA | 2.5 D-4D (KLH12) | HIACE IV Bus (__H1_, __H2_) | 2KD-FTV | 88 | Diesel | 2001–2006 |
| TOYOTA | 2.5 D-4D (KLH12, KLH22) | HIACE IV Bus (__H1_, __H2_) | 2KD-FTV | 102 | Diesel | 2001–2006 |
| TOYOTA | 2.5 D-4D (KLH12, KLH22) | HIACE IV Bus (__H1_, __H2_) | 2KD-FTV | 117 | Diesel | 2006–2012 |
| TOYOTA | 2.5 D-4D (KLH12, KLH22) | HIACE IV Bus (__H1_, __H2_) | 2KD-FTV | 95 | Diesel | 2006–2012 |
| TOYOTA | 2.5 D-4D (KLH12, KLH22) | HIACE IV Van (__H1_, __H2_) | 2KD-FTV | 102 | Diesel | 2001–2006 |
| TOYOTA | 2.5 D-4D (KLH12, KLH22) | HIACE IV Van (__H1_, __H2_) | 2KD-FTV | 95 | Diesel | 2006–2012 |
| TOYOTA | 2.5 D-4D (KLH12, KLH22) | HIACE IV Van (__H1_, __H2_) | 2KD-FTV | 117 | Diesel | 2006–2012 |
| TOYOTA | 2.5 D-4D (KLH12, KLH22) | HIACE IV Van (__H1_, __H2_) | 2KD-FTV | 88 | Diesel | 2001–2006 |
| TOYOTA | 2.5 D-4D 4WD (KDN165, KDN170, KDN190) | HILUX VI Pickup (_N1_) | 2KD-FTV | 102 | Diesel | 2001–2005 |
| TOYOTA | 2.5 D-4D 4WD (KLH18) | HIACE IV Bus (__H1_, __H2_) | 2KD-FTV | 117 | Diesel | 2006–2012 |
| TOYOTA | 2.5 D-4D 4WD (KLH18) | HIACE IV Bus (__H1_, __H2_) | 2KD-FTV | 102 | Diesel | 2001–2006 |
| TOYOTA | 2.5 D-4D 4WD (KLH18, KLH28) | HIACE IV Van (__H1_, __H2_) | 2KD-FTV | 102 | Diesel | 2001–2006 |
| TOYOTA | 2.5 D-4D 4WD (KLH18, KLH28) | HIACE IV Van (__H1_, __H2_) | 2KD-FTV | 88 | Diesel | 2001–2004 |
| TOYOTA | 2.5 D-4D 4WD (KLH28, KLH18) | HIACE IV Van (__H1_, __H2_) | 2KD-FTV | 117 | Diesel | 2006–2012 |
| TOYOTA | 2.5 D-4D 4WD (KUN25_) | HILUX VII Pickup (_N1_, _N2_, _N3_) | 2KD-FTV | 128 | Diesel | 2004–2005 |
| TOYOTA | 2.5 D4d (KDY220_, KDY230_, KDY220R, KDY230R) | DYNA Platform/Chassis (KD_, LY_, _Y2_, _U3_, _U4_, _U6_, _U8 | 2KD-FTV | 88 | Diesel | 2001– |
| TOYOTA | 2.5 D4d (KDY230, KDY250) | DYNA Platform/Chassis (KD_, LY_, _Y2_, _U3_, _U4_, _U6_, _U8 | 2KD-FTV | 102 | Diesel | 2001– |
| TOYOTA | 2.8 D-4D (GDJ150, GDJ155) | LAND CRUISER PRADO (_J15_) | 1GD-FTV | 200 | Diesel | 2018– |
| TOYOTA | 2.8 D-4D (GDJ150_, GDJ155_, GDJ150, GDJ151) | LAND CRUISER PRADO (_J15_) | 1GD-FTV | 177 | Diesel | 2015– |
| TOYOTA | 2.8 D-4D (GDJ155, GDJ150) | LAND CRUISER PRADO (_J15_) | 1GD-FTV | 204 | Diesel | 2020– |
| TOYOTA | 3.0 D (KZJ120) | LAND CRUISER PRADO (_J12_) | 1KZ-TE | 125 | Diesel | 2002–2009 |
| TOYOTA | 3.0 D-4D (KDJ120, KDJ125) | LAND CRUISER PRADO (_J12_) | 1KD-FTV | 163 | Diesel | 2002–2009 |
| TOYOTA | 3.0 D-4D (KDJ120, KDJ125) | LAND CRUISER PRADO (_J12_) | 1KD-FTV | 166 | Diesel | 2004–2009 |
| TOYOTA | 3.0 D-4D (KDJ120, KDJ125, KDJ121) | LAND CRUISER PRADO (_J12_) | 1KD-FTV | 173 | Diesel | 2002–2010 |
| TOYOTA | 3.0 D-4D (KDJ120_) | LAND CRUISER PRADO (_J12_) | 1KD-FTV | 204 | Diesel | 2006–2009 |
| TOYOTA | 3.0 D-4D (KDJ150_, KDJ150, KDJ155) | LAND CRUISER PRADO (_J15_) | 1KD-FTV | 173 | Diesel | 2009– |
| TOYOTA | 3.0 D-4D (KDJ155_, KDJ150_, KDJ150R, KDJ155R) | LAND CRUISER PRADO (_J15_) | 1KD-FTV | 190 | Diesel | 2009– |
| TOYOTA | 3.0 D-4D 4WD (KDJ90_, KDJ95_, KDJ90W, KDJ95W) | LAND CRUISER 90 (_J9_) | 1KD-FTV | 163 | Diesel | 2000–2002 |
| TOYOTA | 3.0 D4d (KDY221, KDY231) | DYNA Platform/Chassis (KD_, LY_, _Y2_, _U3_, _U4_, _U6_, _U8 | 1KD-FTV | 136 | Diesel | 2009– |
| TOYOTA | 3.0 D4d (KDY221, KDY231, KDY251, KDY261) | DYNA Platform/Chassis (KD_, LY_, _Y2_, _U3_, _U4_, _U6_, _U8 | 1KD-FTV | 144 | Diesel | 2009– |
| TOYOTA | 3.0 D4d (KDY261_, KDY251_, KDY231_, KDY221_, KDY221R,... | DYNA Platform/Chassis (KD_, LY_, _Y2_, _U3_, _U4_, _U6_, _U8 | 1KD-FTV | 109 | Diesel | 2006– |
| TOYOTA | 3.0 D4d 4WD (KDJ155, KDJ150) | LAND CRUISER VAN (_J15_) | 1KD-FTV | 190 | Diesel | 2011– |
| TOYOTA | 3.0 TD (KZJ90, KZJ95) | LAND CRUISER 90 (_J9_) | 1KZ-TE | 140 | Diesel | 1995–2000 |
| TOYOTA | 3.0 TD (KZJ90_, KZJ95_, KZJ90R, KZJ95R, KZJ90W, KZJ95W) | LAND CRUISER 90 (_J9_) | 1KZ-TE | 125 | Diesel | 1996–2002 |
