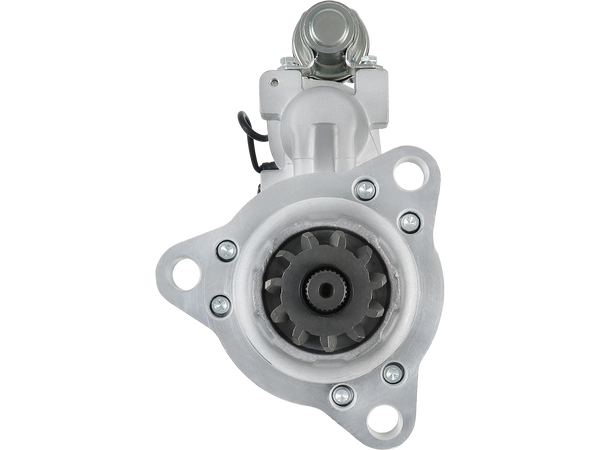

S1027 — Startmotorer
STANDARD LINE
2177 kr
inkl. moms
✅ I lager — skickas inom 1–2 dagar
🔒 Säker betalning: Klarna, Stripe, kort
🚚 Leverans 1–3 arbetsdagar
♻ 14 dagars öppet köp
| EAN | 5901259443196 |
| Tillverkare | AS-PL |
| Ersätter | DELCO |
| OE-nummer | 8200330 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 24 |
| Effekt [ kW ] | 8.20 |
| Startmotors rotation | CW |
| A-storlek [ mm ] | 92.00 |
| B-storlek [ mm ] | 46.00 |
| Antal kuggar [ qty. ] | 11 |
| Antal kuggar (passar in) [ qty. ] | 11 |
| Antal hål i huvudet [ qty. ] | 3 |
| Antal gängade hål [ qty. ] | 0 |
| L.1 [ mm ] | 418.00 |
| O.1 [ mm ] | 127.00 |
| O.2 [ mm ] | 127.00 |
| O.3 [ mm ] | 127.00 |
| C.1 [ mm ] | 16.50 |
| C.2 [ mm ] | 16.50 |
| C.3 [ mm ] | 16.50 |
Vanliga frågor
Passar denna del min bil?
Alla delar är matchade mot fordonsdatabasen. Se fordonstabellen nedan för exakta kompatibiliteter. Använd registreringsnummersöken i headern för att vara helt säker.
Vad är leveranstiden?
Normalt 2–5 arbetsdagar. Vi skickar direkt från Europas största lager av startmotorer och generatorer.
Kan jag returnera om den inte passar?
Ja. Du har 14 dagars öppet köp (ångerrätt). Dessutom 3 års reklamationsrätt vid fabrikationsfel.
Passar i 56 fordon
Kontrollera att ditt fordon finns i listan. Använd Ctrl+F för att söka.
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| CASE IH | 921E | M11 | 0 | 2007–2011 | ||
| CASE IH | STX375 | QSX15 | 0 | 2001–2005 | ||
| CASE IH | STX425 | QSX15 | 0 | 2001–2005 | ||
| CASE IH | STX450 | QSX15 | 0 | 2002–2005 | ||
| CASE IH | STX480 | QSX15 | 0 | 2006–2007 | ||
| CASE IH | STX500 | QSX15 | 0 | 2001–2006 | ||
| CASE IH | STX530 | QSX15 | 0 | 2006–2007 | ||
| CASE IH | 14.9 | Steiger 480 | QSX15 | 0 | 2007–2008 | |
| CASE IH | 14.9 | Steiger 530 | QSX15 | 0 | 2007–2008 | |
| CASE IH | 15.0 | Steiger 535 | QSX15 | 0 | 2008–2012 | |
| CUMMINS | 10.8 | CFP11E-F10 | QSM11 | 0 | 2004–2020 | |
| CUMMINS | 10.8 | CFP11E-F20 | QSM11 | 0 | 2004–2020 | |
| KENWORTH | K500 | C13 | 0 | 2008–2016 | ||
| KENWORTH | K500 | ISX15 | 0 | 2008–2016 | ||
| KENWORTH | 15.2 | K500 | C15 | 0 | 2008–2016 | |
| MACK | CH Series | E7 | 0 | 2003–2007 | ||
| MACK | CH Series | EM7 | 0 | 2003–2007 | ||
| MACK | CL Series | E7 | 0 | 2003–2006 | ||
| MACK | CV Series | E7 | 0 | 2003–2007 | ||
| MACK | CV Series | EM7 | 0 | 2003–2007 | ||
| MACK | DM | E7 | 0 | 2003–2006 | ||
| MACK | DM Series | EM7 | 0 | 2003–2006 | ||
| MACK | DMM Series | EM7 | 0 | 2003–2006 | ||
| MACK | DMM Series | E7 | 0 | 2003–2006 | ||
| MACK | FCM Series | EM7 | 0 | 2003–2006 | ||
| MACK | FCM Series | E7 | 0 | 2003–2006 | ||
| MACK | FDM Series | EM7 | 0 | 2003–2006 | ||
| MACK | FDM Series | E7 | 0 | 2003–2006 | ||
| MACK | Granite Series | E7 | 0 | 2003–2006 | ||
| MACK | LE Series | E7 | 0 | 2003–2006 | ||
| MACK | LE Series | E7G | 0 | 2003–2006 | ||
| MACK | RD Series | EM7 | 0 | 2003–2006 | ||
| MACK | RD Series | E7 | 0 | 2003–2006 | ||
| MACK | RL Series | E7 | 0 | 2003–2006 | ||
| MACK | RL Series | EM7 | 0 | 2003–2006 | ||
| MACK | RM Series | E7 | 0 | 2003–2006 | ||
| MACK | RM Series | EM7 | 0 | 2003–2006 | ||
| MACK | RS Series | EM7 | 0 | 2003–2006 | ||
| MACK | RS Series | E7 | 0 | 2003–2006 | ||
| MACK | RW Series | EM7 | 0 | 2003–2006 | ||
| MACK | RW Series | E7 | 0 | 2003–2006 | ||
| MCI | Engine | ISX | 0 | 1998–2003 | ||
| MCI | 10.8 | Engine | M11 | 0 | 2004–2007 | |
| MCI | 14.0 | Engine | N14 | 0 | 1998–2003 | |
| NEW HOLLAND | 12.9 | T9030 | 0 | 2006–2012 | ||
| NEW HOLLAND | 12.9 | T9040 | 0 | 2006–2012 | ||
| NEW HOLLAND | 12.9 | T9050 | 0 | 2006–2012 | ||
| NEW HOLLAND | 15.0 | T9060 | QSX | 0 | 2006–2012 | |
| NEW HOLLAND | 15.0 | TJ375 | QSX | 0 | 2002–2006 | |
| NEW HOLLAND | 15.0 | TJ425 | QSX | 0 | 2002–2006 | |
| NEW HOLLAND | 15.0 | TJ450 | QSX | 0 | 2002–2005 | |
| NEW HOLLAND | 15.0 | TJ480 | QSX | 0 | 2006–2007 | |
| NEW HOLLAND | 15.0 | TJ500 | QSX | 0 | 2004–2005 | |
| NEW HOLLAND | 15.0 | TJ530 | QSX | 0 | 2006–2007 | |
| PREVOST | 14.0 | Engine | 0 | 2001–2010 | ||
| PREVOST | 15.8 | Engine | C16 | 0 | 1999–2007 |
