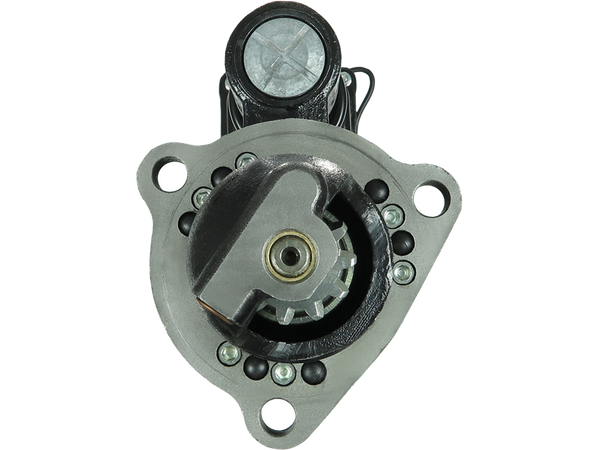

S1131
Startmotorer
STANDARD LINE
2879 kr
Köp nu
| EAN | 5902129038863 |
| Tillverkare | AS-PL |
| Ersätter | DELCO |
| OE-nummer |
3EFFE: STRJ036, STRS769 AINDE: CGB-1501 AS-PL: UD12380S AUTO MAGNETO: AM-2410 CASE: 121555C91, 201295T91, 262762C91, 412732C91, 431481C91, 431481R91, 510275C91, 522458C91, 523579C91, 530692C91, 777525C91, 782685C91, 786086C91, 875755R91 CATERPILLAR: 0R5347, 3T2654, 3T2879, 3T3154, 4L9547, 4N0956, 4N1064, 5L4160, 5L4168, 5L4169, 5L5667, 5L5867, 8C3592, 8C3593, 8L8206, 9L6200, 9N0716, 9N0721, 9N716, SL8206 CUMMINS: 3603863RX, 3675115RX, 3913017 DELCO: 10461045, 10461178, 1108801, 1108802, 1108823, 1109800, 1109807, 1109808, 1114001, 1114002, 1114004, 1114025, 1114026, 1114027, 1114051, 1114054, 1114055, 1114056, 1114058, 1114064, 1114067, 1114072, 1114073, 1114074, 1114076, 1114078, 1114081, 1114084, 1114086, 1114087, 1114088, 1114090, 1114091, 1114092, 1114095, 1114096, 1114098, 1114099, 1114102, 1114107, 1114111, 1114113, 1114115, 1114118, 1114119, 1114122, 1114124, 1114126, 1114128, 1114130, 1114133, 1114140, 1114143, 1114145, 1114147, 1114148, 1114150, 1114157, 1114164, 1114165, 1114170, 1114172, 1114179, 1114180, 1114185, 1114186, 1114187, 1114188, 1114189, 1114193, 1114194, 1114197, 1114700, 1114720, 1114722, 1114723, 1114725, 1114726, 1114741, 1114747, 1114749, 1114750, 1114751, 1114752, 1114761, 1114766, 1114769, 1114795, 1114811, 1114812, 1114814, 1114815, 1114816, 1114819, 1114820, 1114889, 1114890, 1114891, 1114892, 1114893, 1114894, 1114895, 1114896, 1114897, 1114898, 1114899, 1114900, 1114901, 1114906, 1114913, 1114928, 1114937, 1114941, 1114961, 1114965, 1114978, 1114984, 1114985, 1990224, 1990323 DIXIE: 201-40101, 201-40101R, S-1107 ELECTROLOG: STR2613 FORD: C3TZ11001A, C5TF11000A, C5TZ11002C, D3TF11001BA, D4TZ11002A, D4TZ11002B JOHN DEERE: RE10321, TY6723 KUHNER: 254725, 254725K, 60827, 60827D, 60827M, 60827P MACK: 8MJ4172P1, 8MJ4172T, 8MJ417P1, 8MJ498P3 MASSEY FERGUSON: 536-011-M91 POWERMAX: 88212867 PRESTOLITE: M0017268ME, M125R2001SEP, MS1-401A ROBERT'S: 140-40773 SIOM: MAV621120, MAV621230, MAV621240 VOLVO: 3945661 WAI / TRANSPO: 3974N, 3974R WILSON: 91-01-3701, 91-01-3701N WOODAUTO: STR80173 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 12 |
| Effekt [ kW ] | 7.50 |
| Startmotors rotation | CW |
| A-storlek [ mm ] | 92.00 |
| B-storlek [ mm ] | 47.00 |
| Antal kuggar [ qty. ] | 11 |
| Antal hål i huvudet [ qty. ] | 3 |
| Antal gängade hål [ qty. ] | 0 |
| L.1 [ mm ] | 510.00 |
| O.1 [ mm ] | 127.00 |
| O.2 [ mm ] | 127.00 |
| O.3 [ mm ] | 127.00 |
| C.1 [ mm ] | 16.00 |
| C.2 [ mm ] | 16.00 |
| C.3 [ mm ] | 16.00 |
Passar i 531 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| ALLIS CHALMERS | 10000 | 0 | 1960–1971 | |||
| ALLIS CHALMERS | 11000 | 0 | 1960–1971 | |||
| ALLIS CHALMERS | 3400 | 0 | 1965–1978 | |||
| ALLIS CHALMERS | 3500 | 0 | 1971–1978 | |||
| ALLIS CHALMERS | 670 | 0 | 1979–1986 | |||
| CASE IH | Cranes 1000 | DD-4-71 | 0 | 1970–1984 | ||
| CASE IH | Cranes 1500 | DD-4-71 | 0 | 1976–1984 | ||
| CASE IH | Cranes 2000 | DD-4-71 | 0 | 1979–1984 | ||
| CASE IH | Cranes 2500 | DD-4-71 | 0 | 1979–1984 | ||
| CASE IH | Cranes 40C | DD-8V-71 | 0 | 1970–1979 | ||
| CASE IH | Cranes 5500 | DD-4-71 | 0 | 1981–1984 | ||
| CASE IH | Cranes 650CA | DD-4-71 | 0 | 1979–1984 | ||
| CASE IH | Cranes 800 | DD-4-71 | 0 | 1970–1984 | ||
| CASE IH | Cranes 85M R2 | DD-4-71 | 0 | 1979–1979 | ||
| CATERPILLAR | 3406 | 3406 | 0 | 1970–1984 | ||
| CATERPILLAR | 3406 | 893CL | 0 | 1974–1984 | ||
| CATERPILLAR | 3408 | 3408 | 0 | 1970–1993 | ||
| CATERPILLAR | 3412 | 3412 | 0 | 1986–1984 | ||
| CHAMPION | 562D | 0 | 1975–1992 | |||
| CHAMPION | 600 D | 0 | 1975–1992 | |||
| CHAMPION | 715 | DDAD-4-71 | 0 | 1976–1983 | ||
| CHAMPION | 715A | DDAD-4-71 | 0 | 1976–1983 | ||
| CHAMPION | 720 | DD-6-71 | 0 | 1975–1985 | ||
| CHAMPION | 720A | DD-6-71 | 0 | 1975–1985 | ||
| CHAMPION | 740 | N-855C | 0 | 1975–1985 | ||
| CHAMPION | 740 | DD-6-71 | 0 | 1975–1985 | ||
| CHAMPION | 740A | LT-10C | 0 | 1983–1984 | ||
| CHAMPION | 760 | DD-6-71 | 0 | 1975–1985 | ||
| CHEVROLET | D9K | 8V-71 | 0 | 1979–1985 | ||
| CHEVROLET | D9K | 6V-92T | 0 | 1979–1985 | ||
| CHEVROLET | D9K | 8V-71NE | 0 | 1979–1985 | ||
| CHEVROLET | D9K | 3406 | 0 | 1979–1980 | ||
| CHEVROLET | D9K | 8V-71T | 0 | 1979–1985 | ||
| CHEVROLET | D9K | 6V-92TTA | 0 | 1979–1985 | ||
| CHEVROLET | D9K | NTC | 0 | 1979–1985 | ||
| CHEVROLET | D9K | 6V-92 | 0 | 1979–1985 | ||
| CHEVROLET | D9K | 8V-71N | 0 | 1979–1985 | ||
| CHEVROLET | D9K | 6V-92TA | 0 | 1979–1985 | ||
| CHEVROLET | D9L | 8V-71NE | 0 | 1979–1985 | ||
| CHEVROLET | D9L | 8V-71T | 0 | 1979–1985 | ||
| CHEVROLET | D9L | 6V-92TA | 0 | 1979–1988 | ||
| CHEVROLET | D9L | NTC | 0 | 1979–1985 | ||
| CHEVROLET | D9L | 6V-92T | 0 | 1979–1985 | ||
| CHEVROLET | D9L | 8V-71N | 0 | 1979–1985 | ||
| CHEVROLET | D9L | 8V-71 | 0 | 1979–1985 | ||
| CHEVROLET | D9L | 6V-92TTA | 0 | 1979–1985 | ||
| CHEVROLET | D9L Titan | 6V-92 | 0 | 1979–1985 | ||
| CHEVROLET | DC90 | NTC | 0 | 1971–1978 | ||
| CHEVROLET | DH90 | 8V-71 | 0 | 1971–1978 | ||
| CHEVROLET | DH90 | 8V-71NE | 0 | 1971–1978 | ||
| CHEVROLET | DH90 | 8V-71T | 0 | 1971–1978 | ||
| CHEVROLET | DH90 | 8V-71N | 0 | 1971–1978 | ||
| CHEVROLET | DI90 | 6V-71N | 0 | 1971–1978 | ||
| CHEVROLET | DI90 | 6V-71 | 0 | 1971–1978 | ||
| CHEVROLET | DI90 | 6V-71NE | 0 | 1971–1978 | ||
| CHEVROLET | DI90 | 6V-71T | 0 | 1971–1978 | ||
| CHEVROLET | DJ90 | 6V-92TA | 0 | 1974–1978 | ||
| CHEVROLET | DJ90 | 6V-92T | 0 | 1974–1978 | ||
| CHEVROLET | DJ90 | 6V-92TTA | 0 | 1974–1978 | ||
| CHEVROLET | DJ90 | 6V-92 | 0 | 1974–1978 | ||
| CHEVROLET | DN90 | NHC-250 | 0 | 1971–1974 | ||
| CHEVROLET | DN90 | NH-230 | 0 | 1971–1974 | ||
| CHEVROLET | Engine | 8V-71T | 0 | 1971–1985 | ||
| CHEVROLET | Engine | 6V-92 | 0 | 1974–1985 | ||
| CHEVROLET | Engine | 6V-71T | 0 | 1967–1978 | ||
| CHEVROLET | Engine | VT-350 | 0 | 1975–1978 | ||
| CHEVROLET | Engine | NTC-290 | 0 | 1973–1983 | ||
| CHEVROLET | Engine | L10 | 0 | 1983–1985 | ||
| CHEVROLET | Engine | 6V-92TA | 0 | 1974–1985 | ||
| CHEVROLET | Engine | 3408 | 0 | 1977–1978 | ||
| CHEVROLET | Engine | NTC-335 | 0 | 1969–1974 | ||
| CHEVROLET | Engine | NHC-250 | 0 | 1971–1974 | ||
| CHEVROLET | Engine | 8V-71N | 0 | 1971–1985 | ||
| CHEVROLET | Engine | 6V-92T | 0 | 1974–1985 | ||
| CHEVROLET | Engine | 6V-71N | 0 | 1967–1978 | ||
| CHEVROLET | Engine | NTC-400 | 0 | 1979–1983 | ||
| CHEVROLET | Engine | NTC-250 | 0 | 1979–1979 | ||
| CHEVROLET | Engine | 8V-71 | 0 | 1971–1985 | ||
| CHEVROLET | Engine | 6V-71 | 0 | 1967–1978 | ||
| CHEVROLET | Engine | 3406 | 0 | 1979–1980 | ||
| CHEVROLET | Engine | NTC-300 | 0 | 1984–1985 | ||
| CHEVROLET | Engine | NH-230 | 0 | 1971–1974 | ||
| CHEVROLET | Engine | 8V-71NE | 0 | 1971–1985 | ||
| CHEVROLET | Engine | 6V-92TTA | 0 | 1974–1985 | ||
| CHEVROLET | Engine | 6V-71NE | 0 | 1967–1978 | ||
| CHEVROLET | Engine | NTC-350 | 0 | 1973–1985 | ||
| CHEVROLET | Engine | NHTC-270 | 0 | 1969–1972 | ||
| CHEVROLET | FC90 Titan | NTC | 0 | 1971–1978 | ||
| CHEVROLET | FH90 | 8V-71 | 0 | 1971–1978 | ||
| CHEVROLET | FH90 | 8V-71NE | 0 | 1971–1978 | ||
| CHEVROLET | FH90 | 8V-71T | 0 | 1971–1978 | ||
| CHEVROLET | FH90 | 8V-71N | 0 | 1971–1978 | ||
| CHEVROLET | FI90 | 6V-71T | 0 | 1971–1978 | ||
| CHEVROLET | FI90 | 6V-71N | 0 | 1971–1978 | ||
| CHEVROLET | FI90 | 6V-71 | 0 | 1971–1978 | ||
| CHEVROLET | FI90 | 6V-71NE | 0 | 1971–1978 | ||
| CHEVROLET | FJ90 Titan | 6V-92 | 0 | 1974–1978 | ||
| CHEVROLET | FJ90 Titan | 6V-92TA | 0 | 1974–1978 | ||
| CHEVROLET | FJ90 Titan | 6V-92T | 0 | 1974–1978 | ||
| CHEVROLET | FJ90 Titan | 6V-92TTA | 0 | 1974–1978 | ||
| CHEVROLET | FN90 | NHC-90 | 0 | 1971–1974 | ||
| CHEVROLET | FN90 | NH-230 | 0 | 1971–1974 | ||
| CHEVROLET | HC90 | NTC | 0 | 1971–1978 | ||
| CHEVROLET | HH90 | 8V-71N | 0 | 1971–1978 | ||
| CHEVROLET | HH90 | 8V-71 | 0 | 1971–1978 | ||
| CHEVROLET | HH90 | 8V-71NE | 0 | 1971–1978 | ||
| CHEVROLET | HH90 | 8V-71T | 0 | 1971–1978 | ||
| CHEVROLET | HJ90 | 6V-92TTA | 0 | 1977–1974 | ||
| CHEVROLET | HJ90 | 6V-92 | 0 | 1977–1974 | ||
| CHEVROLET | HJ90 | 6V-92TA | 0 | 1977–1974 | ||
| CHEVROLET | HJ90 | 6V-92T | 0 | 1977–1974 | ||
| CHEVROLET | HN90 | NH-230 | 0 | 1973–1974 | ||
| CHEVROLET | HN90 | NHC-250 | 0 | 1977–1974 | ||
| CHEVROLET | J8C | 8V-71T | 0 | 1979–1985 | ||
| CHEVROLET | J8C | L10 | 0 | 1983–1985 | ||
| CHEVROLET | J8C | 6V-92 | 0 | 1979–1985 | ||
| CHEVROLET | J8C | 6V-92TA | 0 | 1979–1985 | ||
| CHEVROLET | J8C | 8V-71N | 0 | 1979–1985 | ||
| CHEVROLET | J8C | 6V-92T | 0 | 1979–1985 | ||
| CHEVROLET | J8C | 8V-71 | 0 | 1979–1985 | ||
| CHEVROLET | J8C | NTC | 0 | 1973–1985 | ||
| CHEVROLET | J8C | 8V-71NE | 0 | 1979–1985 | ||
| CHEVROLET | J8C | 6V-92TTA | 0 | 1979–1985 | ||
| CHEVROLET | J9C | NTC | 0 | 1973–1985 | ||
| CHEVROLET | J9C | L10 | 0 | 1983–1985 | ||
| CHEVROLET | JC90 | NTC | 0 | 1971–1978 | ||
| CHEVROLET | JH90 | 8V-71 | 0 | 1971–1978 | ||
| CHEVROLET | JH90 | 8V-71NE | 0 | 1971–1978 | ||
| CHEVROLET | JH90 | 8V-71N | 0 | 1971–1978 | ||
| CHEVROLET | JJ90 | 6V-92TTA | 0 | 1977–1978 | ||
| CHEVROLET | JJ90 | 6V-92 | 0 | 1977–1978 | ||
| CHEVROLET | JJ90 | 6V-92TA | 0 | 1977–1978 | ||
| CHEVROLET | JJ90 | 6V-92T | 0 | 1977–1978 | ||
| CHEVROLET | JN90 | NHC-250 | 0 | 1971–1974 | ||
| CHEVROLET | JN90 | NH-230 | 0 | 1973–1974 | ||
| CHEVROLET | MC 90 | NTC | 0 | 1971–1978 | ||
| CHEVROLET | MH90 | 8V-71T | 0 | 1967–1978 | ||
| CHEVROLET | MH90 | 8V-71N | 0 | 1967–1978 | ||
| CHEVROLET | MH90 | 8V-71 | 0 | 1967–1978 | ||
| CHEVROLET | MH90 | 8V-71NE | 0 | 1967–1978 | ||
| CHEVROLET | MI90 | 6V-92 | 0 | 1967–1971 | ||
| CHEVROLET | MI90 | 6V-92TA | 0 | 1967–1971 | ||
| CHEVROLET | MI90 | 6V-92T | 0 | 1967–1971 | ||
| CHEVROLET | MI90 | 6V-92TTA | 0 | 1967–1971 | ||
| CHEVROLET | N9E | L10 | 0 | 1983–1985 | ||
| CHEVROLET | N9E | 6V-92 | 0 | 1979–1985 | ||
| CHEVROLET | N9E | 8V-71N | 0 | 1979–1985 | ||
| CHEVROLET | N9E | 6V-92TA | 0 | 1979–1985 | ||
| CHEVROLET | N9E | 8V-71 | 0 | 1979–1985 | ||
| CHEVROLET | N9E | 6V-92T | 0 | 1979–1985 | ||
| CHEVROLET | N9E | NTC | 0 | 1976–1985 | ||
| CHEVROLET | N9E | 8V-71NE | 0 | 1979–1985 | ||
| CHEVROLET | N9E | 3406 | 0 | 1979–1980 | ||
| CHEVROLET | N9E | 8V-71T | 0 | 1979–1985 | ||
| CHEVROLET | N9E | 6V-92TTA | 0 | 1979–1985 | ||
| CHEVROLET | N9F | 3406 | 0 | 1979–1980 | ||
| CHEVROLET | N9F | NTC | 0 | 1976–1985 | ||
| CHEVROLET | N9F | L10 | 0 | 1983–1985 | ||
| CHEVROLET | NH90 | 8V-71T | 0 | 1977–1978 | ||
| CHEVROLET | NH90 | 8V-71N | 0 | 1977–1978 | ||
| CHEVROLET | NH90 | 8V-71 | 0 | 1977–1978 | ||
| CHEVROLET | NH90 | 8V-71NE | 0 | 1977–1978 | ||
| CHEVROLET | NI90 | 6V-71N | 0 | 1977–1978 | ||
| CHEVROLET | NI90 | 6V-71 | 0 | 1977–1978 | ||
| CHEVROLET | NI90 | 6V-71NE | 0 | 1977–1978 | ||
| CHEVROLET | NI90 | 6V-71T | 0 | 1977–1978 | ||
| CHEVROLET | TW90 | 6V-71T | 0 | 1967–1976 | ||
| CHEVROLET | TW90 | 6V-71N | 0 | 1967–1976 | ||
| CHEVROLET | TW90 | 6V-71 | 0 | 1967–1976 | ||
| CHEVROLET | TW90 | 6V-71NE | 0 | 1967–1976 | ||
| CHEVROLET | WW90 | 6V-71 | 0 | 1967–1977 | ||
| CHEVROLET | WW90 | 6V-71NE | 0 | 1967–1976 | ||
| CHEVROLET | WW90 | 6V-71T | 0 | 1967–1976 | ||
| CHEVROLET | WW90 | 6V-71N | 0 | 1967–1976 | ||
| CLARK | 301 | DD-4-71 | 0 | 1969–1970 | ||
| CLARK | 450 | 8-555 | 0 | 1973–1973 | ||
| CLARK | 501 | VT-555 | 0 | 1971–1972 | ||
| CLARK | 550 | 8-555 | 0 | 1973–1973 | ||
| CLARK | 650 | 8-555 | 0 | 1969–1970 | ||
| CLARK | 75 III | DD-4-71N | 0 | 1971–1972 | ||
| CLARK | 75 III | 464 | 0 | 1971–1974 | ||
| CLARK | 75 IIIA | 464 | 0 | 1969–1970 | ||
| CLARK | 75 IIIA | DD-4-71N | 0 | 1971–1972 | ||
| CLARK | 75 IV | CT-464C | 0 | 1971–1974 | ||
| CLARK | 75 IV | DD-4-71N | 0 | 1971–1972 | ||
| CLARK | 85 III | C-160 | 0 | 1967–1968 | ||
| CLARK | 85A | JN | 0 | 1965–1966 | ||
| CLARK | C500-400 | 8-555 | 0 | 1982–1985 | ||
| CUMMINS | Engine | NH | 0 | 1970–1984 | ||
| CUMMINS | Engine | V903 | 0 | 1970–1983 | ||
| CUMMINS | Engine | NTF | 0 | 1970–1983 | ||
| CUMMINS | Engine | VT8-430 | 0 | 1962–1970 | ||
| CUMMINS | Engine | V8-225 | 0 | 1970–1983 | ||
| CUMMINS | Engine | V8-350 | 0 | 1962–1970 | ||
| CUMMINS | Engine | NTC | 0 | 1970–1983 | ||
| CUMMINS | Engine | VT300 | 0 | 1970–1983 | ||
| CUMMINS | Engine | V6-200 | 0 | 1962–1970 | ||
| CUMMINS | Engine | V8-265 | 0 | 1962–1970 | ||
| DODGE | CN-9 | 8V-71 | 0 | 1969–1972 | ||
| DODGE | CN-9 | NH-250 | 0 | 1965–1972 |
Visar 200 av 531 fordon
