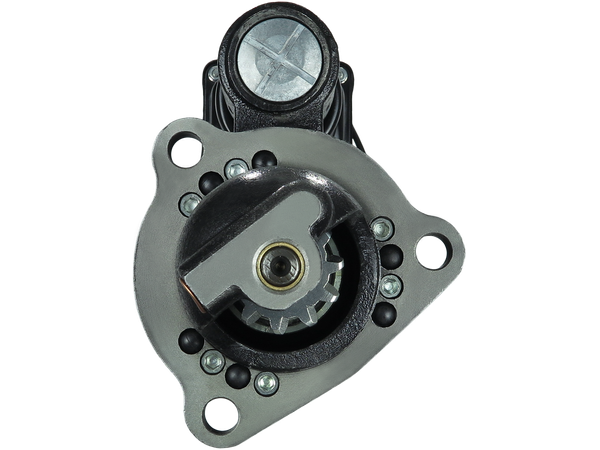

S1132
Startmotorer
STANDARD LINE
2899 kr
Köp nu
| EAN | 5902129038900 |
| Tillverkare | AS-PL |
| Ersätter | DELCO |
| OE-nummer |
3EFFE: STRL634 AINDE: CGB-1083 AS-PL: S1132, UD12381S CASE: 307822R92, 313979R92, 317941R92, 439677R91, 627589C91, 690400C91, 755496C91, 989969R91 CATERPILLAR: 0R5209, 3T2646, 3T2649, 3T2650, 3T3152, 4N8118, 4N957, 5L2537, 5L2637, 5L537, 5L637, 6N3122, 7L8797, 7T0794, 7T0800, 7T0801, 7T0806, 8C3644, 8C3649, 8H1813, 9G5584, 9G5585, 9G8854, 9L6691, 9N0435, 9N0453 CUMMINS: 135162, 3021036, 3603862RX, 706620 DELCO: 10451047, 10461047, 10461179, 1108873, 1108881, 1109702, 1109704, 1109705, 1109708, 1109723, 1109745, 1109762, 1109765, 1109898, 1113710, 1113715, 1113726, 1113738, 1113782, 1113792, 1113809, 1113813, 1113818, 1113820, 1113824, 1113825, 1113831, 1113842, 1113844, 1113845, 1113846, 1113847, 1113849, 1113850, 1113851, 1113855, 1113858, 1113860, 1113862, 1113866, 1113868, 1113872, 1113876, 1113883, 1113887, 1113892, 1113893, 1113894, 1113895, 1113898, 1113900, 1113902, 1113903, 1113905, 1113906, 1113910, 1113914, 1113915, 1113916, 1113920, 1113924, 1113926, 1113931, 1113935, 1113944, 1113948, 1113952, 1113955, 1113956, 1113957, 1113958, 1113965, 1113966, 1113968, 1113970, 1113971, 1113972, 1113973, 1113975, 1113976, 1113977, 1113978, 1113980, 1113981, 1113983, 1113991, 1113994, 1113995, 1113997, 1113999, 1114710, 1114715, 1114727, 1114728, 1114730, 1114737, 1114738, 1114755, 1114756, 1114760, 1114762, 1114776, 1114781, 1114784, 1114790, 1114842, 1114844, 1114846, 1114847, 1114848, 1114849, 1114850, 1114851, 1114852, 1114853, 1114854, 1114855, 1114873, 1114874, 1114875, 1114878, 1114879, 1114880, 1114903, 1114907, 1114909, 1114915, 1114916, 1114923, 1114935, 1114947, 1114950, 1114951, 1114958, 1114963, 1114964, 1114970, 1114971, 1114973, 1114974, 1114979, 1114981, 1114987, 1990202, 1990222, 1990279, 1990307, 1990328, 1990482, 1993700 DIXIE: 201-40202, 201-40202R, S-1083 ELECTROLOG: STR2145 FIAT: 70620382, 70622235, 73061273, 73069398, 73116947, 73117237, 73130194, 73130195, 73130625 FORD: C4TF-11000-A, C4TZ-11002-A KUHNER: 254725, 254725K LOGISTIK: 339014 MACK: 8MJ176 PRESTOLITE: M0017260ME, M0017400ME, M0017506ME, M105R3503SE, MS1-401A, MS1-403A, MS1-410A, MS1-453 SIOM: MAV621240, MAV626010, MAV626040 STARDAX: STX201301 WAI / TRANSPO: 3745N WHITE: V1114243 WILSON: 91-01-3700, 91-01-3700N, 91-01-4078 WOODAUTO: STR20013 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 24 |
| Effekt [ kW ] | 6.50 |
| Startmotors rotation | CW |
| A-storlek [ mm ] | 92.00 |
| B-storlek [ mm ] | 47.00 |
| Antal kuggar [ qty. ] | 11 |
| Antal hål i huvudet [ qty. ] | 3 |
| Antal gängade hål [ qty. ] | 0 |
| L.1 [ mm ] | 510.00 |
| O.1 [ mm ] | 127.00 |
| O.2 [ mm ] | 127.00 |
| O.3 [ mm ] | 127.00 |
| C.1 [ mm ] | 16.50 |
| C.2 [ mm ] | 16.50 |
| C.3 [ mm ] | 16.50 |
Passar i 217 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| ALLIS CHALMERS | 10000 D | 0 | 1963–1971 | |||
| ALLIS CHALMERS | 11000 D | 0 | 1963–1978 | |||
| ALLIS CHALMERS | 145 D | AD344 | 0 | 1959–1961 | ||
| ALLIS CHALMERS | 16000 D | 0 | 1961–1962 | |||
| ALLIS CHALMERS | 16000 HD | 0 | 1963–1971 | |||
| ALLIS CHALMERS | 17000 | 0 | 1975–1978 | |||
| ALLIS CHALMERS | 21000 D | 0 | 1961–1978 | |||
| ALLIS CHALMERS | 21000 H | 0 | 1965–1971 | |||
| ALLIS CHALMERS | 25000 | 0 | 1965–1978 | |||
| ALLIS CHALMERS | 3400 D | 0 | 1973–1978 | |||
| ALLIS CHALMERS | 3500 D | 0 | 1973–1978 | |||
| ALLIS CHALMERS | 45 | ADS516 | 0 | 1955–1957 | ||
| ALLIS CHALMERS | 555 | 0 | 1964–1965 | |||
| ALLIS CHALMERS | 6000 D | 0 | 1963–1964 | |||
| ALLIS CHALMERS | 6138 D | 0 | 1979–1979 | |||
| ALLIS CHALMERS | 670 D | 0 | 1979–1984 | |||
| ALLIS CHALMERS | 685 D | 0 | 1979–1984 | |||
| ALLIS CHALMERS | 685T D | TL745L | 0 | 1968–1970 | ||
| ALLIS CHALMERS | 7000 D | 0 | 1963–1964 | |||
| ALLIS CHALMERS | D-334 | 0 | 1961–1962 | |||
| ALLIS CHALMERS | HD11 | HD516 | 0 | 1956–1957 | ||
| ALLIS CHALMERS | HD516 | HD11 | 0 | 1956–1958 | ||
| ALLIS CHALMERS | HD7 D | 0 | 1960–1969 | |||
| ALLIS CHALMERS | HD7GB | 0 | 1960–1964 | |||
| ALLIS CHALMERS | M100 D | 0 | 1962–1970 | |||
| ALLIS CHALMERS | M120 | 0 | 1962–1974 | |||
| ALLIS CHALMERS | M200 | 0 | 1962–1974 | |||
| ALLIS CHALMERS | M45 | ADS516 | 0 | 1959–1961 | ||
| ALLIS CHALMERS | M70 D | 0 | 1963–1964 | |||
| ALLIS CHALMERS | T16 D | 0 | 1962–1964 | |||
| ALLIS CHALMERS | T500A | 0 | 1967–1968 | |||
| ALLIS CHALMERS | TL-10D | D262 | 0 | 1962–1966 | ||
| ALLIS CHALMERS | TL-12D | D262 | 0 | 1962–1966 | ||
| ALLIS CHALMERS | TL-20 D | 0 | 1962–1964 | |||
| ALLIS CHALMERS | TS-100 | TDS-516 | 0 | 1955–1957 | ||
| ALLIS CHALMERS | TS-160 | TDS-516 | 0 | 1958–1959 | ||
| CATERPILLAR | 112F | 0 | 1964–1968 | |||
| CATERPILLAR | 120 | 0 | 1964–1967 | |||
| CATERPILLAR | 12E | 0 | 1959–1965 | |||
| CATERPILLAR | 12F | 0 | 1965–1967 | |||
| CATERPILLAR | 14D | 0 | 1961–1965 | |||
| CATERPILLAR | 14E | 0 | 1965–1973 | |||
| CATERPILLAR | 3406 D | 0 | 1970–1984 | |||
| CATERPILLAR | 3406C | 0 | – | |||
| CATERPILLAR | 3406E | 0 | – | |||
| CATERPILLAR | 3456 | 0 | – | |||
| CATERPILLAR | 3508 | 0 | 1986–1993 | |||
| CATERPILLAR | 561B | 0 | 1959–1967 | |||
| CATERPILLAR | 776 D | D348 | 0 | 1975–1984 | ||
| CATERPILLAR | 777 D | D348 | 0 | 1974–1984 | ||
| CATERPILLAR | 824C | 0 | 1978–1984 | |||
| CATERPILLAR | 955H | 0 | 1960–1966 | |||
| CATERPILLAR | 966A | 0 | 1960–1963 | |||
| CATERPILLAR | 977H | 0 | 1960–1966 | |||
| CATERPILLAR | D-516 | 0 | 1961–1964 | |||
| CATERPILLAR | D4C | 0 | 1959–1963 | |||
| CATERPILLAR | D4D | 0 | 1963–1968 | |||
| CATERPILLAR | Engine | G3406 | 0 | – | ||
| CATERPILLAR | Engine | D333 | 0 | 1964–1967 | ||
| CATERPILLAR | Engine | D330 | 0 | 1964–1967 | ||
| CLARK | 110 D | 0 | 1965–1966 | |||
| CLARK | 125 | VR220 | 0 | 1967–1968 | ||
| CLARK | 125 D | V-785C | 0 | 1969–1972 | ||
| CLARK | 125A D | 0 | 1965–1966 | |||
| CLARK | 175 | V8R240 | 0 | 1965–1966 | ||
| CLARK | 175 D | N855C | 0 | 1970–1970 | ||
| CLARK | 175A | 135DKB | 0 | 1954–1955 | ||
| CLARK | 175A | V8R240 | 0 | 1967–1968 | ||
| CLARK | 175B | N14 | 0 | 1973–1984 | ||
| CLARK | 180 D | 0 | 1965–1968 | |||
| CLARK | 210 | NTO6 | 0 | 1965–1966 | ||
| CLARK | 210H | NT855C | 0 | 1969–1979 | ||
| CLARK | 275 | NT310 | 0 | 1965–1968 | ||
| CLARK | 275 | NT855C | 0 | 1970–1970 | ||
| CLARK | 275B | N14 | 0 | 1979–1984 | ||
| CLARK | 280 | NT855C | 0 | 1969–1972 | ||
| CLARK | 280 | NT310 | 0 | 1965–1968 | ||
| CLARK | 85 D | V-785C | 0 | 1970–1972 | ||
| CLARK | 85C D | N855C | 0 | 1973–1974 | ||
| CLARK | Engine | V-800 | 0 | 1983–1983 | ||
| CLARK | F1500 | 0 | 1963–1964 | |||
| CLARK | H2000 | 0 | 1963–1964 | |||
| CLARK | K67 | 0 | 1963–1964 | |||
| CLARK | K75 | 0 | 1963–1964 | |||
| CLARK | L3000 | 0 | 1963–1964 | |||
| CLARK | L3230 | 0 | 1963–1964 | |||
| CLARK | L3460 | 0 | 1963–1964 | |||
| CLARK | L4000 | 0 | 1963–1964 | |||
| CLARK | LF280 | NT855C | 0 | 1973–1974 | ||
| CLARK | T-24 | 135DKB | 0 | 1956–1958 | ||
| CLARK | T-25 | 135DKB | 0 | 1956–1958 | ||
| CLARK | T-2Z | 135DKB | 0 | 1956–1958 | ||
| CLARK | V122 | 0 | 1963–1964 | |||
| CLARK | V125 | 0 | 1963–1964 | |||
| CLARK | V80 | 0 | 1963–1964 | |||
| CLARK | V85 | 0 | 1963–1964 | |||
| CLARK | 14.0 | 280 | N14 | 0 | 1979–1984 | |
| CLARK | 7.0 D | 110 | 671N | 0 | 1969–1970 | |
| CLARK | 7.0 D | 110H | 671N | 0 | 1971–1974 | |
| CLARK | 7.0 D | 125C | 671N | 0 | 1979–1984 | |
| CLARK | 9.1 | 125B | VT555 | 0 | 1973–1978 | |
| CLARK | 9.1 | 125C | VT555 | 0 | 1979–1984 | |
| CLARK | 9.3 | 210 | 8V71 | 0 | 1965–1966 | |
| CLARK | 9.3 | 210 | 8V71N | 0 | 1967–1974 | |
| CLARK | 9.3 | 275 | 8V71N | 0 | 1967–1968 | |
| CLARK | 9.3 | 275 | 8V71 | 0 | 1965–1966 | |
| CLARK | 9.3 | 275A | 8V71N | 0 | 1965–1966 | |
| CLARK | 9.3 | 280 | 8V71N | 0 | 1979–1984 | |
| CLARK | 9.3 D | 175B | 8V71N | 0 | 1973–1974 | |
| CUMMINS | Engine | NRTO | 0 | 1961–1962 | ||
| CUMMINS | Engine | H | 0 | 1961–1962 | ||
| CUMMINS | Engine | VT300 | 0 | 1970–1983 | ||
| CUMMINS | Engine | VT8430 | 0 | 1961–1967 | ||
| CUMMINS | Engine | NHRS6 | 0 | 1961–1962 | ||
| CUMMINS | Engine | HR6 | 0 | 1961–1962 | ||
| CUMMINS | Engine | NTC | 0 | 1970–1983 | ||
| CUMMINS | Engine | 0 | 1983–1984 | |||
| CUMMINS | Engine | NH | 0 | 1961–1962 | ||
| CUMMINS | Engine | HS6 | 0 | 1961–1962 | ||
| CUMMINS | Engine | V903 | 0 | 1970–1983 | ||
| CUMMINS | Engine | NTO | 0 | 1970–1983 | ||
| CUMMINS | Engine | NHE | 0 | 1961–1962 | ||
| CUMMINS | Engine | HB | 0 | 1961–1962 | ||
| CUMMINS | Engine | NHS6 | 0 | 1961–1962 | ||
| CUMMINS | Engine | HRS | 0 | 1961–1962 | ||
| CUMMINS | Engine | NTF | 0 | 1970–1983 | ||
| CUMMINS | 10.0 | Engine | L10 | 0 | 1983–1984 | |
| DRESSER | 250E | LTA10C | 0 | 1986–1993 | ||
| FIAT | 100C D | 0 | 1974–1980 | |||
| FIAT | 12GB D | 0 | 1974–1977 | |||
| FIAT | 14C D | 0 | 1977–1984 | |||
| FIAT | 14C LGP | 0 | 1978–1984 | |||
| FIAT | 14CTA | 0 | 1978–1984 | |||
| FIAT | 150C DD | 0 | 1974–1980 | |||
| FIAT | 200C | 0 | 1974–1980 | |||
| FIAT | FL14C D | 0 | 1977–1984 | |||
| FREIGHTLINER | Engine | NTC | 0 | 1979–1981 | ||
| INGERSOLL RAND | R-900 | 6110 | 0 | 1956–1957 | ||
| INTERNATIONAL | 250 | 0 | 1963–1969 | |||
| INTERNATIONAL | 250 | DT573B | 0 | 1970–1970 | ||
| INTERNATIONAL | 250 D | TDS-516 | 0 | 1977–1979 | ||
| INTERNATIONAL | 250C | DT573B | 0 | 1972–1974 | ||
| INTERNATIONAL | 250C D | DVT573 | 0 | 1975–1984 | ||
| INTERNATIONAL | 270 D | DVT573B | 0 | 1971–1973 | ||
| INTERNATIONAL | 270 D | DVT573 | 0 | 1967–1970 | ||
| INTERNATIONAL | 431 | DVT800 | 0 | 1974–1985 | ||
| INTERNATIONAL | 433 | DVT800 | 0 | 1974–1985 | ||
| INTERNATIONAL | 442 D | DVT800 | 0 | 1974–1979 | ||
| INTERNATIONAL | 444 D | DVT800 | 0 | 1974–1979 | ||
| INTERNATIONAL | 560 | DT817C | 0 | 1975–1982 | ||
| INTERNATIONAL | 560B | KT1150 | 0 | 1980–1985 | ||
| INTERNATIONAL | D100B D | NH250 | 0 | 1968–1969 | ||
| INTERNATIONAL | D120C | DT817B | 0 | 1970–1974 | ||
| INTERNATIONAL | D120C | DT573 | 0 | 1968–1969 | ||
| INTERNATIONAL | D120C | DT817C | 0 | 1970–1974 | ||
| INTERNATIONAL | D90C D | DT573 | 0 | 1968–1969 | ||
| INTERNATIONAL | D90C D | V6R180 | 0 | 1968–1969 | ||
| INTERNATIONAL | Engine | NHE195 | 0 | 1969–1970 | ||
| INTERNATIONAL | Engine | NHC250 | 0 | 1969–1971 | ||
| INTERNATIONAL | Engine | NTC | 0 | 1977–1983 | ||
| INTERNATIONAL | H120C | DT817B | 0 | 1969–1973 | ||
| INTERNATIONAL | H120C | 8V71N | 0 | 1968–1969 | ||
| INTERNATIONAL | H120C | DT817 | 0 | 1969–1973 | ||
| INTERNATIONAL | H90C | JT61 | 0 | 1968–1969 | ||
| INTERNATIONAL | H90C | DT573 | 0 | 1968–1979 | ||
| INTERNATIONAL | H90C D | DVT573B | 0 | 1975–1979 | ||
| INTERNATIONAL | H90E D | DVT573B | 0 | 1970–1974 | ||
| INTERNATIONAL | KT | 0 | 1977–1979 | |||
| INTERNATIONAL | PH65 D | DVT573 | 0 | 1965–1967 | ||
| INTERNATIONAL | PH65B D | DVT573 | 0 | 1968–1969 | ||
| INTERNATIONAL | PH65C D | DVT573B | 0 | 1970–1970 | ||
| INTERNATIONAL | PH95 | DT817 | 0 | 1959–1964 | ||
| INTERNATIONAL | SB85 | DTI817B | 0 | 1983–1984 | ||
| INTERNATIONAL | TD20B D | 0 | 1963–1969 | |||
| INTERNATIONAL | TD20C | DT573B | 0 | 1970–1970 | ||
| INTERNATIONAL | TD20E D | DVT800 | 0 | 1975–1984 | ||
| INTERNATIONAL | TD25B D | 0 | 1960–1979 | |||
| INTERNATIONAL | TD25C | DT817B | 0 | 1960–1979 | ||
| INTERNATIONAL | TD25C | DT817C | 0 | 1960–1979 | ||
| INTERNATIONAL | TD25E | DT817B | 0 | 1985–1985 | ||
| INTERNATIONAL | TD25E | DT817C | 0 | 1979–1979 | ||
| INTERNATIONAL | TD30 | DTI817 | 0 | 1960–1972 | ||
| INTERNATIONAL | TD30 | DT817 | 0 | 1960–1972 | ||
| INTERNATIONAL | Various Models | NH230 | 0 | 1971–1971 | ||
| INTERNATIONAL | Various Models | NH220 | 0 | 1969–1970 | ||
| INTERNATIONAL | 12.1 | Paystar | 8V92 | 0 | 1983–1983 | |
| INTERNATIONAL | 12.1 | Transtar | 8V92 | 0 | 1984–1984 | |
| INTERNATIONAL | 7.6 | Paystar | DT-466 | 0 | 1977–1979 | |
| JOHN DEERE | WA14 | 0 | 1970–1971 | |||
| JOHN DEERE | WA17 | 0 | 1970–1971 | |||
| KENWORTH | Engine | NTC | 0 | 1980–1983 | ||
| KENWORTH | Engine | VT300 | 0 | 1980–1983 | ||
| KENWORTH | HD6G | HD344 | 0 | 1958–1957 | ||
| KENWORTH | Various Models | NH | 0 | 1972–1979 | ||
| KOMATSU | HA250 D | 0 | 1991–2005 | |||
| MACK | Engine | NHS | 0 | 1963–1983 | ||
| MACK | RB D | NTC300 | 0 | 1982–1983 | ||
| MASSEY FERGUSON | MF66 | CS464 | 0 | 1972–1977 | ||
| MASSEY FERGUSON | MF77 D | N-855 | 0 | 1972–1972 | ||
| MASSEY FERGUSON | MF88 D | N-855 | 0 | 1972–1972 |
Visar 200 av 217 fordon
