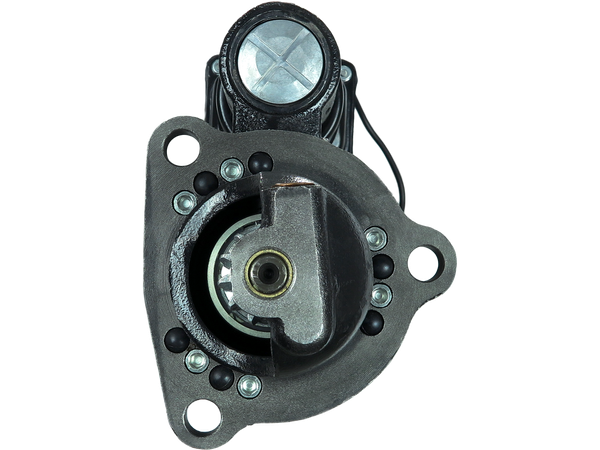

S1133
Startmotorer
STANDARD LINE
3554 kr
Köp nu
| EAN | 5902129038917 |
| Tillverkare | AS-PL |
| Ersätter | DELCO |
| OE-nummer |
3EFFE: STRF782, STRS208 AINDE: CGB-1139, CGB-1502 AS-PL: S1133, UD12383S AUTO MAGNETO: AM-2383 CASE: 673782C91, 690644C92, A47500, D42964, R26137, R43343, R45968 CATERPILLAR: 0025900, 0R5207, 0R5270, 25900, 2S0900, 2S900, 3A1872, 3A1872H, 3R7356, 3T2647, 3T2652, 3T2660, 3T2772, 3T4581, 3T4582, 3T4584, 3Y8852, 4N3181, 4N3347, 4N3348, 4N3350, 5A6494, 5A6495, 5A6522, 5R3155, 5R3857, 7S3622, 7T0798, 7T0799, 7T1082, 7T1799, 8C3597, 8C3647, 8C3650, 8N2145, 9G4337, 9G4338, 9G4339, 9M1662 CUMMINS: 197127, 3604233RX, 3675120RX DELCO: 0461107, 10461107, 10461242, 10461338, 10461341, 1113827, 1113840, 1113853, 1113901, 1113923, 1113928, 1113934, 1113942, 1113949, 1113950, 1113951, 1113959, 1113960, 1113962, 1113967, 1113969, 1113982, 1113990, 1113992, 1113993, 1113998, 1114706, 1114711, 1114712, 1114729, 1114735, 1114740, 1114742, 1114743, 1114759, 1114767, 1114772, 1114774, 1114777, 1114782, 1114793, 1114805, 1114843, 1114845, 1114856, 1114857, 1114858, 1114859, 1114860, 1114861, 1114862, 1114863, 1114864, 1114871, 1114872, 1114905, 1114910, 1114914, 1114917, 1114945, 1114949, 1114953, 1114968, 1114989, 1990297, 1990324, 1990343, 1990414, 1990415, 1990432, 1993704, 1993822, 1993936, 1993945 DIXIE: 201-40203, 201-40203R, S-1139 ELECTROLOG: STR2603 FIAT: 73130192 JOHN DEERE: AR102770, AR102771, AR36849, AR45036, AR55313, AR55314, R14006, RE38634, RE43047, RE515895, RE61591, SE501443, TY6610, TY6611, TY6699, TY6721, TY6746 KUHNER: 254876, 60823, 60823P, 60823W, 60863, 60863D PRESTOLITE: M0017260ME, M0017280ME, M0017422ME, M105R3503SE, M125R3003SEP, MS1-401A, MS1-410A, MS1-453 SIOM: MAV626010, MAV626040 WILSON: 91-01-4105, 91-01-4105N WOODAUTO: STR20015 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 24 |
| Effekt [ kW ] | 6.50 |
| Startmotors rotation | CW |
| A-storlek [ mm ] | 92.00 |
| B-storlek [ mm ] | 47.00 |
| Antal kuggar [ qty. ] | 12 |
| Antal hål i huvudet [ qty. ] | 3 |
| Antal gängade hål [ qty. ] | 0 |
| L.1 [ mm ] | 511.00 |
| O.1 [ mm ] | 127.00 |
| O.2 [ mm ] | 127.00 |
| O.3 [ mm ] | 127.00 |
| C.1 [ mm ] | 16.50 |
| C.2 [ mm ] | 16.50 |
| C.3 [ mm ] | 16.50 |
Passar i 55 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| CASE IH | 1150 | 6504 | 0 | 1969–1972 | ||
| CASE IH | 1150 | 401 | 0 | 1965–1972 | ||
| CASE IH | 1150 | 301 | 0 | 1965–1970 | ||
| CASE IH | 1400TK | 6504 | 0 | 1969–1972 | ||
| CASE IH | W18 | 401 | 0 | 1971–1984 | ||
| CASE IH | W18B | 504 | 0 | 1970–1973 | ||
| CASE IH | W20 | 401 | 0 | 1971–1979 | ||
| CASE IH | W20 | 504 | 0 | 1970–1973 | ||
| CASE IH | W24 | 504 | 0 | 1969–1973 | ||
| CASE IH | W24B | 504 | 0 | 1969–1976 | ||
| CASE IH | W26 | 0 | 1971–1971 | |||
| CUMMINS | 9.1 | Engine | 0 | 1983–1985 | ||
| INTERNATIONAL | 175C | DT466 | 0 | 1972–1974 | ||
| INTERNATIONAL | 412 | DT466 | 0 | 1971–1979 | ||
| INTERNATIONAL | 412B | DT466 | 0 | 1980–1987 | ||
| INTERNATIONAL | 431 | DVT800 | 0 | 1974–1985 | ||
| INTERNATIONAL | 433 | DT466 | 0 | 1980–1985 | ||
| INTERNATIONAL | 433 | DVT800 | 0 | 1974–1985 | ||
| INTERNATIONAL | 433B | DVT800 | 0 | 1983–1985 | ||
| INTERNATIONAL | 433B | DT466 | 0 | 1983–1985 | ||
| INTERNATIONAL | 433V | DVT800 | 0 | 1980–1985 | ||
| INTERNATIONAL | 433V | DT466 | 0 | 1980–1985 | ||
| INTERNATIONAL | 442 | DVT800 | 0 | 1980–1985 | ||
| INTERNATIONAL | 442B | DVT800 | 0 | 1983–1985 | ||
| INTERNATIONAL | 444 | DT466 | 0 | 1980–1985 | ||
| INTERNATIONAL | 444 | DVT800 | 0 | 1980–1985 | ||
| INTERNATIONAL | 530 | DT414 | 0 | 1978–1985 | ||
| INTERNATIONAL | 540 | DT466B | 0 | 1978–1985 | ||
| INTERNATIONAL | 560B | KT1150C | 0 | 1980–1985 | ||
| INTERNATIONAL | H-65C | DT414 | 0 | 1970–1979 | ||
| INTERNATIONAL | H-65E | 0 | 1979–1979 | |||
| INTERNATIONAL | H-80B | DT466 | 0 | 1974–1979 | ||
| INTERNATIONAL | TD-15C | DT466 | 0 | 1972–1974 | ||
| INTERNATIONAL | TD-15C | D554 | 0 | 1959–1959 | ||
| INTERNATIONAL | TD-175 | 0 | 1972–1974 | |||
| INTERNATIONAL | TD-25C | DT817 | 0 | 1972–1976 | ||
| INTERNATIONAL | 5.9 | H-60E | D360 | 0 | 1974–1979 | |
| JOHN DEERE | 101G | V504 | 0 | 1979–1982 | ||
| JOHN DEERE | 5010 D | 0 | 1963–1965 | |||
| JOHN DEERE | 5020 | 6531 | 0 | 1966–1972 | ||
| JOHN DEERE | 770 | 0 | 1975–1978 | |||
| JOHN DEERE | 770A | 0 | 1978–1983 | |||
| JOHN DEERE | 772A | 0 | 1978–1983 | |||
| JOHN DEERE | 850 | 0 | 1978–1981 | |||
| JOHN DEERE | 855 | 0 | 1979–1981 | |||
| JOHN DEERE | 860B D | 0 | 1977–1980 | |||
| JOHN DEERE | 862 | 6V71N | 0 | 1980–1981 | ||
| JOHN DEERE | 890 | 619 | 0 | 1978–1983 | ||
| JOHN DEERE | 890A | 619 | 0 | 1978–1983 | ||
| JOHN DEERE | Engine | 6619 | 0 | – | ||
| JOHN DEERE | H-884 | 0 | 1963–1973 | |||
| JOHN DEERE | JD700 | 531 | 0 | 1967–1974 | ||
| JOHN DEERE | JD700A | 531 | 0 | 1967–1974 | ||
| JOHN DEERE | JD762 | 619 | 0 | 1975–1981 | ||
| JOHN DEERE | JD762 | 466 | 0 | 1975–1981 |
