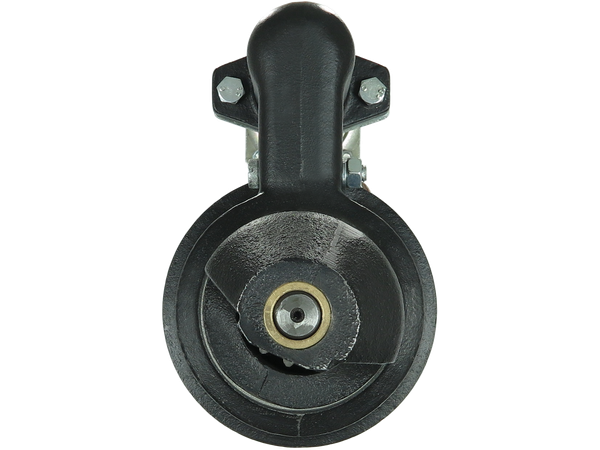

S9205ER
Startmotorer
ECONOMY LINE
3544 kr
Köp nu
| EAN | 5902129051817 |
| Tillverkare | AS-PL |
| Ersätter | AVF |
| OE-nummer |
3EFFE: STRF128, STRL698 AS-PL: S9205R AVF: IM11, IM18 CARGO: 110511, F032110511 EAI: 33736 ELECTROLOG: STRX085 HC PARTS: CS950 HELLA: 8EA737095-001 ISKRA / LETRIKA: 11.139.156, AZK5539 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 24 |
| Effekt [ kW ] | 4.00 |
| Startmotors rotation | CW |
| A-storlek [ mm ] | 79.50 |
| B-storlek [ mm ] | 49.00 |
| Antal kuggar [ qty. ] | 11 |
| Antal hål i huvudet [ qty. ] | 0 |
| Antal gängade hål [ qty. ] | 0 |
| L.1 [ mm ] | 424.00 |
Passar i 11 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| FAMULUS | RS 14/30 3.0 | RS 14 | 2 KVD 14,5 SRL | 33 | diesel | 1956–1960 |
| FAMULUS | RS 14/36 3.3 | RS 14 | 2 KVD 14,5/12 SRW 36 | 36 | diesel | 1960–1964 |
| FORTSCHRITT | E 512 6.6 | E | 4 VD 14,5/12-1 SRW | 105 | diesel | 1968–1988 |
| FORTSCHRITT | E 514 6.6 | E | 4 VD 14,5/12-1 SRW | 115 | 1983–1997 | |
| FORTSCHRITT | T 174-2 3.3 | T | 2 VS 14,5/12-1 SRL | 34 | diesel | 1974–1992 |
| FORTSCHRITT | ZT 300 6.5 | ZT 300 | 4 VD 14,5/12-1 SRW | 100 | diesel | 1967–1984 |
| FORTSCHRITT | ZT 303 6.5 | ZT 300 | 4 VD 14,5/12-1 SRW | 100 | diesel | 1972–1991 |
| FORTSCHRITT | ZT 320 6.5 | ZT 300 | 4 VD 14,5/12-1 SRW | 100 | diesel | 1972–1991 |
| FORTSCHRITT | ZT 323 6.5 | ZT 300 | 4 VD 14,5/12-1 SRW | 100 | diesel | 1972–1991 |
| IFA | S 4000-1 6.0 | S | EM 4-22 | 90 | diesel | 1958–1967 |
| IFA | W 50 6.5 | W | 4 VD 14,5/12-2 SRW | 125 | diesel | 1965–1990 |
