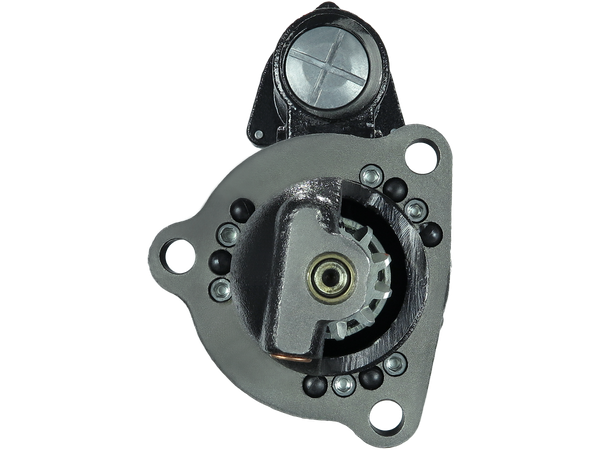

S1134
Startmotorer
STANDARD LINE
2943 kr
Köp nu
| EAN | 5902129038948 |
| Tillverkare | AS-PL |
| Ersätter | DELCO |
| OE-nummer |
3EFFE: STRF800, STRJ015, STRS769, STRW235 AINDE: CGB-1501 AS-PL: S1134, UD12389S BOSCH: F042002149 CARGO: 111039, 112089, F032111039, F032112089 CASCO: CST60124, CST60124AS, CST60124ES, CST60124GS, CST60124OS, CST60124RS CASE: 107717A1, 20-2383T91, 20-2384T91, 263819C91, 87409260 CATERPILLAR: 0R2191, 0R5347, 1463503, 2N2761, 3E7863, 3T2879, 3T3154, 4L9547, 4N0956, 4N956, 5L4160, 5L4168, 5L4169, 5L5667, 5L5867, 8C3592, 8C3593, 8C3652, 8L6200, 8L8206, 9L6200, 9N0716, 9N0721, 9N716, OR5347, PR5347, PR5348, SL8206 CUMMINS: 195827, 195828, 195829, 195830, 195833, 195834, 195835, 3021034, 3021035, 3603863R, 3603863RX, 3603868R, 3604322RX, 3610942 DELCO: 10461033, 10461038, 10461042, 10461045, 10461052, 10461053, 10461067, 10461075, 10461076, 10461077, 10461114, 10461126, 10461127, 10461178, 10461185, 10478963, 10479104, 1113645, 1114002, 1114009, 1114012, 1114022, 1114025, 1114041, 1114051, 1114054, 1114055, 1114056, 1114058, 1114064, 1114067, 1114072, 1114073, 1114074, 1114076, 1114078, 1114081, 1114082, 1114084, 1114085, 1114086, 1114087, 1114088, 1114090, 1114091, 1114092, 1114095, 1114096, 1114098, 1114099, 1114102, 1114107, 1114111, 1114113, 1114115, 1114118, 1114119, 1114122, 1114124, 1114126, 1114128, 1114130, 1114131, 1114133, 1114140, 1114143, 1114145, 1114148, 1114149, 1114150, 1114157, 1114164, 1114165, 1114170, 1114172, 1114179, 1114180, 1114185, 1114186, 1114187, 1114188, 1114189, 1114193, 1114194, 1114197, 1114716, 1114720, 1114722, 1114723, 1114725, 1114726, 1114741, 1114747, 1114749, 1114750, 1114751, 1114752, 1114761, 1114766, 1114769, 1114791, 1114799, 1114812, 1114813, 1114814, 1114815, 1114816, 1114820, 1114889, 1114890, 1114891, 1114892, 1114893, 1114894, 1114895, 1114896, 1114897, 1114898, 1114899, 1114900, 1114906, 1114907, 1114913, 1114928, 1114937, 1114941, 1114946, 1114961, 1114971, 1114978, 1114983, 1114984, 1114985, 1990224, 1990306, 1990323, 1990337, 1990348, 1990349, 1990352, 1990354, 1990358, 1990363, 1990372, 1990375, 1990376, 1990386, 1990398, 1990400, 1990420, 1990423, 1990424, 1990458, 1990468, 1990470, 1990475, 1990477, 1990478, 1990483, 1990490, 1990495, 1993803, 1993807, 1993813, 1993816, 1993856, 1993934, 1993977, 323-871 DENSO: 128000-1340, 228000-1210, 228000-1211 DIXIE: 201-42101, TS-1501 ELECTROLOG: STR2613 FORD: C5TZ11002C, C6TF11000A, C6TF11000C, C6TZ11002E, E6HT11001CA, E6HZ11002C, E6HZ11002D, E8HT11001AA, E8HZ11002A, E8HZ11002HA, F0HT11001AB, F0HZ11002A, F6HT11001AA, F6HT11001GA, F6HZ11002AA, F6HZ11002GA, SA768A JOHN DEERE: RE24305, RE41754, RE51792, RE53695, TY6728 KUHNER: 254725, 254725K PRESTOLITE: M0017268ME, M0017318ME, M105R2515SE, M105R2518SE, M110615, M110R2603SE, M110R2603SE2D, M110R2615SE, M110R2615SE2D, M110R2616SE-A, M125R2001SEP, M125R2001SEPN, M125R2632SE, MS1-401A, MS2-511, MS2-512 PSH: 640.042.113 SANDO: 6060124 SIOM: MAV621120, MAV621230, MAV621240 VOLVO: 20851006 WAI / TRANSPO: 6356N WILSON: 90-01-4166, 90-01-4166N WOODAUTO: STR20006 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 12 |
| Effekt [ kW ] | 7.30 |
| Startmotors rotation | CW |
| A-storlek [ mm ] | 92.00 |
| B-storlek [ mm ] | 47.00 |
| Antal kuggar [ qty. ] | 11 |
| Antal hål i huvudet [ qty. ] | 3 |
| Antal gängade hål [ qty. ] | 0 |
| L.1 [ mm ] | 500.00 |
| O.1 [ mm ] | 126.00 |
| O.2 [ mm ] | 126.00 |
| O.3 [ mm ] | 126.00 |
| C.1 [ mm ] | 16.00 |
| C.2 [ mm ] | 16.00 |
| C.3 [ mm ] | 16.00 |
Passar i 127 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| CASE IH | 1000 | DD471 | 0 | 1985–1995 | ||
| CASE IH | 4494 | 6504 | 0 | 1985–1987 | ||
| CASE IH | 650CA | DD471 | 0 | 1985–1995 | ||
| CASE IH | 800 | DD471 | 0 | 1985–1995 | ||
| CASE IH | 9150 | 6-611 | 0 | 1986– | ||
| CASE IH | 9150 | 6611 | 0 | 1986–1990 | ||
| CASE IH | 9170 | 6855 | 0 | 1986–1990 | ||
| CASE IH | 9170 | 3406 | 0 | 1986–1990 | ||
| CASE IH | 9180 | 6-855 | 0 | 1986– | ||
| CASE IH | 9180 | 6855 | 0 | 1986–1990 | ||
| CASE IH | 9250 | 6-611 | 0 | 1990– | ||
| CASE IH | 9250 | 6611 | 0 | 1990–1995 | ||
| CASE IH | 9260 | 6611 | 0 | 1990–1995 | ||
| CASE IH | 9260 | 6-611 | 0 | 1990– | ||
| CASE IH | 9270 | 6-855 | 0 | 1990– | ||
| CASE IH | 9270 | 6855 | 0 | 1990–1995 | ||
| CASE IH | 9280 | 6-855 | 0 | 1990– | ||
| CASE IH | 9280 | 6855 | 0 | 1990–1995 | ||
| CASE IH | 9350 | 6611 | 0 | 1995–2000 | ||
| CASE IH | 9370 | 6855 | 0 | 1995–2000 | ||
| CASE IH | 9370QT | 6855 | 0 | 1995–2000 | ||
| CASE IH | 9380 | 6855 | 0 | 1995–2000 | ||
| CASE IH | 9380QT | 6855 | 0 | 1995–2000 | ||
| CASE IH | 9390 | 6855 | 0 | 1995–2000 | ||
| CASE IH | STX375 | QSX15 | 0 | 2001–2005 | ||
| CASE IH | STX375 | 6912 | 0 | 2002–2005 | ||
| CASE IH | STX375QT | 6912 | 0 | 2002–2005 | ||
| CASE IH | STX375QT | QSX15 | 0 | 2002–2005 | ||
| CASE IH | STX425 | 6912 | 0 | 2002–2004 | ||
| CASE IH | STX425 | QSX15 | 0 | 2001–2005 | ||
| CASE IH | STX425QT | QSX15 | 0 | 2002–2005 | ||
| CASE IH | STX425QT | 6912 | 0 | 2002–2005 | ||
| CASE IH | STX440 | 6912 | 0 | 2001–2001 | ||
| CASE IH | STX440 | QSX15 | 0 | 2002–2007 | ||
| CASE IH | STX440QT | 6912 | 0 | 2001–2001 | ||
| CASE IH | STX440QT | QSX15 | 0 | 2001–2001 | ||
| CASE IH | STX450 | 6912 | 0 | 2002–2005 | ||
| CASE IH | STX450 | QSX15 | 0 | 2002–2005 | ||
| CASE IH | STX450QT | 6912 | 0 | 2002–2005 | ||
| CASE IH | STX450QT | QSX15 | 0 | 2002–2005 | ||
| CASE IH | STX500 | QSX15 | 0 | 2001–2006 | ||
| CASE IH | STX500 | 6912 | 0 | – | ||
| CASE IH | STX500QT | QSX15 | 0 | – | ||
| CASE IH | STX500QT | 6912 | 0 | – | ||
| CATERPILLAR | 3176 | 0 | 1991– | |||
| CATERPILLAR | 3406 | 0 | 1974– | |||
| CUMMINS | 10.0 | Engine | 0 | – | ||
| CUMMINS | 14.0 | Engine | 0 | 1994–2004 | ||
| FORD | L 6000 | 3176 | 0 | 1990– | ||
| FORD | L 6000 | 3406 | 0 | 1982–1985 | ||
| FORD | L 7000 | 6V92 | 0 | 1984– | ||
| FORD | L 7000 | N14 | 0 | 1984– | ||
| FORD | L 7000 | 3406 | 0 | 1982–1985 | ||
| FORD | L 7000 | 6V71 | 0 | 1984– | ||
| FORD | L 7000 | 8V71 | 0 | 1984– | ||
| FORD | L 7000 | 3176 | 0 | 1990– | ||
| FORD | L 8000 | 3406 | 0 | 1982–1985 | ||
| FORD | L 8000 | 6V92 | 0 | 1984– | ||
| FORD | L 8000 | N14 | 0 | 1984– | ||
| FORD | L 8000 | 6V71 | 0 | 1984– | ||
| FORD | L 8000 | 8V71 | 0 | 1984– | ||
| FORD | L 8000 | 3176 | 0 | 1990– | ||
| FORD | L 9000 | 6V92 | 0 | 1984– | ||
| FORD | L 9000 | N14 | 0 | 1984– | ||
| FORD | L 9000 | 6V71 | 0 | 1984– | ||
| FORD | L 9000 | 3406 | 0 | 1982–1985 | ||
| FORD | L 9000 | 8V71 | 0 | 1984– | ||
| FORD | L 9000 | 3176 | 0 | 1990– | ||
| FREIGHTLINER | C 112 | 0 | 1999– | |||
| FREIGHTLINER | C 112 | 0 | 1996– | |||
| FREIGHTLINER | C 120 | 0 | 1996– | |||
| FREIGHTLINER | FL 112 | 0 | 1997–1998 | |||
| FREIGHTLINER | FLC 112 | 0 | 1998– | |||
| FREIGHTLINER | FLC 120 | 0 | 1998– | |||
| FREIGHTLINER | FLD 112 | 0 | 1998– | |||
| FREIGHTLINER | FLD 120 | 0 | 1998– | |||
| FREIGHTLINER | M2 | 0 | 2003– | |||
| INTERNATIONAL | Various Models | 0 | – | |||
| ISUZU | 2.2 D (KBD27) | CAMPO (KB) | C223 | 53 | Diesel | 1986–1990 |
| ISUZU | 2.2 D 4WD | TROOPER I (UBS) | C223 | 53 | Diesel | 1984–1989 |
| ISUZU | 2.2 D 4WD (KBD42, KBD47) | CAMPO (KB) | C223 | 53 | Diesel | 1983–1990 |
| ISUZU | 2.2 D 4x4 | TROOPER I Open Off-Road Vehicle (UBS) | C223 | 53 | Diesel | 1984–1989 |
| ISUZU | 2.2 TD (UBS52) | TROOPER I Open Off-Road Vehicle (UBS) | C223-T | 72 | Diesel | 1984–1991 |
| KENWORTH | C500 D | 0 | 1998–2003 | |||
| KENWORTH | T2000 | ISX | 0 | 1999–2007 | ||
| KENWORTH | T600 | 0 | 1988–2003 | |||
| KENWORTH | T600 | ISX | 0 | 1999–2007 | ||
| KENWORTH | T600 | ISM | 0 | 1999–2007 | ||
| KENWORTH | T800 | ISM | 0 | 1999–2007 | ||
| KENWORTH | W900 D | 0 | – | |||
| MACK | Various Models | 0 | 1995–2003 | |||
| NEW HOLLAND | 2100 | 3406 | 0 | 1980–1990 | ||
| NEW HOLLAND | 2100 D | 3406 | 0 | 1985– | ||
| NEW HOLLAND | 2115 | 3406 | 0 | 1987–1996 | ||
| NEW HOLLAND | 2115 D | 3406 | 0 | 1987– | ||
| NEW HOLLAND | 6982 | N14 | 0 | 1996–1998 | ||
| NEW HOLLAND | 9280 | LT10A | 0 | 1994–1997 | ||
| NEW HOLLAND | 9282 | 6CTA | 0 | 1996–1998 | ||
| NEW HOLLAND | 9384 | M11 | 0 | 1999–2009 | ||
| NEW HOLLAND | 9480 | NTA855 | 0 | 1994–1997 | ||
| NEW HOLLAND | 9680 | NTA855 | 0 | 1994–1997 | ||
| NEW HOLLAND | 9684 | N14 | 0 | 1999–2009 | ||
| NEW HOLLAND | 9880 | NTA855 | 0 | 1994–1997 | ||
| NEW HOLLAND | TJ375 | 0 | 2002–2012 | |||
| NEW HOLLAND | TJ425 | 0 | 2002–2012 | |||
| NEW HOLLAND | TJ450 | 0 | 2002–2012 | |||
| NEW HOLLAND | 10.8 | 9482 | M11 | 310 | 1996–2000 | |
| NEW HOLLAND | 14.0 | 9882 | N14 | 425 | 1996–2000 | |
| PERKINS | Various Models | 0 | 1988– | |||
| PETERBILT | 320 | ISM | 0 | 2003–2007 | ||
| PETERBILT | 320 | L10 | 0 | 1986–1998 | ||
| PETERBILT | 3377 | 6V71 | 0 | 1991–1993 | ||
| PETERBILT | 357 | 6V71 | 0 | 1991–1993 | ||
| PETERBILT | 357 | L10 | 0 | 1986–2000 | ||
| PETERBILT | 359 | 3406 | 0 | 1979–1985 | ||
| PETERBILT | 362 | 3406 | 0 | 1981–1985 | ||
| PETERBILT | 362 | L10 | 0 | 1984–1999 | ||
| PETERBILT | 362 | 6V71 | 0 | 1991–1993 | ||
| PETERBILT | 372 | 6V71 | 0 | 1988–1993 | ||
| PETERBILT | 375 | L10 | 0 | 1987–1996 | ||
| PETERBILT | 377 | L10 | 0 | 1987–1994 | ||
| PETERBILT | 377 | N14 | 0 | 1987–2003 | ||
| PETERBILT | 378 | 6V71 | 0 | 1991–1993 | ||
| PETERBILT | 378 | L10 | 0 | 1986–1998 | ||
| PETERBILT | 10.8 | 357 | ISM | 0 | 1998–2008 | |
| SSANGYONG | 2.2 D | KORANDO (K5, K9) | DC23 | 68 | Diesel | 1988–1996 |
| VOLVO | Various Models | 0 | 1990– |
