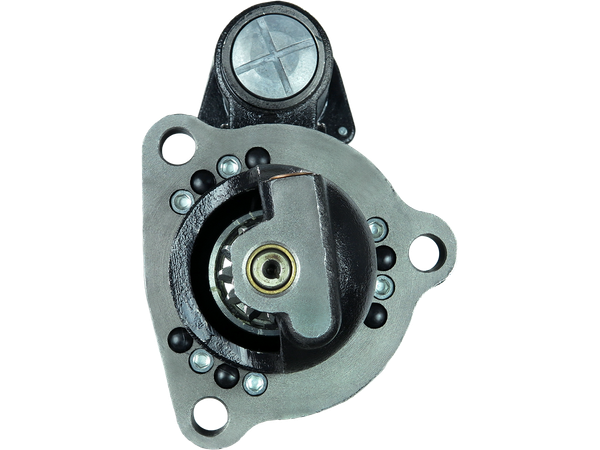

S1143S
Startmotorer
STANDARD LINE
2972 kr
Köp nu
| EAN | 5902129046394 |
| Tillverkare | AS-PL |
| Ersätter | DELCO |
| OE-nummer |
3EFFE: STRF092, STRF782, STRJ646, STRL262, STRS029, STRS208 AINDE: CGB-1083, CGB-1139, CGB-1252, CGB-13479, CGB-1502 AS-PL: S1143S, UD02185S, UD12392S BOSCH: 0001420001, 0001420003, 0001420004, 0001420005, 0001420009, 0001420013, F042003074 CARGO: 110302, 110999, F032110302, F032110999 CASCO: CST60601, CST60601AS, CST60601ES, CST60601GS, CST60601OS, CST60601RS CASE: 114769A1, 673782C91, A187568, L118276 CATERPILLAR: 0R2186, 0R4256, 0R4257, 0R5207, 0R5270, 106-8552, 106-8555, 10R0399, 2071545, 2071560, 25900, 2P2501, 2S0900, 2S900, 3A1872, 3A1872H, 3P0006, 3P0007, 3P0110, 3P3006, 3P3007, 3R7356, 3T2371, 3T2579, 3T2647, 3T2652, 3T2660, 3T2764, 3T2772, 3T4581, 3T4582, 3T4583, 3T4584, 3T4586, 3T6305, 3Y3066, 3Y8852, 4N3181, 4N3182, 4N3347, 4N3348, 4N3350, 4N7752, 4N7901, 4N7905, 5A6494, 5A6495, 5A6522, 5R3155, 5R3857, 6N1889, 6V5207, 6V5226, 6V5227, 6V5537, 6V6707, 7T0798, 7T0799, 7T1082, 7T1799, 8C3597, 8C3647, 8C3650, 8C3651, 8N2145, 9G4337, 9G4339, 9G5584, 9M1662, 9X4447, OR2186, OR4256, OR4257, OR5207 CEVAM: 8824 CUMMINS: 3011895, 3604233RX, 3604321RX, 3604484RX, 3604784RX, 3675120RX, 3902661, 3907821, 3910646, 3938502, 5284105, 5284106 DAF: 1516810R DELCO: 10461025, 10461031, 10461107, 10461136, 10461345, 10461357, 10461358, 10461533, 10478864, 10478939, 10478942, 10478995, 10479115, 10479118, 10479120, 10479136, 10479178, 10479225, 10479245, 10479264, 1109298, 1109831, 1113811, 1113817, 1113827, 1113840, 1113853, 1113901, 1113904, 1113910, 1113919, 1113923, 1113925, 1113928, 1113930, 1113934, 1113942, 1113943, 1113949, 1113950, 1113951, 1113959, 1113960, 1113962, 1113967, 1113969, 1113982, 1113990, 1113991, 1113992, 1113993, 1113998, 1114706, 1114711, 1114712, 1114729, 1114735, 1114740, 1114742, 1114759, 1114767, 1114777, 1114793, 1114805, 1114843, 1114845, 1114856, 1114859, 1114860, 1114862, 1114872, 1114905, 1114910, 1114914, 1114917, 1114945, 1114949, 1114953, 1114968, 1114980, 1114989, 1990204, 1990283, 1990297, 1990324, 1990343, 1990357, 1990359, 1990360, 1990364, 1990366, 1990371, 1990373, 1990402, 1990413, 1990414, 1990432, 1990433, 1990453, 1990455, 1990457, 1990474, 1990497, 1990809, 1993704, 1993796, 1993797, 1993804, 1993808, 1993809, 1993814, 1993815, 1993833, 1993929, 1993940, 1993944, 1993945, 1993982, DRZ5115 DENSO: 128000-7510, 128000-7520, 228000-0070 EAI: 33515 ELECTROLOG: STR2605 ELSTOCK: 45-1267 FIAT: 4816170 FORD: F6HT11001EA, F6HZ11002EA HC PARTS: US823, US863 HELLA: 8EA730303-001, 8EA732855-001 JOHN DEERE: F048972, RE28782, RE38634, RE43047, RE63094, RE69591, SE501454 KOMATSU: 1243215H92 KUHNER: 10797, 254484, 254484D, 254484P, 254876, 255569D, 255569P, 60823, 60823P, 60823W, 60827, 60827M, 60827P, 60863, 60863D LUCAS: LRS01854, LRS1854 MITSUBISHI: M007T03774, M007T03777, M7T03774, M7T03777 PRESTOLITE: A0012670LC, M0017260ME, M0017280ME, M0017422ME, M105R3503SE, M125R3001SEP, M125R3003SEP, M128R3601SE, M128R3837SE, M128R3838SE, MFY6201I, MFY6201K, MFY6401K, MFY6401L, MFY6601I, MFY6601K, MS1-330A, MS1-401A, MS1-410A, MS1-419A, MS1-453, MS7-403, MS7-404, MS7-406, MS7-407, MS7-408 REAL: 20409106BN, 20409106OE SANDO: 6060601 SIDAT: S24DR0089A2 SIOM: ALT136080, ALT4850, MAV626010, MAV626040, MAV626090 STARDAX: STX201301 WAI / TRANSPO: 3948N, 50-152-1, 6360N, 6363N, 6823N, 6907N WOODAUTO: REM1990453, STR20012 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 24 |
| Effekt [ kW ] | 7.50 |
| Startmotors rotation | CW |
| A-storlek [ mm ] | 92.00 |
| B-storlek [ mm ] | 47.00 |
| Antal kuggar [ qty. ] | 12 |
| Antal hål i huvudet [ qty. ] | 3 |
| Antal gängade hål [ qty. ] | 0 |
| L.1 [ mm ] | 501.00 |
| O.1 [ mm ] | 127.00 |
| O.2 [ mm ] | 127.00 |
| O.3 [ mm ] | 127.00 |
| C.1 [ mm ] | 16.50 |
| C.2 [ mm ] | 16.50 |
| C.3 [ mm ] | 16.50 |
| Oil sealed | Yes |
| Wet clutch | Yes |
Passar i 23 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| CASE IH | W18 | 0 | – | |||
| CASE IH | W24 | 0 | – | |||
| CATERPILLAR | 1694 | 0 | 1974–1979 | |||
| CATERPILLAR | 3208 | 0 | 1975–1984 | |||
| CATERPILLAR | 3306 | 0 | 1975–1997 | |||
| CATERPILLAR | 916 Wheel Loader | 0 | 1993– | |||
| CATERPILLAR | 920 Wheel Loader | 0 | 1993– | |||
| CATERPILLAR | 922 B | 0 | 1993– | |||
| FIAT | 8.1 | FA 150 | 8365.25.542 | 0 | 1984–1999 | |
| FIAT | 8.1 | FD 14E | 8365.25.541 | 0 | 1988–1999 | |
| FIAT | 8.1 | FR 160 | 8365.25.. | 0 | 1990– | |
| FIAT | 8.1 Diesel | FA 150 | 8365.25.542 | 0 | 1986–1999 | |
| FIAT | 8.1 Diesel | FD 14E | 8365.25.541 | 0 | 1988–1992 | |
| FIAT | 8.1 Diesel | FR 160 | 8365.25.. | 0 | 1990– | |
| VOLVO | F 16/470 | F16 | TD162FJ | 465 | 1988–1989 | |
| VOLVO | F 16/470 | F16 | TD162F | 465 | 1988–1989 | |
| VOLVO | F 16/470 | F16 | TD162FS | 465 | 1988–1989 | |
| VOLVO | F 16/470 | F16 | TD162FL | 465 | 1988–1989 | |
| VOLVO | F 16/485 | F16 | TD162FL | 486 | 1990–1992 | |
| VOLVO | F 16/485 | F16 | TD162FJ | 486 | 1990–1992 | |
| VOLVO | F 16/485 | F16 | TD162F | 486 | 1990–1992 | |
| VOLVO | F 16/485 | F16 | TD162FS | 486 | 1990–1992 | |
| VOLVO | F 16/500 | F16 | TD163ES | 500 | 1992–1994 |
