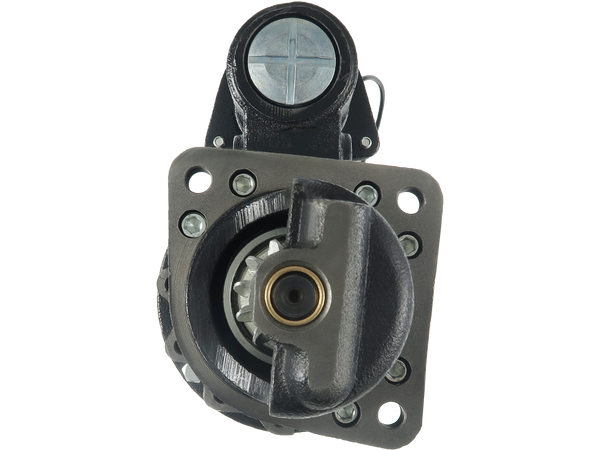

S1320S
Startmotorer
STANDARD LINE
3001 kr
Köp nu
| EAN | 5902129266372 |
| Tillverkare | AS-PL |
| Ersätter | DELCO |
| OE-nummer | 10461204 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 24 |
| Effekt [ kW ] | 7.50 |
| Startmotors rotation | CW |
| A-storlek [ mm ] | 89.00 |
| B-storlek [ mm ] | 44.00 |
| Antal kuggar [ qty. ] | 12 |
| Antal hål i huvudet [ qty. ] | 3 |
| Antal gängade hål [ qty. ] | 0 |
| L.1 [ mm ] | 499.00 |
| O.1 [ mm ] | 92.00 |
| O.2 [ mm ] | 92.00 |
| O.3 [ mm ] | 127.00 |
| C.1 [ mm ] | 11.00 |
| C.2 [ mm ] | 11.00 |
| C.3 [ mm ] | 11.00 |
Passar i 25 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| BARBER GREENE | BG-2455D | C7 | 221 | 2005–2011 | ||
| BARBER GREENE | BG-260D | C7 | 224 | – | ||
| CATERPILLAR | 320B | 3116 | 128 | 1996–2002 | ||
| CATERPILLAR | 320B L | 3116 | 128 | 1996–2002 | ||
| CATERPILLAR | 320B LN | 3116 | 128 | 1996–2002 | ||
| CATERPILLAR | 320B N | 3116 | 128 | 1996–2002 | ||
| CATERPILLAR | 320B S | 3116 | 128 | 1996–2002 | ||
| CATERPILLAR | 324D | C7 | 188 | 2006–2015 | ||
| CATERPILLAR | 324D FM LGP | C7 | 188 | 2006–2015 | ||
| CATERPILLAR | 324D L | C7 | 188 | 2006–2015 | ||
| CATERPILLAR | 325B | 3116 | 168 | 1995–2005 | ||
| CATERPILLAR | 325B L | 3116 | 168 | 1995–2005 | ||
| CATERPILLAR | 325B LN | 3116 | 168 | 1995–2005 | ||
| CATERPILLAR | 325D | C7 | 204 | 2006–2015 | ||
| CATERPILLAR | 325D L | C7 | 204 | 2006–2015 | ||
| CATERPILLAR | 325D LN | C7 | 204 | 2006–2015 | ||
| CATERPILLAR | 328D LCR | C7 | 204 | 2006–2015 | ||
| CATERPILLAR | 329D | C7 | 188 | 2008–2015 | ||
| CATERPILLAR | 329D L | C7 | 188 | 2008–2015 | ||
| CATERPILLAR | 329D LN | C7 | 188 | 2008–2015 | ||
| CATERPILLAR | 950H | C7 | 200 | 2004–2017 | ||
| CATERPILLAR | AP1000D | C7 | 221 | 2005–2011 | ||
| CATERPILLAR | AP1055D | C7 | 221 | 2005–2011 | ||
| CATERPILLAR | AP755 | C7 | 202 | – | ||
| CATERPILLAR | M325D L | C7 | 204 | 2006–2015 |
