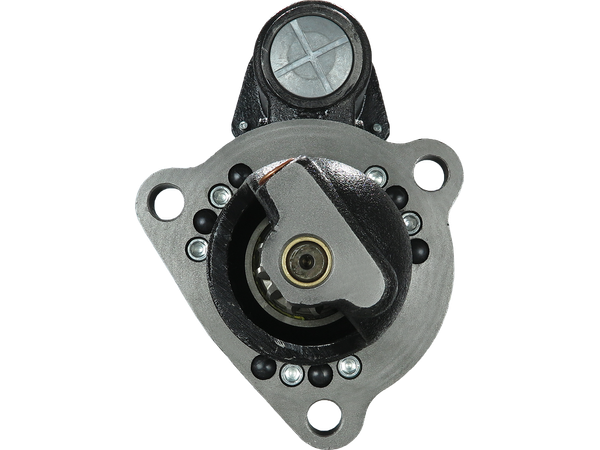

S1006
Startmotorer
STANDARD LINE
2986 kr
Köp nu
| EAN | 5901259421170 |
| Tillverkare | AS-PL |
| Ersätter | DELCO |
| OE-nummer | 1990453 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 24 |
| Effekt [ kW ] | 7.50 |
| Startmotors rotation | CW |
| A-storlek [ mm ] | 92.00 |
| B-storlek [ mm ] | 48.50 |
| Antal kuggar [ qty. ] | 12 |
| Antal kuggar (passar in) [ qty. ] | 12 |
| Antal hål i huvudet [ qty. ] | 3 |
| Antal gängade hål [ qty. ] | 0 |
| L.1 [ mm ] | 502.00 |
| O.1 [ mm ] | 127.00 |
| O.2 [ mm ] | 127.00 |
| O.3 [ mm ] | 127.00 |
| C.1 [ mm ] | 16.50 |
| C.2 [ mm ] | 16.50 |
| C.3 [ mm ] | 16.50 |
| Oil sealed | Yes |
| Wet clutch | Yes |
Passar i 23 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| CASE IH | W18 | 0 | – | |||
| CASE IH | W24 | 0 | – | |||
| CATERPILLAR | 1694 | 0 | 1974–1979 | |||
| CATERPILLAR | 3208 | 0 | 1975–1984 | |||
| CATERPILLAR | 3306 | 0 | 1975–1997 | |||
| CATERPILLAR | 916 Wheel Loader | 0 | 1993– | |||
| CATERPILLAR | 920 Wheel Loader | 0 | 1993– | |||
| CATERPILLAR | 922 B | 0 | 1993– | |||
| FIAT | 8.1 | FA 150 | 8365.25.542 | 0 | 1984–1999 | |
| FIAT | 8.1 | FD 14E | 8365.25.541 | 0 | 1988–1999 | |
| FIAT | 8.1 | FR 160 | 8365.25.. | 0 | 1990– | |
| FIAT | 8.1 Diesel | FA 150 | 8365.25.542 | 0 | 1986–1999 | |
| FIAT | 8.1 Diesel | FD 14E | 8365.25.541 | 0 | 1988–1992 | |
| FIAT | 8.1 Diesel | FR 160 | 8365.25.. | 0 | 1990– | |
| VOLVO | F 16/470 | F16 | TD162FJ | 465 | 1988–1989 | |
| VOLVO | F 16/470 | F16 | TD162F | 465 | 1988–1989 | |
| VOLVO | F 16/470 | F16 | TD162FS | 465 | 1988–1989 | |
| VOLVO | F 16/470 | F16 | TD162FL | 465 | 1988–1989 | |
| VOLVO | F 16/485 | F16 | TD162FL | 486 | 1990–1992 | |
| VOLVO | F 16/485 | F16 | TD162FJ | 486 | 1990–1992 | |
| VOLVO | F 16/485 | F16 | TD162F | 486 | 1990–1992 | |
| VOLVO | F 16/485 | F16 | TD162FS | 486 | 1990–1992 | |
| VOLVO | F 16/500 | F16 | TD163ES | 500 | 1992–1994 |
