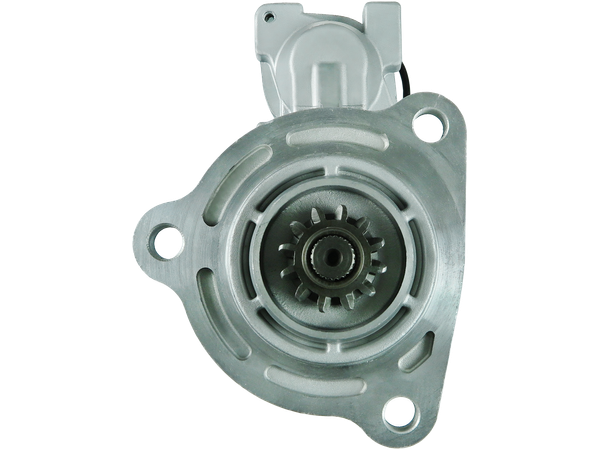

S1136S
Startmotorer
STANDARD LINE
2612 kr
Köp nu
| EAN | 5902129039785 |
| Tillverkare | AS-PL |
| Ersätter | DELCO |
| OE-nummer |
AS-PL: UD12373S ELECTROLOG: STR2155 WAI / TRANSPO: 2-2803-DR |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 12 |
| Effekt [ kW ] | 7.30 |
| Startmotors rotation | CW |
| A-storlek [ mm ] | 91.50 |
| B-storlek [ mm ] | 46.50 |
| Antal kuggar [ qty. ] | 12 |
| Antal hål i huvudet [ qty. ] | 3 |
| Antal gängade hål [ qty. ] | 0 |
| L.1 [ mm ] | 413.00 |
| O.1 [ mm ] | 126.00 |
| O.2 [ mm ] | 126.00 |
| O.3 [ mm ] | 126.00 |
| C.1 [ mm ] | 14.00 |
| C.2 [ mm ] | 14.00 |
| C.3 [ mm ] | 14.00 |
Passar i 16 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| FREIGHTLINER | 12.8 | C120 Century Class | 0 | 2001–2007 | ||
| FREIGHTLINER | 12.8 | Cascadia | 0 | 2008–2013 | ||
| FREIGHTLINER | 12.8 | Century Class | 0 | 2001–2011 | ||
| FREIGHTLINER | 12.8 | Classic | 0 | 2001–2011 | ||
| FREIGHTLINER | 12.8 | Columbia | 0 | 2001–2011 | ||
| FREIGHTLINER | 12.8 | FLD 112 | 0 | 2001–2008 | ||
| FREIGHTLINER | 12.8 | FLD 120 | 0 | 2001–2008 | ||
| FREIGHTLINER | 12.8 | FLD120SD | 0 | 2006–2011 | ||
| FREIGHTLINER | 12.8 | M2 112 | 0 | 2003–2015 | ||
| STERLING | 12.8 | A9500 | 0 | 2003–2010 | ||
| STERLING | 12.8 | AT9500 | 0 | 2003–2008 | ||
| STERLING | 12.8 | L9500 | 0 | 2003–2010 | ||
| STERLING | 12.8 | LT9500 | 0 | 2003–2008 | ||
| WESTERN STAR | 12.8 | 4900 | 0 | 2002–2009 | ||
| WESTERN STAR | 12.8 | 4900FA | 0 | 2003–2013 | ||
| WESTERN STAR | 12.8 | 4900SA | 0 | 2003–2011 |
