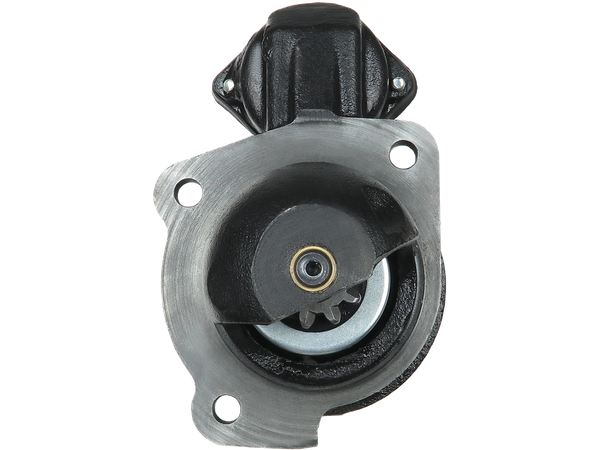

S1188S
Startmotorer
STANDARD LINE
1436 kr
Köp nu
| EAN | 5902129110118 |
| Tillverkare | AS-PL |
| Ersätter | DELCO |
| OE-nummer | 1107557 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 12 |
| Effekt [ kW ] | 3.00 |
| Startmotors rotation | CW |
| A-storlek [ mm ] | 89.00 |
| B-storlek [ mm ] | 47.00 |
| Antal kuggar [ qty. ] | 10 |
| Antal hål i huvudet [ qty. ] | 3 |
| Antal gängade hål [ qty. ] | 0 |
| L.1 [ mm ] | 345.00 |
| O.1 [ mm ] | 127.00 |
| O.2 [ mm ] | 90.00 |
| O.3 [ mm ] | 90.00 |
| C.1 [ mm ] | 11.00 |
| C.2 [ mm ] | 11.00 |
| C.3 [ mm ] | 11.00 |
| Oil sealed | Yes |
| Wet clutch | Yes |
Passar i 13 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| HYSTER | H 30 | 4.203 | 0 | 1971–1978 | ||
| HYSTER | H 40 | 4.203 | 0 | 1971–1978 | ||
| HYSTER | H 70 | 4.203 | 0 | 1978– | ||
| HYSTER | H50 | 4.203 | 0 | 1971–1978 | ||
| HYSTER | H60 | 4.203 | 0 | 1978– | ||
| HYSTER | H80 | 4.203 | 0 | 1978– | ||
| HYSTER | H90 | 4.203 | 0 | 1978– | ||
| HYSTER | S 70 | 4.203 | 0 | 1976– | ||
| HYSTER | S100 | 4.203 | 0 | 1976– | ||
| HYSTER | S60 | 4.203 | 0 | 1976– | ||
| HYSTER | S80 | 4.203 | 0 | 1976– | ||
| HYSTER | 3.9 | H-110 | 4.236 | 0 | 1972–1977 | |
| HYSTER | 3.9 | H-130 | 4.236 | 0 | 1972–1977 |
