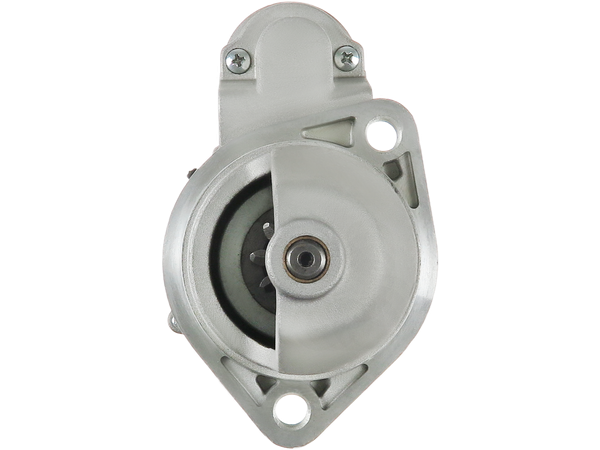

S9414S
Startmotorer
STANDARD LINE
1436 kr
Köp nu
| EAN | 5902129132059 |
| Tillverkare | AS-PL |
| Ersätter | ISKRA / LETRIKA |
| OE-nummer | IS1073 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 12 |
| Effekt [ kW ] | 2.60 |
| Startmotors rotation | CW |
| A-storlek [ mm ] | 82.00 |
| B-storlek [ mm ] | 23.00 |
| Antal kuggar [ qty. ] | 9 |
| Antal hål i huvudet [ qty. ] | 2 |
| Antal gängade hål [ qty. ] | 0 |
| L.1 [ mm ] | 250.00 |
| O.1 [ mm ] | 101.00 |
| C.1 [ mm ] | 11.00 |
| C.2 [ mm ] | 11.00 |
Passar i 11 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| GENIE | 3.7 | GTH-3007 | TD2011L04W | 0 | 2005– | |
| HOLDER | 4.1 | C9.78H | BF4M2012 | 0 | 2000– | |
| KHD | 3.0 | Engine | BF4M2011 | 0 | 2000– | |
| KHD | 3.2 | Engine | BF4L2011 | 0 | 2002– | |
| TEREX | Atlet 2506 | 0 | 2004– | |||
| TEREX | 3.7 | Atlet 3007 | TD2011L04W | 0 | 2004– | |
| TEREX | 3.7 | TC75 | TD2011L04W | 0 | 2005– | |
| VOLVO | 3.7 | L20 B | D3.6D | 0 | 2002–2009 | |
| VOLVO | 3.7 | L25 B | D3.6D | 0 | 2002–2009 | |
| VOLVO | 3.7 | L30 B | D3.6D | 0 | 2000– | |
| VOLVO | 3.7 | L35 B | D3.6D | 0 | 2000– |
