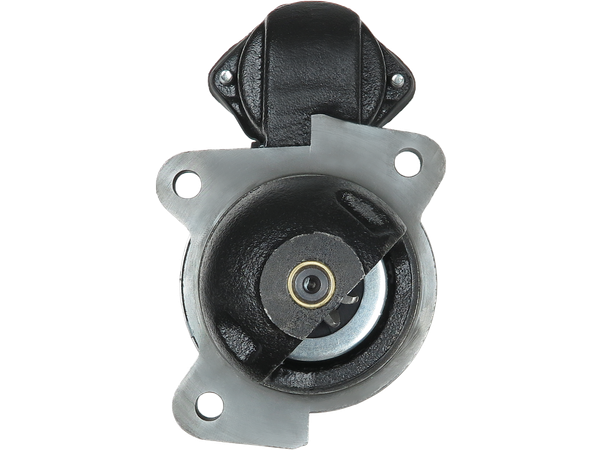

S1190S
Startmotorer
STANDARD LINE
1304 kr
Köp nu
| EAN | 5902129110453 |
| Tillverkare | AS-PL |
| Ersätter | DELCO |
| OE-nummer | 1107204 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 12 |
| Effekt [ kW ] | 1.40 |
| Startmotors rotation | CW |
| A-storlek [ mm ] | 89.00 |
| B-storlek [ mm ] | 47.50 |
| Antal kuggar [ qty. ] | 9 |
| Antal hål i huvudet [ qty. ] | 3 |
| Antal gängade hål [ qty. ] | 0 |
| L.1 [ mm ] | 306.00 |
| O.1 [ mm ] | 127.00 |
| O.2 [ mm ] | 90.00 |
| O.3 [ mm ] | 90.00 |
| C.1 [ mm ] | 11.00 |
| C.2 [ mm ] | 11.00 |
| C.3 [ mm ] | 11.00 |
| Oil sealed | Yes |
Passar i 84 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| HYSTER | C450 | F-245 | 0 | 1966–1970 | ||
| HYSTER | C500 | F-245 | 0 | 1963–1970 | ||
| HYSTER | C500 | F-244 | 0 | 1967–1976 | ||
| HYSTER | C550 | F-245 | 0 | 1967–1970 | ||
| HYSTER | C70C | 0 | 1963–1967 | |||
| HYSTER | C70CP | 0 | 1963–1967 | |||
| HYSTER | H 20 | 0 | 1963–1977 | |||
| HYSTER | H 25 | 0 | 1970–1976 | |||
| HYSTER | H 70 | 0 | 1971–1977 | |||
| HYSTER | H100B | 0 | 1999–2006 | |||
| HYSTER | H100C | 0 | 1962–1970 | |||
| HYSTER | H110-150F | 0 | 1985–2001 | |||
| HYSTER | H120B | 0 | 1999–2006 | |||
| HYSTER | H120C | 0 | 1960–1970 | |||
| HYSTER | H150-275F | 0 | 1985–2001 | |||
| HYSTER | H20E | 0 | 1963–1977 | |||
| HYSTER | H25E | 0 | 1970–1976 | |||
| HYSTER | H30-60H (D3) | 0 | 1971–1977 | |||
| HYSTER | H30H | 0 | 1980–1999 | |||
| HYSTER | H40H | 0 | 1968–1988 | |||
| HYSTER | H50H | 0 | 1967–1970 | |||
| HYSTER | H60 | F-163 | 0 | 1970–1976 | ||
| HYSTER | H60B | 0 | 1960–1963 | |||
| HYSTER | H60C | 0 | 1960–1970 | |||
| HYSTER | H60CP | 0 | 1963–1970 | |||
| HYSTER | H60H | 0 | 1963–1970 | |||
| HYSTER | H70B | 0 | 1960–1962 | |||
| HYSTER | H70C | 0 | 1966–1970 | |||
| HYSTER | H70CP | 0 | 1962–1966 | |||
| HYSTER | H80 | 0 | 1971–1978 | |||
| HYSTER | H80B | 0 | 1960–1962 | |||
| HYSTER | H80C | 0 | 1960–1970 | |||
| HYSTER | H80CP | 0 | 1963–1970 | |||
| HYSTER | KE | F-163 | 0 | 1963–1969 | ||
| HYSTER | KE | 0 | 1960–1962 | |||
| HYSTER | KE | F-245 | 0 | 1965–1985 | ||
| HYSTER | KE100 | F-245 | 0 | 1965–1985 | ||
| HYSTER | KE100 | 0 | 1970–1976 | |||
| HYSTER | P60 | 0 | 1967–1980 | |||
| HYSTER | P60-80A | 0 | 1966–1970 | |||
| HYSTER | P60A | 0 | 1970–1976 | |||
| HYSTER | P80 | 0 | 1970–1977 | |||
| HYSTER | S 70 | 0 | 1971–1976 | |||
| HYSTER | S100 | 0 | 1971–1976 | |||
| HYSTER | S100 | 0 | 1963–1966 | |||
| HYSTER | S100A | 0 | 1971–1976 | |||
| HYSTER | S100A-P | 0 | 1961–1966 | |||
| HYSTER | S100B | 0 | 1961–1966 | |||
| HYSTER | S100PS | 0 | 1967–1970 | |||
| HYSTER | S125 | 0 | 1970–1977 | |||
| HYSTER | S125-150A | 0 | 1970–1977 | |||
| HYSTER | S150 | 0 | 1971–1977 | |||
| HYSTER | S30 | 0 | 1985–2001 | |||
| HYSTER | S30 | 0 | 1963–1970 | |||
| HYSTER | S30-50C | 0 | 1985–2001 | |||
| HYSTER | S30B | 0 | 1963–1970 | |||
| HYSTER | S40 | 0 | 1985–2001 | |||
| HYSTER | S40 | 0 | 1963–1970 | |||
| HYSTER | S40B | 0 | 1985–2001 | |||
| HYSTER | S40C | 0 | 1963–1970 | |||
| HYSTER | S50 | 0 | 1963–1966 | |||
| HYSTER | S50B | 0 | 1963–1970 | |||
| HYSTER | S50C | 0 | 1965–1970 | |||
| HYSTER | S50F | 0 | 1985–2001 | |||
| HYSTER | S60 | 0 | 1967–1976 | |||
| HYSTER | S60B | 0 | 1963–1984 | |||
| HYSTER | S60ES | 0 | 1985–2001 | |||
| HYSTER | S70B | 0 | 1963–1969 | |||
| HYSTER | S70B | 0 | 1971–1976 | |||
| HYSTER | S70PS | 0 | 1967–1970 | |||
| HYSTER | S80 | 0 | 1971–1976 | |||
| HYSTER | S80 | 0 | 1996–2006 | |||
| HYSTER | S80B | 0 | 1971–1976 | |||
| HYSTER | S80B | S80B | 0 | 1967–1970 | ||
| HYSTER | S80PS | 0 | 1967–1970 | |||
| HYSTER | SB30B | 0 | 1960–1963 | |||
| HYSTER | SB30BP | 0 | 1960–1963 | |||
| HYSTER | SB40B | 0 | 1960–1963 | |||
| HYSTER | SSB50B | 0 | 1960–1963 | |||
| HYSTER | Various Models | F-244 | 0 | 1961–1962 | ||
| HYSTER | 2.5 | H10-150F | 0 | 1963–1967 | ||
| HYSTER | 2.5 | H40-60JS | 0 | 1985–2001 | ||
| HYSTER | 4.1 | H10-150F | 0 | 1985–1986 | ||
| HYSTER | 4.1 | H160-110E | 0 | 1985–1986 |
