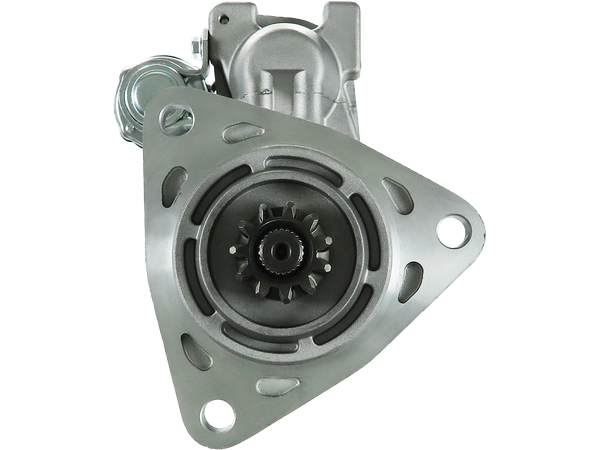

S1203S
Startmotorer
STANDARD LINE
2610 kr
Köp nu
| EAN | 5902129112914 |
| Tillverkare | AS-PL |
| Ersätter | DELCO |
| OE-nummer | 8200733 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 24 |
| Effekt [ kW ] | 5.50 |
| Startmotors rotation | CW |
| A-storlek [ mm ] | 92.00 |
| B-storlek [ mm ] | 47.00 |
| Antal kuggar [ qty. ] | 11 |
| Antal hål i huvudet [ qty. ] | 3 |
| Antal gängade hål [ qty. ] | 0 |
| L.1 [ mm ] | 407.00 |
| O.1 [ mm ] | 126.00 |
| O.2 [ mm ] | 126.00 |
| O.3 [ mm ] | 126.00 |
| C.1 [ mm ] | 13.50 |
| C.2 [ mm ] | 13.50 |
| C.3 [ mm ] | 13.50 |
Passar i 138 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| SCANIA | 10.6 | 340 | DC11.08 | 0 | 2004– | |
| SCANIA | 10.6 | 380 | DC11.09 | 0 | 2004– | |
| SCANIA | 11.0 | P 340 | DC11.08 | 0 | 2004– | |
| SCANIA | 11.0 | P 340 | DC11.08 | 0 | 2008– | |
| SCANIA | 11.0 | P 380 | DC11.09 | 0 | 2004– | |
| SCANIA | 11.7 | 230 | DC12.13 | 0 | 2005– | |
| SCANIA | 11.7 | 270 | DC12.17 | 0 | 2004– | |
| SCANIA | 11.7 | 340 | DC12.26 | 0 | 2004– | |
| SCANIA | 11.7 | 340 | DC12.10 | 0 | 2004– | |
| SCANIA | 11.7 | 340 | DC12.10 | 0 | 2006– | |
| SCANIA | 11.7 | 340 | DC12.17 | 0 | 2005– | |
| SCANIA | 11.7 | 340 | DC12.13 | 0 | 2005– | |
| SCANIA | 11.7 | 380 | DC12.18 | 0 | 2004– | |
| SCANIA | 11.7 | 380 | DC12.13 | 0 | 2006– | |
| SCANIA | 11.7 | 380 | DC12.13 | 0 | 2010– | |
| SCANIA | 11.7 | 380 | DC12.13 | 0 | 2004– | |
| SCANIA | 11.7 | 380 | DC12.17 | 0 | 2008– | |
| SCANIA | 11.7 | 380 | DC12.13 | 0 | 2005– | |
| SCANIA | 11.7 | 380 | DC12.13 | 0 | 2008– | |
| SCANIA | 11.7 | 380 | DC12.17 | 0 | 2005– | |
| SCANIA | 11.7 | 420 | DT12.12 | 0 | 2005– | |
| SCANIA | 11.7 | 420 | DC12.15 | 0 | 2006– | |
| SCANIA | 11.7 | 420 | DC12.14 | 0 | 2006– | |
| SCANIA | 11.7 | 420 | DC12.06 | 0 | 2005– | |
| SCANIA | 11.7 | 420 | DT12.14 | 0 | 2005– | |
| SCANIA | 11.7 | 420 | DT12.11 | 0 | 2004– | |
| SCANIA | 11.7 | 420 | DC12.15 | 0 | 2004– | |
| SCANIA | 11.7 | 420 | DC12.14 | 0 | 2004– | |
| SCANIA | 11.7 | 420 | DT12.12 | 0 | 2004– | |
| SCANIA | 11.7 | 470 | DT12.03 | 0 | 2004– | |
| SCANIA | 11.7 | 470 | DT12.06 | 0 | 2004– | |
| SCANIA | 11.7 | 470 | DT12.06 | 0 | 2005– | |
| SCANIA | 11.7 | 480 | DT12.17 | 0 | 2008– | |
| SCANIA | 11.7 | 480 | DT12.03 | 0 | 2004– | |
| SCANIA | 11.7 | 480 | DT12.17 | 0 | 2006– | |
| SCANIA | 11.7 | 480 | DT12.17 | 0 | 2004– | |
| SCANIA | 11.7 | G 420 | DC12.06 | 0 | 2008– | |
| SCANIA | 11.7 | G 440 | DT12.18 | 0 | 2008– | |
| SCANIA | 11.7 | G 440 | DT12.18 | 0 | 2007– | |
| SCANIA | 11.7 | G 470 | DT12.06 | 0 | 2010– | |
| SCANIA | 11.7 | P 420 | DT12.12 | 0 | 2005–2011 | |
| SCANIA | 11.7 | P 420 | DC12.06 | 0 | 2005–2011 | |
| SCANIA | 11.7 | P 420 | DC12.15 | 0 | 2005–2011 | |
| SCANIA | 11.7 | P 420 | DT12.11 | 0 | 2005–2011 | |
| SCANIA | 11.7 | P 420 | DC12.06 | 0 | 2008– | |
| SCANIA | 11.7 | P 420 | DC12.22 | 0 | 2005–2011 | |
| SCANIA | 11.7 | P 420 | DC12.14 | 0 | 2004–2011 | |
| SCANIA | 11.7 | R 440 | DT12.18 | 0 | 2008– | |
| SCANIA | 11.7 | R 470 | DT12.03 | 0 | 2004– | |
| SCANIA | 11.7 | R 470 | DT12.06 | 0 | 2004– | |
| SCANIA | 12.7 | 360 | DC13.06 | 0 | 2010– | |
| SCANIA | 12.7 | 360 | DC13.114 | 0 | 2010– | |
| SCANIA | 12.7 | 360 | DC13.06 | 0 | 2009– | |
| SCANIA | 12.7 | 400 | DC13.05 | 0 | 2010– | |
| SCANIA | 12.7 | 400 | DC13.05 | 0 | 2009– | |
| SCANIA | 12.7 | 400 | DC13.113 | 0 | 2009– | |
| SCANIA | 12.7 | 400 | DC13.103 | 0 | 2010– | |
| SCANIA | 12.7 | 400 | DC13.05 | 0 | 2008– | |
| SCANIA | 12.7 | 400 | DC13.113 | 0 | 2010– | |
| SCANIA | 12.7 | 440 | DC13.10 | 0 | 2010– | |
| SCANIA | 12.7 | 440 | DC13.109 | 0 | 2010– | |
| SCANIA | 12.7 | 440 | DC13.112 | 0 | 2010– | |
| SCANIA | 12.7 | 440 | DC13.10 | 0 | 2009– | |
| SCANIA | 12.7 | 440 | DC13.112 | 0 | 2009– | |
| SCANIA | 12.7 | 440 | DC13.10 | 0 | 2008– | |
| SCANIA | 12.7 | 440 | DC13.121 | 0 | 2010– | |
| SCANIA | 12.7 | 450 | DC13.124 | 0 | 2013– | |
| SCANIA | 12.7 | 480 | DC13.111 | 0 | 2010– | |
| SCANIA | 12.7 | 480 | DC13.07 | 0 | 2010– | |
| SCANIA | 12.7 | 480 | DC13.07 | 0 | 2008– | |
| SCANIA | 12.7 | 480 | DC13.110 | 0 | 2010– | |
| SCANIA | 12.7 | 490 | DC13.125 | 0 | 2013– | |
| SCANIA | 12.7 | G 440 | 0 | 2012– | ||
| SCANIA | 12.7 | G 460 | 0 | 2013– | ||
| SCANIA | 12.7 | G 480 | DC13.07 | 0 | 2012– | |
| SCANIA | 12.7 | G 480 | DC13.111 | 0 | 2012– | |
| SCANIA | 12.7 | P 360 | 0 | 2012– | ||
| SCANIA | 12.7 | P 400 | DC13.113 | 0 | 2007– | |
| SCANIA | 12.7 | P 400 | DC13.05 | 0 | 2007– | |
| SCANIA | 12.7 | R 440 | DC13.112 | 0 | 2012– | |
| SCANIA | 12.7 | R 440 | DC13.109 | 0 | 2012– | |
| SCANIA | 12.7 | R 440 | DC13.10 | 0 | 2012– | |
| SCANIA | 12.7 | R 450 | DC13.147 | 0 | 2013– | |
| SCANIA | 12.7 | R 480 | DC13.07 | 0 | 2012– | |
| SCANIA | 12.7 | R 480 | DC13.111 | 0 | 2012– | |
| SCANIA | 12.7 | R 480 | DC13.110 | 0 | 2012– | |
| SCANIA | 8.9 | 230 | DC9.16 | 0 | 2006– | |
| SCANIA | 8.9 | 230 | DC9.13 | 0 | 2006– | |
| SCANIA | 8.9 | 230 | DC9.16 | 0 | 2007– | |
| SCANIA | 8.9 | 230 | DC9.13 | 0 | 2008– | |
| SCANIA | 8.9 | 230 | DC9.18 | 0 | 2004– | |
| SCANIA | 8.9 | 230 | DC9.16 | 0 | 2005– | |
| SCANIA | 8.9 | 230 | DC9.13 | 0 | 2004– | |
| SCANIA | 8.9 | 230 | DC9.13 | 0 | 2007– | |
| SCANIA | 8.9 | 230 | DC9.16 | 0 | 2008– | |
| SCANIA | 8.9 | 230 | DC9.16 | 0 | 2004– | |
| SCANIA | 8.9 | 270 | DC9.12 | 0 | 2004– | |
| SCANIA | 8.9 | 270 | DC9.17 | 0 | 2006– | |
| SCANIA | 8.9 | 270 | DC9.12 | 0 | 2006– | |
| SCANIA | 8.9 | 270 | DC9.17 | 0 | 2004– | |
| SCANIA | 8.9 | 310 | DC9.18 | 0 | 2006– | |
| SCANIA | 8.9 | 310 | DC9.17 | 0 | 2004– | |
| SCANIA | 8.9 | 310 | DC9.11 | 0 | 2004– | |
| SCANIA | 8.9 | 310 | DC9.18 | 0 | 2004– | |
| SCANIA | 8.9 | 310 | DC9.11 | 0 | 2008– | |
| SCANIA | 8.9 | 310 | DC9.11 | 0 | 2006– | |
| SCANIA | 8.9 | P 270 | 0 | 2012– | ||
| SCANIA | 8.9 | P 310 | 0 | 2007–2012 | ||
| SCANIA | 9.0 | P 310 | DC9.11 | 0 | 2010– | |
| SCANIA | 9.3 | 230 | DC9.30 | 0 | 2007– | |
| SCANIA | 9.3 | 230 | DC9.39 | 0 | 2007– | |
| SCANIA | 9.3 | 230 | DC9.35 | 0 | 2007– | |
| SCANIA | 9.3 | 250 | DC09.111 | 0 | 2013– | |
| SCANIA | 9.3 | 280 | DC09.113 | 0 | 2012– | |
| SCANIA | 9.3 | 280 | DC9.38 | 0 | 2013– | |
| SCANIA | 9.3 | 280 | DC9.36 | 0 | 2012– | |
| SCANIA | 9.3 | 280 | DC9.29 | 0 | 2007– | |
| SCANIA | 9.3 | 280 | DC9.38 | 0 | 2009– | |
| SCANIA | 9.3 | 280 | DC9.29 | 0 | 2009– | |
| SCANIA | 9.3 | 280 | DC09.113 | 0 | 2009– | |
| SCANIA | 9.3 | 280 | DC9.38 | 0 | 2012– | |
| SCANIA | 9.3 | 280 | DC9.36 | 0 | 2009– | |
| SCANIA | 9.3 | 280 | DC09.113 | 0 | 2013– | |
| SCANIA | 9.3 | 280 | DC9.36 | 0 | 2013– | |
| SCANIA | 9.3 | 320 | DC9.32 | 0 | 2009– | |
| SCANIA | 9.3 | 320 | DC9.37 | 0 | 2009– | |
| SCANIA | 9.3 | 320 | DC9.22 | 0 | 2009– | |
| SCANIA | 9.3 | 320 | DC09.108 | 0 | 2009– | |
| SCANIA | 9.3 | 360 | DC09.112 | 0 | 2013– | |
| SCANIA | 9.3 | G 230 | DC9.30 | 0 | 2007– | |
| SCANIA | 9.3 | G 230 | DC9.39 | 0 | 2007– | |
| SCANIA | 9.3 | G 230 | DC9.35 | 0 | 2007– | |
| SCANIA | 9.3 | P 230 | DC9.35 | 0 | 2007– | |
| SCANIA | 9.3 | P 230 | DC9.30 | 0 | 2007– | |
| SCANIA | 9.3 | P 230 | DC9.39 | 0 | 2007– | |
| SCANIA | 9.3 | P 270 | DC09.E02 | 0 | 2012– | |
| SCANIA | 9.3 | P 310 | OC9.G05 | 0 | 2011– | |
| SCANIA | 9.3 | P 340 | OC09.102 | 0 | 2011– |
