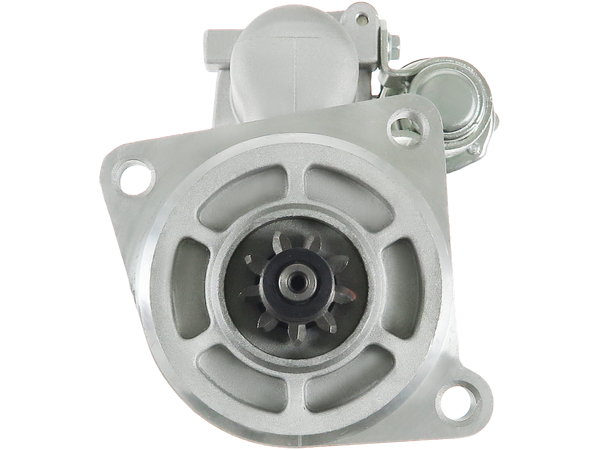

S1240S
Startmotorer
STANDARD LINE
2270 kr
Köp nu
| EAN | 5902129137740 |
| Tillverkare | AS-PL |
| Ersätter | DELCO |
| OE-nummer | 8200851 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 24 |
| Effekt [ kW ] | 4.00 |
| Startmotors rotation | CW |
| A-storlek [ mm ] | 98.50 |
| B-storlek [ mm ] | 25.50 |
| Antal kuggar [ qty. ] | 9 |
| Antal hål i huvudet [ qty. ] | 3 |
| Antal gängade hål [ qty. ] | 0 |
| L.1 [ mm ] | 307.00 |
| O.1 [ mm ] | 90.00 |
| O.2 [ mm ] | 90.00 |
| O.3 [ mm ] | 127.00 |
| C.1 [ mm ] | 11.00 |
| C.2 [ mm ] | 11.00 |
| C.3 [ mm ] | 11.00 |
Passar i 7 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| CASE IH | CX 100 | 1004.40T | 0 | 2012– | ||
| MWM | 4.8 | Engine | 4.12 | 0 | 2012– | |
| MWM | 7.2 | Engine | 6.12TG | 0 | 2012– | |
| MWM | 7.2 | Engine | 6.12 | 0 | 2012– | |
| MWM | 7.2 | Engine | 6.12TCA | 0 | 2012– | |
| MWM | 7.2 | Engine | 6.12T | 0 | 2012– | |
| MWM | 7.2 | Engine | 4.10T | 0 | 2012– |
