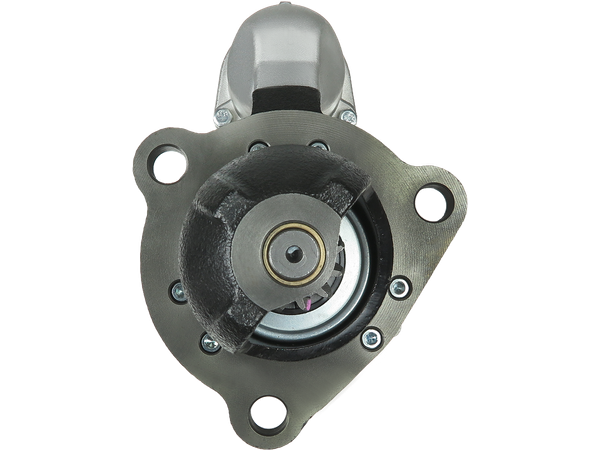

S9442S
Startmotorer
STANDARD LINE
2276 kr
Köp nu
| EAN | 5902129147749 |
| Tillverkare | AS-PL |
| Ersätter | NIKKO |
| OE-nummer |
AINDE: CGB-93290, CGB-93290R AS-PL: UD21193S CASCO: CST50638GS DIXIE: 244-75213C, S-8952 ELECTROLOG: STR8871 ELSTOCK: 45-4434 KOMATSU: 600-813-3550, 600-813-3551, 600-813-6410, 600-813-6411, 600-813-6412, 600-813-6421, 600-813-6510, 600-813-6520, 600-813-6521, 600-813-6530, 600-8913-6411 KRAUF: STK3499 KUHNER: 255204, 255204N, 255204P LUCAS: LRS02761, LRS2761 NIKKO: 0-23000-3290, 0-23000-3291, 0-23000-3292, 0-23000-3295, 0-23000-3300, 0-23000-3301, 0-23000-6310 PSH: 941.503.123.265, 941.503.123.710, S144.572 REAL: 20446836OE ROBERT'S: 185-23004 SANDO: 6050638.1 WAI / TRANSPO: 19939N WILSON: 91-28-4051 WOODAUTO: STR75211 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 24 |
| Effekt [ kW ] | 7.50 |
| Startmotors rotation | CW |
| A-storlek [ mm ] | 92.00 |
| B-storlek [ mm ] | 46.00 |
| Antal kuggar [ qty. ] | 12 |
| Antal hål i huvudet [ qty. ] | 3 |
| Antal gängade hål [ qty. ] | 0 |
| L.1 [ mm ] | 412.00 |
| O.1 [ mm ] | 126.00 |
| O.2 [ mm ] | 126.00 |
| O.3 [ mm ] | 126.00 |
| C.1 [ mm ] | 17.00 |
| C.2 [ mm ] | 17.00 |
| C.3 [ mm ] | 17.00 |
| Oil sealed | Yes |
| Wet clutch | Yes |
Passar i 3 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| KOMATSU | PC300 | SA6D108-2 | 0 | 2000– | ||
| KOMATSU | WA320 | S6D108 | 0 | 1997– | ||
| KOMATSU | 8.2 | PC340 LC7 | SAA6D114E-2 | 0 | 2002–2005 |
