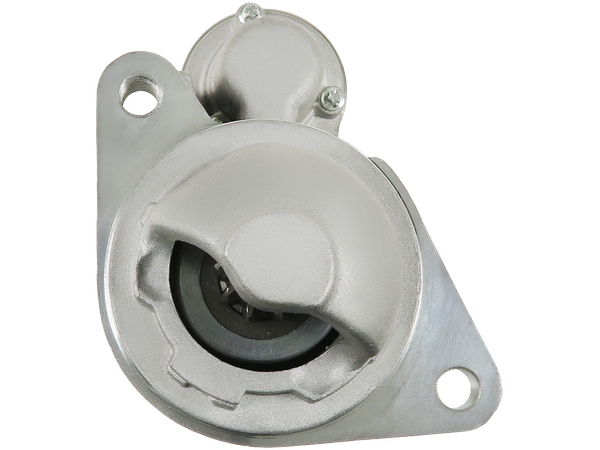

S1266S
Startmotorer
STANDARD LINE
930 kr
Köp nu
| EAN | 5902129158691 |
| Tillverkare | AS-PL |
| Ersätter | DELCO |
| OE-nummer |
AS-PL: UD90341S CASCO: CST60168AS CEVAM: 3542 DELCO: 8000158, 9000890 DIXIE: 201-12102 DOOSAN: A403559, A413593 ELECTROLOG: STR2225 HYSTER: 1548620 KRAUF: STD0015 POWERMAX: 88213645 PSH: 640.546.092.030, S134.890 REAL: 20409861BN ROBERT'S: 140-10520 SANDO: 6060168.0 WAI / TRANSPO: 22761DR2, 6984N WILSON: 91-01-4793 WOODAUTO: STR80149 YALE: 580044885, YT580044885 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 12 |
| Effekt [ kW ] | 1.00 |
| Startmotors rotation | CW |
| A-storlek [ mm ] | 82.00 |
| B-storlek [ mm ] | 18.00 |
| Antal kuggar [ qty. ] | 9 |
| Antal hål i huvudet [ qty. ] | 2 |
| Antal gängade hål [ qty. ] | 1 |
| L.1 [ mm ] | 212.00 |
| O.1 [ mm ] | 114.00 |
| C.1 [ mm ] | 10.50 |
| C.2 [ mm ] | M12x1.75 |
Passar i 136 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| DOOSAN | 2.4 | D15S-5 | 0 | – | ||
| DOOSAN | 2.4 | D18S-5 | 0 | – | ||
| DOOSAN | 2.4 | D20SC-5 | 0 | – | ||
| DOOSAN | 2.4 | G20E-5 | 0 | – | ||
| DOOSAN | 2.4 | G20P-5 | 0 | – | ||
| DOOSAN | 2.4 | G25P-5 | 0 | – | ||
| DOOSAN | 2.4 | G30E-5 | 0 | – | ||
| DOOSAN | 2.4 | G30P-5 | 0 | – | ||
| DOOSAN | 2.4 | G33P-5 | 0 | – | ||
| DOOSAN | 2.4 | G35C-5 | 0 | – | ||
| FIAT | 1.1 | RITMO (138_) | 146A4.048 | 58 | Petrol | 1985–1987 |
| FIAT | 1.3 Turbo i.e. | UNO (146_, 158_) | 146A2.146 | 99 | Petrol | 1987–1987 |
| FIAT | 1.3 Turbo i.e. | UNO (146_, 158_) | 146A2.246 | 101 | Petrol | 1989–1991 |
| FIAT | 1.3 Turbo i.e. | UNO (146_, 158_) | 146A2.000 | 105 | Petrol | 1985–1989 |
| FIAT | 1.4 | FIORINO Pick up (146_) | 146D5.000 | 67 | Petrol | 1994–2001 |
| FIAT | 1.4 | PALIO (178_, 171_, 371_) | 178B2.000 | 69 | Petrol | 1996–2002 |
| FIAT | 1.4 | SIENA (178_, 172_, 372_) | 178B2.000 | 69 | Petrol | 1996–2009 |
| FIAT | 1.4 (146RE) | FIORINO MPV (146_) | 146D5.000 | 67 | Petrol | 1996–2000 |
| FIAT | 1.4 (160.AC) | TIPO (160_) | 160A1.000 | 71 | Petrol | 1987–1989 |
| FIAT | 1.4 (160.AC) | TIPO (160_) | 160A1.048 | 71 | Petrol | 1987–1989 |
| FIAT | 1.4 Cat | PALIO (178_, 171_, 371_) | 178B2.016 | 69 | Petrol | 1996–2001 |
| FIAT | 1.4 Cat | SIENA (178_, 172_, 372_) | 178B2.016 | 69 | Petrol | 1996–2009 |
| FIAT | 1.4 GT Turbo (176AD_) | PUNTO (176_) | 176A4.000 | 133 | Petrol | 1993–1997 |
| FIAT | 1.4 GT Turbo (176AS_) | PUNTO (176_) | 176B6.000 | 131 | Petrol | 1996–1999 |
| FIAT | 1.4 Turbo i.e. | UNO (146_, 158_) | 146A8.000 | 118 | Petrol | 1989–1996 |
| FIAT | 1.4 Turbo i.e. | UNO (146_, 158_) | 146A8.046 | 112 | Petrol | 1989–1993 |
| FIAT | 1.4 i.e. | TIPO (160_) | 159A2.000 | 78 | Petrol | 1989–1995 |
| FIAT | 1.4 i.e. (159.AA) | TEMPRA (159_) | 159A2.000 | 78 | Petrol | 1991–1996 |
| FIAT | 1.4 i.e. (159.AC) | TEMPRA S.W. (159_) | 159A2.000 | 78 | Petrol | 1991–1996 |
| FIAT | 1.4 i.e. (159.AC, 159.AX) | TEMPRA (159_) | 836A4.000 | 69 | Petrol | 1990–1996 |
| FIAT | 1.4 i.e. (159.AC, 159.AX) | TEMPRA (159_) | 160A1.046 | 69 | Petrol | 1990–1996 |
| FIAT | 1.4 i.e. (159.AC, 159.AX) | TEMPRA (159_) | 159A2.000 | 69 | Petrol | 1990–1996 |
| FIAT | 1.4 i.e. (159.AC, 159.AX) | TEMPRA S.W. (159_) | 159A2.000 | 69 | Petrol | 1992–1996 |
| FIAT | 1.4 i.e. (159.AC, 159.AX) | TEMPRA S.W. (159_) | 836A4.000 | 69 | Petrol | 1992–1996 |
| FIAT | 1.4 i.e. (159.AC, 159.AX) | TEMPRA S.W. (159_) | 160A1.046 | 69 | Petrol | 1992–1996 |
| FIAT | 1.4 i.e. (160.AP, 160.AD, 160.EA) | TIPO (160_) | 160A1.046 | 70 | Petrol | 1989–1995 |
| FIAT | 1.4 i.e. (160.AP, 160.AD, 160.EA) | TIPO (160_) | 836A4.000 | 70 | Petrol | 1989–1995 |
| FIAT | 1.4 i.e. (160.AP, 160.AD, 160.EA) | TIPO (160_) | 160A1.048 | 70 | Petrol | 1989–1995 |
| FIAT | 1.5 | ELBA (146_) | 149C1.000 | 67 | Petrol | 1992–1996 |
| FIAT | 1.5 | ELBA (146_) | 149C1.000 | 71 | Petrol | 1986–1992 |
| FIAT | 1.5 | RITMO (138_) | 138C2.048 | 75 | Petrol | 1978–1988 |
| FIAT | 1.5 | RITMO (138_) | 149C1.000 | 75 | Petrol | 1978–1988 |
| FIAT | 1.5 | RITMO (138_) | 138A4.000 | 85 | Petrol | 1981–1987 |
| FIAT | 1.5 | RITMO (138_) | 138A2.000 | 75 | Petrol | 1978–1988 |
| FIAT | 1.5 | RITMO (138_) | 138C3.048 | 75 | Petrol | 1978–1988 |
| FIAT | 1.5 | RITMO (138_) | 149A5.000 | 79 | Petrol | 1985–1987 |
| FIAT | 1.5 | RITMO (138_) | 138B3.000 | 82 | Petrol | 1983–1987 |
| FIAT | 1.6 | FIORINO Pick up (146_) | 146C6.000 | 75 | Petrol | 1994–2001 |
| FIAT | 1.6 | FIORINO Pick up (146_) | 146D6.000 | 75 | Petrol | 1994–2001 |
| FIAT | 1.6 | RITMO (138_) | 138AR.000 | 90 | Petrol | 1985–1987 |
| FIAT | 1.6 | RITMO (138_) | 149A4.000 | 100 | Petrol | 1983–1987 |
| FIAT | 1.6 | SCUDO Bus (220_) | 220A2.000 | 79 | Petrol | 1996–2006 |
| FIAT | 1.6 | SCUDO Van (220_) | 220A2.000 | 79 | Petrol | 1996–2006 |
| FIAT | 1.6 | TEMPRA S.W. (159_) | 159A3.000 | 86 | Petrol | 1990–1993 |
| FIAT | 1.6 | TIPO (160_) | 160A2.000 | 79 | Petrol | 1988–1992 |
| FIAT | 1.6 (159.AD) | TEMPRA (159_) | 159B9.000 | 86 | Petrol | 1990–1994 |
| FIAT | 1.6 (159.AD) | TEMPRA (159_) | 159A3.000 | 86 | Petrol | 1990–1994 |
| FIAT | 1.6 (159AE) | TEMPRA S.W. (159_) | 159A3.046 | 77 | Petrol | 1991–1993 |
| FIAT | 1.6 (159AS, 159AT) | TEMPRA (159_) | 159A3.048 | 69 | Petrol | 1990–1996 |
| FIAT | 1.6 (160.AE) | TIPO (160_) | 160A2.000 | 83 | Petrol | 1988–1991 |
| FIAT | 1.6 100 16V | MAREA (185_) | 182A4.000 | 103 | Petrol | 1996–2002 |
| FIAT | 1.6 100 16V Bipower | MAREA (185_) | 186A4.000 | 103 | Petrol/Compressed Natural Gas (CNG) | 1999–2002 |
| FIAT | 1.6 100 16V Bipower | MAREA (185_) | 185A3.000 | 103 | Petrol/Compressed Natural Gas (CNG) | 1999–2002 |
| FIAT | 1.6 16V | PALIO (178_, 171_, 371_) | 178B3.000 | 100 | Petrol | 1996–2002 |
| FIAT | 1.6 i.e. | TIPO (160_) | 149C2.046 | 90 | Petrol | 1988–1991 |
| FIAT | 1.6 i.e. (159.AE) | TEMPRA (159_) | 159A3.046 | 78 | Petrol | 1990–1992 |
| FIAT | 1.6 i.e. (159.AE) | TEMPRA S.W. (159_) | 159A3.046 | 78 | Petrol | 1990–1996 |
| FIAT | 1.6 i.e. (159.AE) | TEMPRA S.W. (159_) | 835C1.000 | 78 | Petrol | 1990–1996 |
| FIAT | 1.6 i.e. (159.AJ) | TEMPRA (159_) | 159B9.000 | 90 | Petrol | 1994–1996 |
| FIAT | 1.6 i.e. (159.AJ) | TEMPRA (159_) | 159B9.000 | 87 | Petrol | 1994–1996 |
| FIAT | 1.6 i.e. (159.AJ) | TEMPRA S.W. (159_) | 159B9.000 | 90 | Petrol | 1994–1996 |
| FIAT | 1.6 i.e. (159.AS, 159.AT) | TEMPRA (159_) | 835C1.000 | 75 | Petrol | 1992–1996 |
| FIAT | 1.6 i.e. (159.AS, 159.AT) | TEMPRA (159_) | 159A3.048 | 75 | Petrol | 1992–1996 |
| FIAT | 1.6 i.e. (159.AS, 159.AT) | TEMPRA S.W. (159_) | 159A3.048 | 75 | Petrol | 1992–1996 |
| FIAT | 1.6 i.e. (159.AS, 159.AT) | TEMPRA S.W. (159_) | 835C1.000 | 75 | Petrol | 1992–1996 |
| FIAT | 1.6 i.e. (160.A1, 160.EC, 160.EB) | TIPO (160_) | 159A3.048 | 75 | Petrol | 1992–1995 |
| FIAT | 1.6 i.e. (160.A1, 160.EC, 160.EB) | TIPO (160_) | 835C1.000 | 75 | Petrol | 1992–1995 |
| FIAT | 100 1.6 | RITMO Convertible (138_) | 138AR.048 | 100 | Petrol | 1985–1987 |
| FIAT | 100 1.6 | RITMO Convertible (138_) | 138AR.000 | 105 | Petrol | 1985–1987 |
| FIAT | 100 1.6 (RF) | REGATA Weekend (138_) | 149A4.000 | 101 | Petrol | 1984–1990 |
| FIAT | 100 1.6 (RF) | REGATA Weekend (138_) | 149C3.000 | 101 | Petrol | 1984–1990 |
| FIAT | 2.0 i.e. (159.AP) | TEMPRA S.W. (159_) | 159A6.046 | 113 | Petrol | 1991–1995 |
| FIAT | 60 1.1 (146A.EG) | UNO (146_, 158_) | 146A4.048 | 58 | Petrol | 1985–1989 |
| FIAT | 70 1.3 | REGATA (138_) | 149A7.000 | 65 | Petrol | 1983–1989 |
| FIAT | 70 1.3 | REGATA (138_) | 138B2.000 | 68 | Petrol | 1983–1986 |
| FIAT | 70 1.3 | REGATA (138_) | 149A3.000 | 65 | Petrol | 1983–1989 |
| FIAT | 70 S 1.4 | UNO (146_, 158_) | 160A1.048 | 71 | Petrol | 1988–2006 |
| FIAT | 70 S 1.4 | UNO (146_, 158_) | 160A1.046 | 71 | Petrol | 1988–2006 |
| FIAT | 70 i.e. 1.4 | FIORINO Box Body/MPV (146_) | 146D5.000 | 67 | Petrol | 1994–2001 |
| FIAT | 70 i.e. 1.4 | FIORINO Box Body/MPV (146_) | 146C5.000 | 67 | Petrol | 1994–2001 |
| FIAT | 70 i.e. 1.4 | UNO (146_, 158_) | 146C1.000 | 72 | Petrol | 1989–1993 |
| FIAT | 75 1.5 | REGATA (138_) | 138C2.048 | 75 | Petrol | 1983–1989 |
| FIAT | 75 1.5 | REGATA (138_) | 149C1.000 | 75 | Petrol | 1983–1989 |
| FIAT | 75 1.5 | REGATA (138_) | 138B3.048 | 75 | Petrol | 1983–1989 |
| FIAT | 75 1.5 | REGATA (138_) | 138C3.048 | 75 | Petrol | 1983–1989 |
| FIAT | 75 1.5 | REGATA Weekend (138_) | 138B3.048 | 75 | Petrol | 1984–1989 |
| FIAT | 75 1.5 | REGATA Weekend (138_) | 138C3.048 | 75 | Petrol | 1984–1989 |
| FIAT | 75 1.5 | REGATA Weekend (138_) | 138C2.048 | 75 | Petrol | 1984–1989 |
| FIAT | 75 1.5 | REGATA Weekend (138_) | 149C1.000 | 75 | Petrol | 1984–1989 |
| FIAT | 75 i.e. 1.5 | FIORINO Box Body/MPV (146_) | 149C1.000 | 75 | Petrol | 1988–1993 |
| FIAT | 75 i.e. 1.5 | UNO (146_, 158_) | 149C1.000 | 75 | Petrol | 1985–1993 |
| FIAT | 75 i.e. 1.5 | UNO (146_, 158_) | 138C2.048 | 75 | Petrol | 1985–1993 |
| FIAT | 75 i.e. 1.6 | FIORINO Box Body/MPV (146_) | 146D6.000 | 75 | Petrol | 1993–2001 |
| FIAT | 75 i.e. 1.6 | FIORINO Box Body/MPV (146_) | 146C6.000 | 75 | Petrol | 1993–2001 |
| FIAT | 85 1.5 | RITMO Convertible (138_) | 138A4.000 | 86 | Petrol | 1980–1989 |
| FIAT | 85 1.5 | RITMO Convertible (138_) | 138B3.000 | 82 | Petrol | 1983–1986 |
| FIAT | 85 1.6 | REGATA (138_) | 149A.000 | 82 | Petrol | 1983–1990 |
| HYSTER | 2.4 | H-40FT | 0 | 2005–2009 | ||
| HYSTER | 2.4 | H-50FT | 0 | 2005–2009 | ||
| HYSTER | 2.4 | H-60FT | 0 | 2005–2009 | ||
| HYSTER | 2.4 | H-70FT | 0 | 2005–2009 | ||
| HYSTER | 2.4 | H-70XM | 0 | 2005–2009 | ||
| INNOCENTI | 1.4 i.e. (146EN, 146EQ) | ELBA | 146D5.000 | 67 | Petrol | 1994–1996 |
| INNOCENTI | 1.4 i.e. (146EN, 146EQ) | ELBA | 146C5.000 | 67 | Petrol | 1994–1996 |
| INNOCENTI | 1.5 i.e. (146C9) | ELBA | 149C1.000 | 75 | Petrol | 1992–1994 |
| INNOCENTI | 1.6 i.e. (146EO, 146ER) | ELBA | 146C6.000 | 75 | Petrol | 1994–1996 |
| INNOCENTI | 1.6 i.e. (146EO, 146ER) | ELBA | 146D6.000 | 75 | Petrol | 1994–1996 |
| LANCIA | 1.1 (831AB.015) | DELTA I (831_) | 831B8.000 | 64 | Petrol | 1986–1990 |
| LANCIA | 1.5 (831AB) | PRISMA (831_) | 831B1.000 | 80 | Petrol | 1986–1989 |
| LANCIA | 1.5 (831AB) | PRISMA (831_) | 831A1.000 | 86 | Petrol | 1983–1986 |
| LANCIA | 1.5 (831AB) | PRISMA (831_) | 831B1.048 | 75 | Petrol | 1985–1992 |
| LANCIA | 1.5 (831AB) | PRISMA (831_) | 138C2.048 | 75 | Petrol | 1985–1992 |
| LANCIA | 1.5 (831AB.025) | DELTA I (831_) | 831B1.000 | 86 | Petrol | 1979–1992 |
| LANCIA | 1.5 (831AB.025) | DELTA I (831_) | 831A1.000 | 86 | Petrol | 1979–1992 |
| LANCIA | 1.6 (835EB) | DEDRA SW (835_) | 159B9.000 | 90 | Petrol | 1994–1999 |
| LANCIA | 1.6 LE Cat (835EB) | DEDRA (835_) | 159B9.000 | 90 | Petrol | 1994–1999 |
| LANCIA | 1.6 i.e. (835AA) | DEDRA (835_) | 835A1.000 | 90 | Petrol | 1989–1994 |
| LANCIA | 1.6 i.e. (835AB) | DEDRA (835_) | 835A1.046 | 78 | Petrol | 1989–1993 |
| LANCIA | 1.6 i.e. (836AD) | DELTA II (836_) | 835C1.000 | 75 | Petrol | 1993–1999 |
| LANCIA | 1.8 i.e. 16V (836AQ) | DELTA II (836_) | 182A2.000 | 113 | Petrol | 1996–1999 |
| LANCIA | 2850 V6 i.e. (834AD, 834CD, 834BD) | THEMA (834_) | 834E.146 | 147 | Petrol | 1988–1992 |
| LANCIA | 2850 V6 i.e. (834F) | THEMA (834_) | 834E.146 | 150 | Petrol | 1984–1988 |
| LANCIA | 2850 V6 i.e. (834F) | THEMA (834_) | 834E.000 | 150 | Petrol | 1984–1988 |
| YUGO | 1.4 | FLORIDA (VX65) | 160A1.000 | 69 | Petrol | 1991–1995 |
| YUGO | 1.4 Cat | FLORIDA (VX65) | 160A1.000 | 71 | Petrol | 1988–2008 |
| YUGO | 1.6 | FLORIDA (VX65) | 149A.000 | 84 | Petrol | 1989–1995 |
