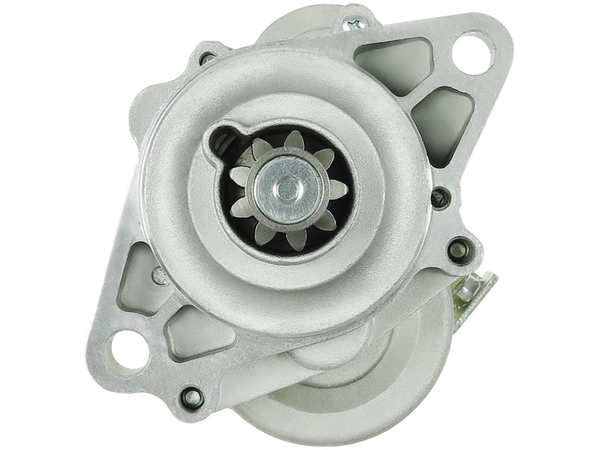

S9329S
Startmotorer
STANDARD LINE
930 kr
Köp nu
| EAN | 5902129084419 |
| Tillverkare | AS-PL |
| Ersätter | MITSUBA |
| OE-nummer |
AS-PL: S9329S, UD03382S AUTO MAGNETO: AM-2098 CARGO: 113398, F032113398 ELECTROLOG: STR5982 HERTH+BUSS: J5214038 HONDA: 06312-PAA-507RM, 31200-P0A-004, 31200-P0A-004RM, 31200-P0A-A04, 31200-PAA-A02, 31200-PAA-A02RM, PAA0W, PCB0X ISUZU: 2903726060, 5862026060, 5862061680 KRAUF: STU3398 MITSUBA: SM422-02, SM442-02, SM442-03 WAI / TRANSPO: 17729N, 17729R WILSON: 91-26-2037, 91-26-2037N WOODAUTO: STR75610 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 12 |
| Effekt [ kW ] | 1.60 |
| Startmotors rotation | CW |
| A-storlek [ mm ] | 75.00 |
| B-storlek [ mm ] | 34.00 |
| Antal kuggar [ qty. ] | 9 |
| Antal hål i huvudet [ qty. ] | 2 |
| Antal gängade hål [ qty. ] | 0 |
| L.1 [ mm ] | 202.00 |
| O.1 [ mm ] | 119.00 |
| C.1 [ mm ] | 11.50 |
| C.2 [ mm ] | 11.50 |
Passar i 1 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| HONDA | 2.3 16V (RA3, RA5) | SHUTTLE (RA) | F23A7 | 150 | Petrol | 1997–2004 |
