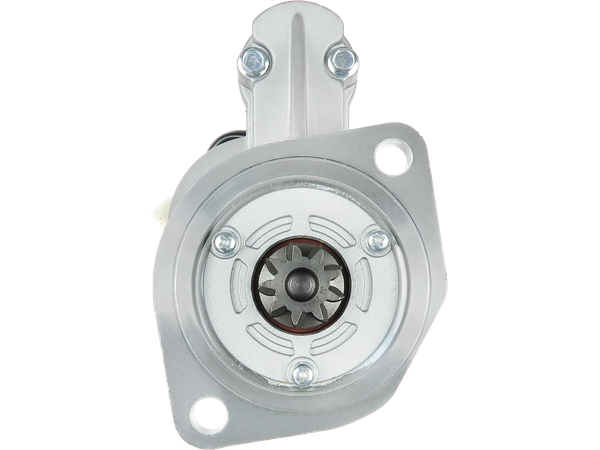

S2010
Startmotorer
STANDARD LINE
967 kr
Köp nu
| EAN | 5901259421453 |
| Tillverkare | AS-PL |
| Ersätter | HITACHI |
| OE-nummer |
3EFFE: STRL173 AINDE: CGB-23056, CGB-23555 ANDEL: ANM15836X APEC: ASM1509 AS-PL: S2010 ASHDOWN INGRAM: DXS520 ASHIKA: 003-U116 AUTO MAGNETO: AM-2228H AUTOELECTRO: AES1214, AEY1652 BOSCH: 0986016681, 0986020113 CARGO: 112083, F032112083 CASCO: CST20158AS CEVAM: 9736 DELCO: DRS3616, DRS3919 EAI: 11793 ELECTROLOG: STR3018 ELSTOCK: 25-1478, 25-3192 ERA: 220202 FRIESEN: 8080027 HC PARTS: JS999 HELLA: 8EA737190-001 HERTH+BUSS: J5219014 HITACHI: S13-112, S13-112A, S13-114, S13-114A, S13-210B, S13-210C, S13-514, S13-555, S13-555A, S13-555B, S13210, S14-203, S14-204, S14-210, S14-210A, S14-414, S14-414A HYSTER: 1519632 ISUZU: 3708100AA, 8-93028198-0, 8-94133758-2, 8-94133758-3, 8-94133758-4, 8-94433912-0, 8-94433912-2, 8-97120356-0, 8-97136688-0, 8-97146338-2, 8-97255390-1, 8-97323437-0, 8-97365824-0, 8943876530, 8971463383, 8972105050, 8972236530 JAPANPARTS: MTU116 JAPKO: 3U116 KUHNER: 20639, 20999, 254458, 254464 LAUBER: 22.0999, 22.0999M LOGISTIK: 335849 LUCAS: LRS01652, LRS1652, LRT00222 NAPA: NPANSM1509 OPEL: 1202152, 1202154, 1202163, 1202184, 6202001, 6202059, 6202070, 9120560, 9120561, 9120565, 94387653, 97112549, 97136688, 97146338, 97210505, 97223653, 97255390 PRESTOLITE: 20510114 REAL: 20445851BN ROVER: ADZ91211 SANDO: 6020158, 6020158.0 SIOM: MAV221580, MAV221580A, MAV5190 SOVEREIGN: SS067, SS237, SS480 STARDAX: STX200210, STX200210R, STX200233, STX200233R WAI / TRANSPO: 31230N WOODAUTO: STR72044 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 12 |
| Effekt [ kW ] | 2.80 |
| Startmotors rotation | CW |
| A-storlek [ mm ] | 95.00 |
| B-storlek [ mm ] | 9.50 |
| Antal kuggar [ qty. ] | 9 |
| Antal kuggar (passar in) [ qty. ] | 9 |
| Antal hål i huvudet [ qty. ] | 2 |
| Antal gängade hål [ qty. ] | 0 |
| L.1 [ mm ] | 227.00 |
| O.1 [ mm ] | 120.00 |
| C.1 [ mm ] | 13.00 |
| C.2 [ mm ] | 13.00 |
Passar i 24 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| ISUZU | 2.8 TD | TROOPER I (UBS) | 4JB1-T | 101 | Diesel | 1987–1991 |
| ISUZU | 2.8 TD (UBS55) | TROOPER I (UBS) | 4JB1-T | 97 | Diesel | 1987–1991 |
| ISUZU | 2.8 TD (UBS55) | TROOPER I (UBS) | 4JB1-TC | 106 | Diesel | 1988–1991 |
| ISUZU | 3.0 DTI | TROOPER III | 4JX1 | 159 | Diesel | 1998–2004 |
| ISUZU | 3.0 DTI | TROOPER III Open Off-Road Vehicle | 4JX1T | 160 | Diesel | 2000–2004 |
| ISUZU | 3.1 TD | TROOPER II (UB) | 4JG2T | 114 | Diesel | 1991–1998 |
| ISUZU | 3.1 TD | TROOPER II Open Off-Road Vehicle (UB) | 4JG2T | 114 | Diesel | 1991–1998 |
| OPEL | 2.5 D (TFR54) | CAMPO (TF0, TF1) | 4JA1 | 76 | Diesel | 1991–1994 |
| OPEL | 2.5 D 4x4 (TFS54) | CAMPO (TF0, TF1) | 4JA1 | 76 | Diesel | 1991–1994 |
| OPEL | 2.5 DTI | CAMPO (TF0, TF1) | 4JA1-TC | 101 | Diesel | 2001–2001 |
| OPEL | 2.5 DTI 4x4 | CAMPO (TF0, TF1) | 4JA1-TC | 101 | Diesel | 2001–2001 |
| OPEL | 2.5 TD (TFR54) | CAMPO (TF0, TF1) | 4JA1-T | 76 | Diesel | 1994–2001 |
| OPEL | 2.5 TD 4x4 (TFS54) | CAMPO (TF0, TF1) | 4JA1-T | 76 | Diesel | 1994–2001 |
| OPEL | 2.8 TD (5BMWL4, 5BSUD2) | FRONTERA A (U92) | 28TD | 113 | Diesel | 1995–1998 |
| OPEL | 2.8 TD (5BMWL4, 5BSUD2) | FRONTERA A (U92) | 28TDI(4JB1-T) | 113 | Diesel | 1995–1998 |
| OPEL | 3.0 DTI (UBS73D, UBS73G) | MONTEREY B (M98) | 4JX1 | 159 | Diesel | 1998–1999 |
| OPEL | 3.1 TD (TFR69) | CAMPO (TF0, TF1) | 4JG2T | 109 | Diesel | 1992–2001 |
| OPEL | 3.1 TD (UBS69D, UBS69G) | MONTEREY A (M92) | 4JG2TC | 114 | Diesel | 1991–1998 |
| OPEL | 3.1 TD 4x4 (TFS69) | CAMPO (TF0, TF1) | 4JG2T | 109 | Diesel | 1992–2001 |
| VAUXHALL | 2.5 TD | Brava | 4JA1T | 0 | 1994–2002 | |
| VAUXHALL | 2.5 TD (TFR54) | BRAVA Pickup (TF0, TF1) | 4JA1-T | 76 | Diesel | 1991–1994 |
| VAUXHALL | 2.5 TD 4x4 | Brava | 4JA1T | 0 | 1994–2002 | |
| VAUXHALL | 2.5 TD 4x4 (TFS54) | BRAVA Pickup (TF0, TF1) | 4JA1-T | 76 | Diesel | 1990–1994 |
| VAUXHALL | 3.0 DTI | MONTEREY Mk II (M98) | 4JX1 | 159 | Diesel | 1998–1999 |
