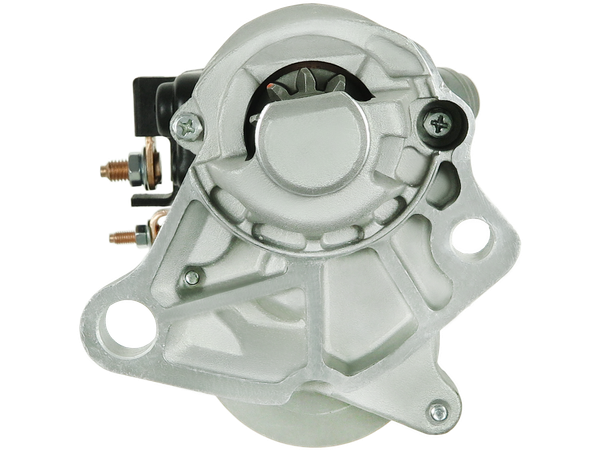

S6150
Startmotorer
STANDARD LINE
967 kr
Köp nu
| EAN | 5902129015499 |
| Tillverkare | AS-PL |
| Ersätter | DENSO |
| OE-nummer |
3EFFE: STRE110, STRF427 AS-PL: S6150, UD12359S AUTO MAGNETO: AM-2716 CARGO: 111764, 113100, F032111764, F032113100 CASCO: CST40199, CST40199AS, CST40199ES, CST40199GS, CST40199OS, CST40199RS CHRYSLER: 1877560, 2095150, 2098500, 2785560, 2875560, 3255250, 3656575, 3656650, 3675560, 3755250, 3755259, 3755900, 4091950, 4091975, 4106113, 4106114, 4111855, 4111860, 4145300, 4145359, 4145360, 4145568, 4349144, 4379143, 4379160, 5226844, 53005984 DELCO: 17010, 19011800 DENSO: 128000-4960, 128000-5270, 128000-5280, 128000-5670, 128000-7810, 128000-7811, 128000-7812 DIXIE: 246-14132, S-8215 ELECTROLOG: STR6582, STR6583 ELSTOCK: 25-2278 KUHNER: 255010 LOGISTIK: 336556 LUCAS: LRS01396, LRS1396 MITSUBISHI: MD017649 PSH: 830.557.102, 830.557.102.461, 830.558.102, 830.558.102.050, 830.558.102.460, S135.443, S135.444 REAL: 20432991BN SANDO: 6040199 SIDAT: S12DE0750A2 SIOM: MAV421990 STARDAX: STX200375, STX201171 WAI / TRANSPO: 17084N, 17084R, 17466N, 17466R, 2-1398ND WILSON: 91-29-5079 WOODAUTO: STR70237 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 12 |
| Effekt [ kW ] | 1.40 |
| Startmotors rotation | CW |
| A-storlek [ mm ] | 71.00 |
| B-storlek [ mm ] | 23.00 |
| Antal kuggar [ qty. ] | 10 |
| Antal hål i huvudet [ qty. ] | 2 |
| Antal gängade hål [ qty. ] | 0 |
| L.1 [ mm ] | 221.00 |
| O.1 [ mm ] | 99.00 |
| C.1 [ mm ] | 11.50 |
| C.2 [ mm ] | 15.50 |
Passar i 5 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| CHRYSLER | 3.0 i | VOYAGER II (ES) | 300 | 147 | Petrol | 1991–1995 |
| CHRYSLER | 3.0 i | VOYAGER II (ES) | 6G72 | 147 | Petrol | 1991–1995 |
| CHRYSLER | 3.5 i 24V | NEW YORKER | F01 | 211 | Petrol | 1993–1998 |
| PRAIRIE | 4800 | 0 | 1993–1997 | |||
| PRAIRIE | 4900 | 0 | 1993–1997 |
