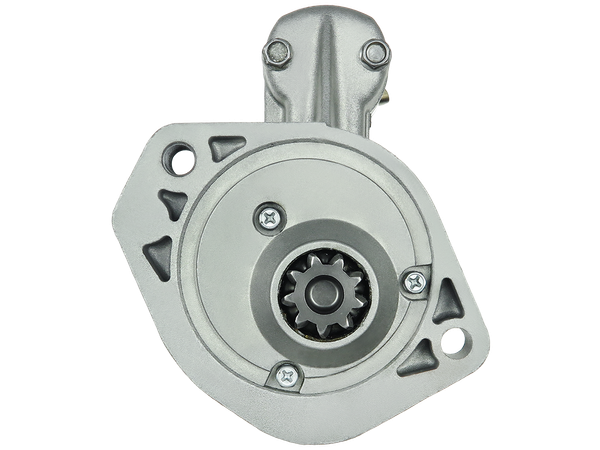

S2078PR
Startmotorer
PREMIUM LINE
886 kr
Köp nu
| EAN | 5902129093336 |
| Tillverkare | AS-PL |
| Ersätter | HITACHI |
| OE-nummer |
AUTOELECTRO: AES4129 CEVAM: 9737 DELCO: DRS3189, DS4299 ELECTROLOG: STR3259 ELSTOCK: 25-2055 ERA: 220048 GM: R1040024 HITACHI: S114-480, S114-480A, S114-480B ISUZU: 8971177700 LUCAS: LRS00429 OPEL: 1202021, 1202033 STARDAX: STX200110, STX200396 VALEO: 455886 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 12 |
| Effekt [ kW ] | 1.40 |
| Startmotors rotation | CW |
| A-storlek [ mm ] | 78.00 |
| B-storlek [ mm ] | 19.00 |
| Antal kuggar [ qty. ] | 9 |
| Antal hål i huvudet [ qty. ] | 2 |
| Antal gängade hål [ qty. ] | 1 |
| L.1 [ mm ] | 203.00 |
| O.1 [ mm ] | 118.00 |
| C.1 [ mm ] | M12X1.75 |
| C.2 [ mm ] | 11.00 |
Passar i 11 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| OPEL | 1.5 D (F08, F68, M68) | CORSA B (S93) | 15D | 50 | Diesel | 1993–2000 |
| OPEL | 1.5 D (F08, M08, F68, M68) | CORSA A Hatchback (S83) | 15D(4EC1) | 50 | Diesel | 1987–1993 |
| OPEL | 1.5 D (F08, W5L) | CORSA B Hatchback Van (S93) | X15D | 50 | Diesel | 1994–1997 |
| OPEL | 1.5 D (F08, W5L) | CORSA B Hatchback Van (S93) | 15D | 50 | Diesel | 1994–1997 |
| OPEL | 1.5 D (F11, M11, F19, M19) | CORSA A TR (S83) | 15D(4EC1) | 50 | Diesel | 1987–1992 |
| OPEL | 1.5 TD (F08, F68, M68) | CORSA B (S93) | 15DT | 67 | Diesel | 1993–2000 |
| OPEL | 1.5 TD (F08, F68, M68) | CORSA B (S93) | X15DT | 67 | Diesel | 1993–2000 |
| OPEL | 1.5 TD (F08, M08, F68, M68) | CORSA A Hatchback (S83) | 15DT(T4EC1) | 67 | Diesel | 1988–1993 |
| OPEL | 1.5 TD (F11, M11, F19, M19) | CORSA A TR (S83) | 15DT(T4EC1) | 67 | Diesel | 1987–1993 |
| OPEL | 1.7 D | COMBO Box Body/MPV (71_) | 17D(4EE1) | 60 | Diesel | 1994–2001 |
| OPEL | 1.7 D | COMBO Box Body/MPV (71_) | X17D(4EE1) | 60 | Diesel | 1994–2001 |
