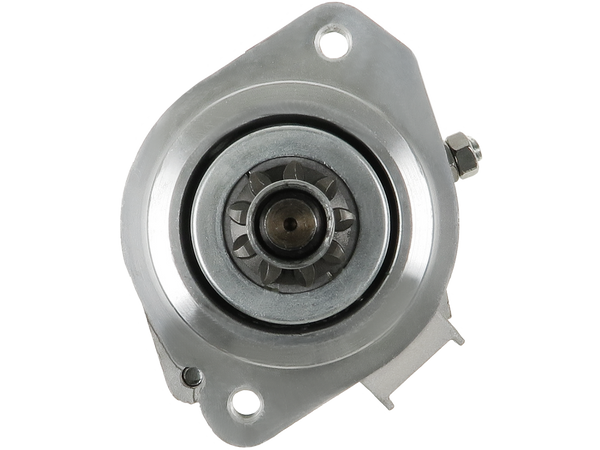

S2124S
Startmotorer
STANDARD LINE
887 kr
Köp nu
| EAN | 5902129223313 |
| Tillverkare | AS-PL |
| Ersätter | HITACHI |
| OE-nummer |
3EFFE: PRSE040, STRE040 ALANKO: 10439311 ARROWHEAD: SHI0137 AS-PL: UD19213S AUTOTEAM: SHI220A CASCO: CST20220AS DIXIE: 240-10111 HENKEL PARTS: 3117821 HITACHI: S114-559, S114-559B ITAB AUTOMOTIVE: 10020220AV KUHNER: 256724 LESTER: 18351 PSH: 400.050.092.080, 400.050.092.270, S132.077 REAL: 20445022BN SANDO: 6020220.0 SIOM: MAV222200A WAI / TRANSPO: 18351N, 18351N-OE, 2-2506-HI WILSON: 71-25-18351 WOODAUTO: STR72246 YAMAHA: 61A-81800-00, 61A-81800-00-00, 61A-81800-01, 61A-81800-01-00, 61H-81800-01, 61H-81800-01-00, 69L-81800-00, 69L-81800-00-00 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 12 |
| Effekt [ kW ] | 1.40 |
| Startmotors rotation | ACW |
| B-storlek [ mm ] | 32.00 |
| Antal kuggar [ qty. ] | 9 |
| Antal hål i huvudet [ qty. ] | 2 |
| Antal gängade hål [ qty. ] | 2 |
| L.1 [ mm ] | 227.00 |
| O.1 [ mm ] | 88.00 |
| C.1 [ mm ] | M8x1.25 |
| C.2 [ mm ] | M8x1.25 |
Passar i 88 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| YAMAHA | Engine | SX150TXR | 0 | 1999–2004 | ||
| YAMAHA | Engine | SX225TUR | 0 | 2001–2002 | ||
| YAMAHA | Engine | S175TXR | 0 | 1996–1999 | ||
| YAMAHA | Engine | S115TLR | 0 | 1996–1999 | ||
| YAMAHA | Engine | LX150TXR | 0 | 1999–2001 | ||
| YAMAHA | Engine | B115TLR | 0 | 1998–1999 | ||
| YAMAHA | Engine | LX250TR | 0 | 2000–2000 | ||
| YAMAHA | Engine | L150TXR | 0 | 1991–1999 | ||
| YAMAHA | Engine | L250TXR | 0 | 1992–1999 | ||
| YAMAHA | Engine | C115TLR | 0 | 1991–1999 | ||
| YAMAHA | Engine | 150TR | 0 | 2000–2000 | ||
| YAMAHA | Engine | VX250TLR | 0 | 2002–2004 | ||
| YAMAHA | Engine | L225TUR | 0 | 1995–1996 | ||
| YAMAHA | Engine | 150TLR | 0 | 1991–1998 | ||
| YAMAHA | Engine | 225TXR | 0 | 1991–1995 | ||
| YAMAHA | Engine | 115TLR | 0 | 1991–2008 | ||
| YAMAHA | Engine | V6EXCELL | 0 | 1987–1989 | ||
| YAMAHA | Engine | SX200TXR | 0 | 2001–2005 | ||
| YAMAHA | Engine | SX250TR | 0 | 2000–2000 | ||
| YAMAHA | Engine | S250TUR | 0 | 1996–1997 | ||
| YAMAHA | Engine | S130TLR | 0 | 1996–1999 | ||
| YAMAHA | Engine | PX150TLR | 0 | 1999–1999 | ||
| YAMAHA | Engine | D150TLR | 0 | 1997–1999 | ||
| YAMAHA | Engine | LX250TXR | 0 | 2001–2002 | ||
| YAMAHA | Engine | P150TLR | 0 | 1991–1999 | ||
| YAMAHA | Engine | LF225TXR | 0 | 1997–1998 | ||
| YAMAHA | Engine | C150TLR | 0 | 1996–1999 | ||
| YAMAHA | Engine | 200TLR | 0 | 1991–1998 | ||
| YAMAHA | Engine | 115TXR | 0 | 2002–2008 | ||
| YAMAHA | Engine | L250ETX | 0 | 1990–1990 | ||
| YAMAHA | Engine | VMAX-200H.P. | 0 | 1998–2005 | ||
| YAMAHA | Engine | 250H.P. | 0 | 1990–2004 | ||
| YAMAHA | Engine | 150TJR | 0 | 1996–1999 | ||
| YAMAHA | Engine | 225ETL | 0 | 1990–1990 | ||
| YAMAHA | Engine | V175TLR | 0 | 2000–2000 | ||
| YAMAHA | Engine | SX250TXR | 0 | 2001–2002 | ||
| YAMAHA | Engine | SX225TR | 0 | 2000–2000 | ||
| YAMAHA | Engine | S150TLR | 0 | 1996–1999 | ||
| YAMAHA | Engine | SX150TLR | 0 | 1999–1999 | ||
| YAMAHA | Engine | P200TLR | 0 | 1991–1999 | ||
| YAMAHA | Engine | L130TR | 0 | 2000–2000 | ||
| YAMAHA | Engine | 175TR | 0 | 2000–2000 | ||
| YAMAHA | Engine | LX225 | 0 | 2000–2000 | ||
| YAMAHA | Engine | L130TXR | 0 | 1991–1999 | ||
| YAMAHA | Engine | L250TUR | 0 | 1992–1999 | ||
| YAMAHA | Engine | 225TLR | 0 | 1991–1997 | ||
| YAMAHA | Engine | 130TXR | 0 | 2002–2004 | ||
| YAMAHA | Engine | VX225TLR | 0 | 2000–2004 | ||
| YAMAHA | Engine | 250TXR | 0 | 1991–1995 | ||
| YAMAHA | Engine | 225TUR | 0 | 1995–1995 | ||
| YAMAHA | Engine | 115TJR | 0 | 1991–1999 | ||
| YAMAHA | Engine | V225TLR | 0 | 1998–1999 | ||
| YAMAHA | Engine | SX200TLR | 0 | 2003–2004 | ||
| YAMAHA | Engine | SX225TXR | 0 | 2001–2002 | ||
| YAMAHA | Engine | S200TXR | 0 | 1996–1999 | ||
| YAMAHA | Engine | S225TXR | 0 | 1996–1999 | ||
| YAMAHA | Engine | S115TXR | 0 | 1996–1999 | ||
| YAMAHA | Engine | LX200TXR | 0 | 1999–2001 | ||
| YAMAHA | Engine | C115TR | 0 | 2000–2000 | ||
| YAMAHA | Engine | LX250TUR | 0 | 2001–2002 | ||
| YAMAHA | Engine | L200TXR | 0 | 1991–1999 | ||
| YAMAHA | Engine | LF225TUR | 0 | 1997–1998 | ||
| YAMAHA | Engine | C115TXR | 0 | 1992–1999 | ||
| YAMAHA | Engine | 175TLR | 0 | 1991–1998 | ||
| YAMAHA | Engine | 115TR | 0 | 2000–2000 | ||
| YAMAHA | Engine | L225TXR | 0 | 1994–1999 | ||
| YAMAHA | Engine | V6EXCELX | 0 | 1987–1989 | ||
| YAMAHA | Engine | 250ETX | 0 | 1990–1990 | ||
| YAMAHA | Engine | 130TLR | 0 | 1991–2004 | ||
| YAMAHA | Engine | V150TLR | 0 | 2000–2008 | ||
| YAMAHA | Engine | SX250TUR | 0 | 2001–2002 | ||
| YAMAHA | Engine | S250TXR | 0 | 1996–1999 | ||
| YAMAHA | Engine | S130TRX | 0 | 1996–1999 | ||
| YAMAHA | Engine | S150TXR | 0 | 1997–1999 | ||
| YAMAHA | Engine | P175TLR | 0 | 1994–1999 | ||
| YAMAHA | Engine | DX150TLR | 0 | 1999–2005 | ||
| YAMAHA | Engine | S225TUR | 0 | 1996–1999 | ||
| YAMAHA | Engine | LX225TXR | 0 | 2001–2002 | ||
| YAMAHA | Engine | C150TXR | 0 | 1996–1999 | ||
| YAMAHA | Engine | 150TXR | 0 | 2001–2008 | ||
| YAMAHA | Engine | L250TLR | 0 | 1991–1991 | ||
| YAMAHA | Engine | 225H.P. | 0 | 1994–2004 | ||
| YAMAHA | Engine | 130TR | 0 | 2000–2000 | ||
| YAMAHA | Engine | VX200TLR | 0 | 2000–2005 | ||
| YAMAHA | Engine | 250TUR | 0 | 1991–1995 | ||
| YAMAHA | Engine | 225ETX | 0 | 1990–1990 | ||
| YAMAHA | Engine | VX150TLR | 0 | 2000–2004 | ||
| YAMAHA | Engine | V200TLR | 0 | 1998–1999 |
