S2160S
Startmotorer
STANDARD LINE
1341 kr
Köp nu
| EAN | 5902129254560 |
| Tillverkare | AS-PL |
| Ersätter | HITACHI |
| OE-nummer |
ARROWHEAD: GHI0002, GHI0006 AS-PL: UD104060S HITACHI: GSB107-06H J&N: 420-44001 LESTER: 15420 WAI / TRANSPO: 15420N, 3-1007-01HI, 3-1012-01HI WILSON: 72-25-15420 YAMAHA: JN6-H1100-03-00, JN6-H1100-04-00 |

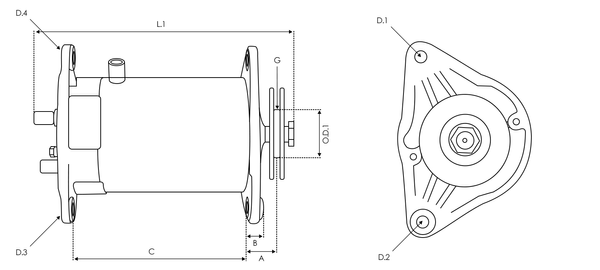

| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Voltage [ V ] | 12 |
| Power [ kW ] | 0.70 |
| Amp. [ A ] | 23 |
| Size A [ mm ] | 35.00 |
| Size B [ mm ] | 15.00 |
| Size C [ mm ] | 158.00 |
| Pulley | AP |
| D.1 [ mm ] | 8.50 |
| D.2 [ mm ] | 12.00 |
| D.3 [ mm ] | 13.50 |
| G [ qty. ] | 2 |
| O.D.1 [ mm ] | 36.00 |
| L.1 [ mm ] | 248.00 |
Passar i 7 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| JOHN DEERE | 0.4 | Gator TX Turf 4x2 | FJ400D | 13.5 | 2004–2019 | |
| YAMAHA | 0.3 | G16 A | JN6 | 9.5 | 1996–2002 | |
| YAMAHA | 0.3 | G20 A | JR8 | 9.5 | 2000–2002 | |
| YAMAHA | 0.3 | G20 A | JN6 | 9.5 | 2000–2002 | |
| YAMAHA | 0.4 | G22 A | J38 | 11.4 | 2003–2007 | |
| YAMAHA | 0.4 | G29 | JW9 | 11.4 | 2007–2016 | |
| YAMAHA | 0.4 | G29 | J38 | 11.4 | 2007–2016 |
