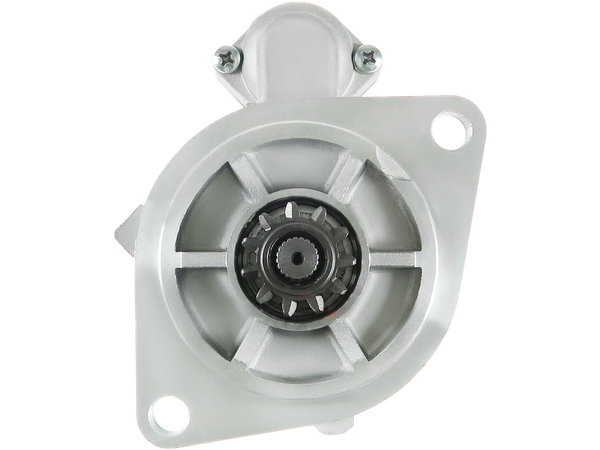

S5051
Startmotorer
STANDARD LINE
1342 kr
Köp nu
| EAN | 5901259423372 |
| Tillverkare | AS-PL |
| Ersätter | MITSUBISHI |
| OE-nummer |
3EFFE: STRS478 AINDE: CGB-28381, CGB-97171 AS-PL: S5051, UD03260S CARGO: 113560, F032113560 CASCO: CST35617AS, CST35617GS ELECTROLOG: STR5238 ELSTOCK: 45-2325 KRAUF: STM3388 KUHNER: 255465 LUCAS: LRS01909, LRS1909 MEAT & DORIA: 5135154 MITSUBISHI: M002T78371, M002T78372, M002T78381, M002T78382, M002T78383, M002T78731, M2T78371, M2T78372, M2T78381, M2T78382, M2T78383, M2T78731, ME087507, ME087589, ME087590, ME088390 REAL: 20437716BN SANDO: 6035617 SIDAT: S24MH0138A2 SIOM: MAV376040, MAV376170 WAI / TRANSPO: 18247N WOODAUTO: STR28020 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 24 |
| Effekt [ kW ] | 5.00 |
| Startmotors rotation | CW |
| A-storlek [ mm ] | 100.00 |
| B-storlek [ mm ] | 21.00 |
| Antal kuggar [ qty. ] | 11 |
| Antal kuggar (passar in) [ qty. ] | 11 |
| Antal hål i huvudet [ qty. ] | 2 |
| Antal gängade hål [ qty. ] | 0 |
| L.1 [ mm ] | 287.00 |
| O.1 [ mm ] | 144.00 |
| C.1 [ mm ] | 13.50 |
| C.2 [ mm ] | 13.50 |
Passar i 2 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| KOBELCO | SK200-III | 0 | 1991–1996 | |||
| KOBELCO | SK200LC-III | 0 | 1991–1996 |
