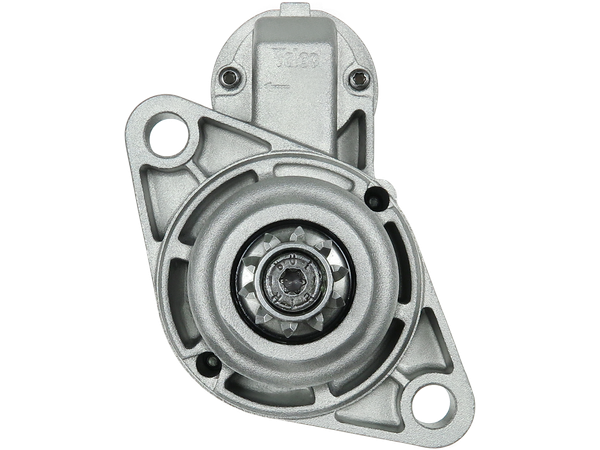

S3043PR
Startmotorer
PREMIUM LINE
561 kr
Köp nu
| EAN | 5902129095217 |
| Tillverkare | AS-PL |
| Ersätter | VALEO |
| OE-nummer |
3EFFE: STRW398 APEC: ASM1307 AUTO MAGNETO: AM-2439 AUTOELECTRO: AEU1324 BOSCH: 0001120408, 0001120409, 0986020220 CARGO: 114176, F032114176 CASCO: CST10318, CST10318AS, CST10318ES, CST10318GS, CST10318OS, CST10318RS, CST15182, CST15182AS, CST15182ES, CST15182GS, CST15182OS, CST15182RS CEVAM: 3036 DELCO: DRT0220, DT1330 EAI: 12065 ELECTROLOG: STR0065 ELSTOCK: 25-3294 ERA: 220447 FRIESEN: 8020220 HC PARTS: CS1324 HELLA: 8EA012526-481, 8EA012526-482, 8EA738166-001 HERTH+BUSS: 42020220 KRAUF: STV1324 KUHNER: 101324, 101324B, 101324V LUCAS: LRS01735, LRS1735 MAGNETI MARELLI: 063521204080, 943213241010, 944280202200, MRS20220 NAPA: NPANSM1307 POWERMAX: 88213301 PRESTOLITE: M1201E PSH: 300.566.102, S132.398, S145.476 REAL: 20401813, 20479281 ROLLCO: STM580 SANDO: 6010318, 6015182, 6015182.0, 6015182.1 SIDAT: S12BH0247, S12BH0247A2 SIOM: MAV123180, MAV171820 STARDAX: STX200279, STX200279R VALEO: 438173, 458215, 726086, 726886, D6GS13, D6GS13M VW: 02T911023M, 02T911023MX, 02T911023T, 02T911023TX, 02T911024Q, 02T911024QX, 2T911023M, 2T911023MX, 2T911023T, 2T911023TX, 2T911024Q, L02T911023T WAI / TRANSPO: 32735N WOODAUTO: BOS0001120408, STR54059, VAL438173, VALD6GS13M |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 12 |
| Effekt [ kW ] | 1.00 |
| Startmotors rotation | ACW |
| A-storlek [ mm ] | 76.00 |
| B-storlek [ mm ] | 53.00 |
| Antal kuggar [ qty. ] | 10 |
| Antal hål i huvudet [ qty. ] | 2 |
| Antal gängade hål [ qty. ] | 0 |
| L.1 [ mm ] | 205.00 |
| O.1 [ mm ] | 112.00 |
| C.1 [ mm ] | 12.50 |
| C.2 [ mm ] | 12.50 |
Passar i 117 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| AUDI | 1.6 | A3 (8P1) | CCSA | 102 | Petrol | 2003–2012 |
| AUDI | 1.6 | A3 (8P1) | BGU | 102 | Petrol | 2003–2012 |
| AUDI | 1.6 | A3 (8P1) | BSF | 102 | Petrol | 2003–2012 |
| AUDI | 1.6 | A3 (8P1) | BSE | 102 | Petrol | 2003–2012 |
| AUDI | 1.6 | A3 Convertible (8P7) | BSE | 102 | Petrol | 2008–2010 |
| AUDI | 1.6 | A3 Sportback (8PA) | BSE | 102 | Petrol | 2004–2013 |
| AUDI | 1.6 | A3 Sportback (8PA) | CCSA | 102 | Petrol | 2004–2013 |
| AUDI | 1.6 | A3 Sportback (8PA) | BGU | 102 | Petrol | 2004–2013 |
| AUDI | 1.6 | A3 Sportback (8PA) | BSF | 102 | Petrol | 2004–2013 |
| AUDI | 1.6 E-Power | A3 (8P1) | CCSA | 102 | Petrol/Ethanol | 2011–2012 |
| AUDI | 1.6 E-Power | A3 (8P1) | CMXA | 102 | Petrol/Ethanol | 2011–2012 |
| AUDI | 1.6 E-Power | A3 Sportback (8PA) | CCSA | 102 | Petrol/Ethanol | 2011–2013 |
| AUDI | 1.6 E-Power | A3 Sportback (8PA) | BSE | 102 | Petrol/Ethanol | 2011–2013 |
| AUDI | 1.6 E-Power | A3 Sportback (8PA) | CMXA | 102 | Petrol/Ethanol | 2011–2013 |
| MAN | 15.240 | TGM I | D0836LFL40 | 240 | 2005–2022 | |
| MAN | 15.240 | TGM I | D0836LFL53 | 240 | 2005–2022 | |
| MAN | 15.240 | TGM I | D0836LFL50 | 240 | 2005–2022 | |
| SEAT | 1.6 | ALTEA (5P1) | CCSA | 102 | Petrol | 2004–2010 |
| SEAT | 1.6 | ALTEA (5P1) | BGU | 102 | Petrol | 2004–2010 |
| SEAT | 1.6 | ALTEA (5P1) | BSF | 102 | Petrol | 2004–2010 |
| SEAT | 1.6 | ALTEA (5P1) | BSE | 102 | Petrol | 2004–2010 |
| SEAT | 1.6 | ALTEA XL (5P5, 5P8) | CCSA | 102 | Petrol | 2006–2010 |
| SEAT | 1.6 | ALTEA XL (5P5, 5P8) | BGU | 102 | Petrol | 2006–2010 |
| SEAT | 1.6 | ALTEA XL (5P5, 5P8) | BSF | 102 | Petrol | 2006–2010 |
| SEAT | 1.6 | ALTEA XL (5P5, 5P8) | BSE | 102 | Petrol | 2006–2010 |
| SEAT | 1.6 | LEON (1P1) | BSF | 102 | Petrol | 2005–2012 |
| SEAT | 1.6 | LEON (1P1) | BSE | 102 | Petrol | 2005–2012 |
| SEAT | 1.6 | LEON (1P1) | CCSA | 102 | Petrol | 2005–2012 |
| SEAT | 1.6 | TOLEDO III (5P2) | BGU | 102 | Petrol | 2004–2009 |
| SEAT | 1.6 | TOLEDO III (5P2) | BSF | 102 | Petrol | 2004–2009 |
| SEAT | 1.6 | TOLEDO III (5P2) | BSE | 102 | Petrol | 2004–2009 |
| SEAT | 1.6 | TOLEDO III (5P2) | CCSA | 102 | Petrol | 2004–2009 |
| SEAT | 1.6 LPG | ALTEA (5P1) | CHGA | 102 | Petrol/Liquified Petroleum Gas (LPG) | 2009–2013 |
| SEAT | 1.6 LPG | ALTEA XL (5P5, 5P8) | CHGA | 102 | Petrol/Liquified Petroleum Gas (LPG) | 2009–2013 |
| SEAT | 1.6 LPG | LEON (1P1) | CHGA | 102 | Petrol/Liquified Petroleum Gas (LPG) | 2009–2012 |
| SEAT | 1.6 MultiFuel | LEON (1P1) | CCSA | 102 | Petrol/Ethanol | 2005–2013 |
| SEAT | 1.6 MultiFuel | LEON (1P1) | BSE | 102 | Petrol/Ethanol | 2005–2013 |
| SEAT | 1.6 MultiFuel | LEON (1P1) | CMXA | 102 | Petrol/Ethanol | 2005–2013 |
| SEAT | 1.6 Multifuel | ALTEA (5P1) | CMXA | 102 | Petrol/Ethanol | 2010–2011 |
| SEAT | 1.6 Multifuel | ALTEA XL (5P5, 5P8) | CMXA | 102 | Petrol/Ethanol | 2006–2010 |
| SEAT | 1.6 Multifuel | ALTEA XL (5P5, 5P8) | BSE | 102 | Petrol/Ethanol | 2006–2010 |
| SEAT | 1.6 Multifuel | ALTEA XL (5P5, 5P8) | CCSA | 102 | Petrol/Ethanol | 2006–2010 |
| SEAT | 1.6 Multifuel | ALTEA XL (5P5, 5P8) | BSF | 102 | Petrol/Ethanol | 2006–2010 |
| SEAT | 1.9 TDI | ALTEA (5P1) | BKC | 105 | Diesel | 2004–2010 |
| SEAT | 1.9 TDI | ALTEA (5P1) | BXE | 105 | Diesel | 2004–2010 |
| SEAT | 1.9 TDI | ALTEA (5P1) | BJB | 105 | Diesel | 2004–2010 |
| SEAT | 1.9 TDI | ALTEA (5P1) | BLS | 105 | Diesel | 2004–2010 |
| SEAT | 2.0 | CORDOBA (6L2) | BBX | 115 | Petrol | 2002–2009 |
| SEAT | 2.0 | CORDOBA (6L2) | AZL | 115 | Petrol | 2002–2009 |
| SEAT | 2.0 | IBIZA III (6L1) | BBX | 116 | Petrol | 2002–2009 |
| SEAT | 2.0 | IBIZA III (6L1) | AZL | 116 | Petrol | 2002–2009 |
| SEAT | 2.0 FSI | LEON (1P1) | BVZ | 150 | Petrol | 2005–2010 |
| SEAT | 2.0 FSI | LEON (1P1) | BLR | 150 | Petrol | 2005–2010 |
| SEAT | 2.0 FSI | LEON (1P1) | BVY | 150 | Petrol | 2005–2010 |
| SEAT | 2.0 FSI | LEON (1P1) | BLY | 150 | Petrol | 2005–2010 |
| SKODA | 1.6 | OCTAVIA II (1Z3) | BSF | 102 | Petrol | 2004–2013 |
| SKODA | 1.6 | OCTAVIA II (1Z3) | CMXA | 102 | Petrol | 2004–2013 |
| SKODA | 1.6 | OCTAVIA II (1Z3) | BSE | 102 | Petrol | 2004–2013 |
| SKODA | 1.6 | OCTAVIA II (1Z3) | CCSA | 102 | Petrol | 2004–2013 |
| SKODA | 1.6 | OCTAVIA II (1Z3) | BGU | 102 | Petrol | 2004–2013 |
| SKODA | 1.6 | OCTAVIA II Combi (1Z5) | BSF | 102 | Petrol | 2004–2013 |
| SKODA | 1.6 | OCTAVIA II Combi (1Z5) | CMXA | 102 | Petrol | 2004–2013 |
| SKODA | 1.6 | OCTAVIA II Combi (1Z5) | BSE | 102 | Petrol | 2004–2013 |
| SKODA | 1.6 | OCTAVIA II Combi (1Z5) | CCSA | 102 | Petrol | 2004–2013 |
| SKODA | 1.6 | OCTAVIA II Combi (1Z5) | BGU | 102 | Petrol | 2004–2013 |
| SKODA | 1.6 LPG | OCTAVIA II (1Z3) | CHGA | 102 | Petrol/Liquified Petroleum Gas (LPG) | 2009–2012 |
| SKODA | 1.6 LPG | OCTAVIA II (1Z3) | BSE | 102 | Petrol/Liquified Petroleum Gas (LPG) | 2009–2012 |
| SKODA | 1.6 LPG | OCTAVIA II Combi (1Z5) | CHGA | 102 | Petrol/Liquified Petroleum Gas (LPG) | 2009–2012 |
| SKODA | 1.6 MultiFuel | OCTAVIA II (1Z3) | CMXA | 102 | Petrol/Ethanol | 2008–2013 |
| SKODA | 1.6 MultiFuel | OCTAVIA II (1Z3) | CCSA | 102 | Petrol/Ethanol | 2008–2013 |
| SKODA | 1.6 MultiFuel | OCTAVIA II Combi (1Z5) | CCSA | 102 | Petrol/Ethanol | 2008–2013 |
| SKODA | 1.6 MultiFuel | OCTAVIA II Combi (1Z5) | CMXA | 102 | Petrol/Ethanol | 2008–2013 |
| SKODA | 1.8 TSI | OCTAVIA III Combi (5E5, 5E6) | CJSA | 180 | Petrol | 2012–2020 |
| SKODA | 1.8 TSI | OCTAVIA III Combi (5E5, 5E6) | CJSB | 180 | Petrol | 2012–2020 |
| SKODA | 1.8 TSI 4x4 | OCTAVIA III Combi (5E5, 5E6) | CJSB | 180 | Petrol | 2012–2017 |
| SKODA | 2.0 | FABIA I (6Y2) | AZL | 116 | Petrol | 1999–2008 |
| SKODA | 2.0 | FABIA I Combi (6Y5) | AZL | 116 | Petrol | 2000–2007 |
| SKODA | 2.0 | FABIA I Saloon (6Y3) | AZL | 116 | Petrol | 1999–2007 |
| VW | 1.6 | GOLF PLUS V (5M1, 521) | BSF | 102 | Petrol | 2005–2013 |
| VW | 1.6 | GOLF PLUS V (5M1, 521) | CMXA | 102 | Petrol | 2005–2013 |
| VW | 1.6 | GOLF PLUS V (5M1, 521) | BSE | 102 | Petrol | 2005–2013 |
| VW | 1.6 | GOLF PLUS V (5M1, 521) | CCSA | 102 | Petrol | 2005–2013 |
| VW | 1.6 | GOLF V (1K1) | BSE | 102 | Petrol | 2004–2008 |
| VW | 1.6 | GOLF V (1K1) | CCSA | 102 | Petrol | 2004–2008 |
| VW | 1.6 | GOLF V (1K1) | BGU | 102 | Petrol | 2004–2008 |
| VW | 1.6 | GOLF V (1K1) | BSF | 102 | Petrol | 2004–2008 |
| VW | 1.6 | GOLF V Variant (1K5) | CCSA | 102 | Petrol | 2007–2009 |
| VW | 1.6 | GOLF V Variant (1K5) | BSF | 102 | Petrol | 2007–2009 |
| VW | 1.6 | GOLF V Variant (1K5) | BSE | 102 | Petrol | 2007–2009 |
| VW | 1.6 | GOLF VI (5K1) | BSF | 102 | Petrol | 2008–2012 |
| VW | 1.6 | GOLF VI (5K1) | CMXA | 102 | Petrol | 2008–2012 |
| VW | 1.6 | GOLF VI (5K1) | BSE | 102 | Petrol | 2008–2012 |
| VW | 1.6 | GOLF VI (5K1) | CCSA | 102 | Petrol | 2008–2012 |
| VW | 1.6 | GOLF VI Variant (AJ5) | CCSA | 102 | Petrol | 2009–2013 |
| VW | 1.6 | GOLF VI Variant (AJ5) | BSF | 102 | Petrol | 2009–2013 |
| VW | 1.6 | GOLF VI Variant (AJ5) | BSE | 102 | Petrol | 2009–2013 |
| VW | 1.6 | JETTA III (1K2) | BGU | 102 | Petrol | 2004–2010 |
| VW | 1.6 | JETTA III (1K2) | BSF | 102 | Petrol | 2004–2010 |
| VW | 1.6 | JETTA III (1K2) | BSE | 102 | Petrol | 2004–2010 |
| VW | 1.6 | JETTA III (1K2) | CCSA | 102 | Petrol | 2004–2010 |
| VW | 1.6 | POLO V Saloon (602, 604, 612, 614) | CLSA | 105 | Petrol | 2010–2022 |
| VW | 1.6 | POLO V Saloon (602, 604, 612, 614) | CFNA | 105 | Petrol | 2010–2022 |
| VW | 1.6 BiFuel | GOLF PLUS V (5M1, 521) | CHGA | 102 | Petrol/Liquified Petroleum Gas (LPG) | 2009–2013 |
| VW | 1.6 BiFuel | GOLF VI (5K1) | CHGA | 102 | Petrol/Liquified Petroleum Gas (LPG) | 2009–2012 |
| VW | 1.6 BiFuel | GOLF VI Variant (AJ5) | CHGA | 102 | Petrol/Liquified Petroleum Gas (LPG) | 2009–2010 |
| VW | 1.6 BiFuel | GOLF VI Variant (AJ5) | BSF | 102 | Petrol/Liquified Petroleum Gas (LPG) | 2009–2010 |
| VW | 1.6 MultiFuel | GOLF PLUS V (5M1, 521) | CCSA | 102 | Petrol/Ethanol | 2007–2013 |
| VW | 1.6 MultiFuel | GOLF PLUS V (5M1, 521) | CMXA | 102 | Petrol/Ethanol | 2007–2013 |
| VW | 1.6 MultiFuel | GOLF V (1K1) | CCSA | 102 | Petrol/Ethanol | 2007–2008 |
| VW | 1.6 MultiFuel | GOLF VI (5K1) | CMXA | 102 | Petrol/Ethanol | 2008–2012 |
| VW | 1.6 MultiFuel | GOLF VI (5K1) | CCSA | 102 | Petrol/Ethanol | 2008–2012 |
| VW | 1.6 MultiFuel | GOLF VI Variant (AJ5) | CCSA | 102 | Petrol/Ethanol | 2010–2013 |
| VW | 1.6 MultiFuel | GOLF VI Variant (AJ5) | CMXA | 102 | Petrol/Ethanol | 2010–2013 |
| VW | 2.0 | JETTA IV (162, 163, AV3, AV2) | CBPA | 115 | Petrol | 2010–2017 |
| VW | 2.0 | JETTA IV (162, 163, AV3, AV2) | CKJA | 115 | Petrol | 2010–2017 |
| VW | 2.0 TDI | GOLF VII (5G1, BQ1, BE1, BE2) | CRBB | 143 | Diesel | 2012–2020 |
| VW | 2.0 TDI | GOLF VII (5G1, BQ1, BE1, BE2) | CRVC | 143 | Diesel | 2012–2020 |
