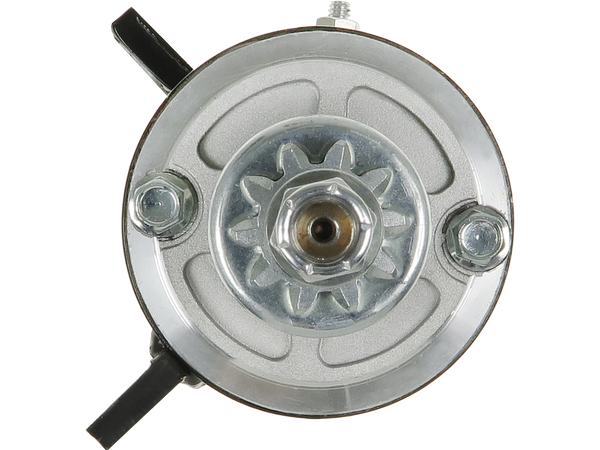

S9583S
Startmotorer
STANDARD LINE
558 kr
Köp nu
| EAN | 5902129219347 |
| Tillverkare | AS-PL |
| Ersätter | JOHNSON ELECTRIC |
| OE-nummer |
ALANKO: 10439023 ARROWHEAD: SAB0066 AS-PL: UD13694S BOMBARDIER: 0586285DS00 CARGO: 112154, F032112154 FARCOM: 104612 HENKEL PARTS: 3110252 KRAUF: STZ1990 KUHNER: 256743 LESTER: 5721 PSH: 120.003.103.200, S129.590 UNITED TECHNOLOGIES: 4730920, 4730920M030SM, 4730920MO30SM, 4730940M030SM, 4730940MO30SM, 5705040M030SM, 5705040MO30SM, SM47309, SM57050 WAI / TRANSPO: 2-2159, 2-2159-1, 5721N WILSON: 71-09-5721, 91-09-1034 WOODAUTO: STR88203, WOOSTR88203 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 12 |
| Startmotors rotation | ACW |
| B-storlek [ mm ] | 44.00 |
| Antal kuggar [ qty. ] | 10 |
| Antal hål i huvudet [ qty. ] | 3 |
| Antal gängade hål [ qty. ] | 0 |
| L.1 [ mm ] | 227.00 |
| O.1 [ mm ] | 78.00 |
| O.2 [ mm ] | 127.00 |
| O.3 [ mm ] | 71.00 |
| C.1 [ mm ] | 9.00 |
| C.2 [ mm ] | 8.00 |
| C.3 [ mm ] | 10.00 |
Passar i 31 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| EVINRUDE | E125ES | 125H.P. | 0 | 1989–1995 | ||
| EVINRUDE | 1.8 | E120TL | 110ci-120H.P. | 0 | 1985–1987 | |
| EVINRUDE | 1.8 | E120TX | 110ci-120H.P. | 0 | 1985–1987 | |
| EVINRUDE | 1.8 | E140TL | 110ci-140H.P. | 0 | 1985–1987 | |
| EVINRUDE | 1.8 | E140TX | 110ci-140H.P. | 0 | 1985–1987 | |
| EVINRUDE | 2.0 | E120TL | 122ci-120H.P. | 0 | 1988–1994 | |
| EVINRUDE | 2.0 | E120TX | 122ci-120H.P. | 0 | 1988–1994 | |
| EVINRUDE | 2.0 | E130CX | 122ci-130H.P. | 0 | 1995–1995 | |
| EVINRUDE | 2.0 | E130TL | 122ci-130H.P. | 0 | 1995–1998 | |
| EVINRUDE | 2.0 | E130TX | 122ci-130H.P. | 0 | 1995–1998 | |
| EVINRUDE | 2.0 | E140CX | 122ci-140H.P. | 0 | 1988–1994 | |
| EVINRUDE | 2.0 | E140TL | 122ci-140H.P. | 0 | 1988–1994 | |
| EVINRUDE | 2.0 | E140TX | 122ci-140H.P. | 0 | 1988–1994 | |
| JOHNSON | 120TL | 110.0ci-120H.P. | 0 | 1985–1987 | ||
| JOHNSON | 120TL | 122.0ci-120H.P. | 0 | 1988–1994 | ||
| JOHNSON | 120TX | 122.0ci-120H.P. | 0 | 1988–1994 | ||
| JOHNSON | 120TX | 110.0ci-120H.P. | 0 | 1985–1987 | ||
| JOHNSON | 130CX | 122.0ci-130H.P. | 0 | 1995–1996 | ||
| JOHNSON | 130PL | 122.0ci-130H.P. | 0 | 1999–2000 | ||
| JOHNSON | 130PX | 122.0ci-130H.P. | 0 | 1999–2000 | ||
| JOHNSON | 130TL | 122.0ci-130H.P. | 0 | 1995–1998 | ||
| JOHNSON | 130TX | 122.0ci-130H.P. | 0 | 1995–1998 | ||
| JOHNSON | 130VX | 122.0ci-130H.P. | 0 | 2000–2000 | ||
| JOHNSON | 135PL | 135H.P. | 0 | 2001–2001 | ||
| JOHNSON | 135VL | 135H.P. | 0 | 2001–2001 | ||
| JOHNSON | 135VX | 135H.P. | 0 | 2001–2001 | ||
| JOHNSON | 140CX | 122.0ci-140H.P. | 0 | 1988–1994 | ||
| JOHNSON | 140TL | 122.0ci-140H.P. | 0 | 1988–1994 | ||
| JOHNSON | 140TL | 110.0ci-140H.P. | 0 | 1985–1987 | ||
| JOHNSON | 140TX | 122.0ci-140H.P. | 0 | 1988–1994 | ||
| JOHNSON | 140TX | 110.0ci-140H.P. | 0 | 1985–1987 |
