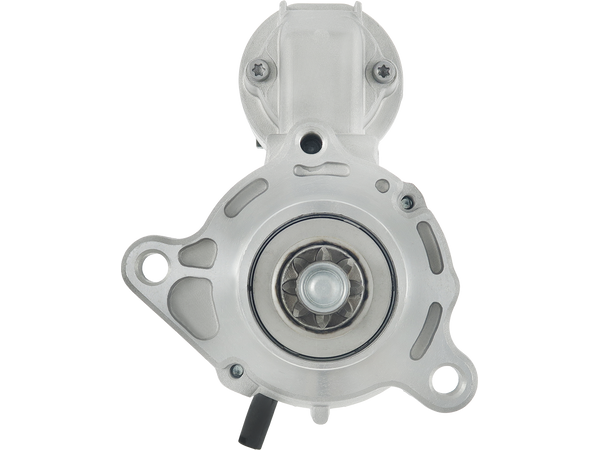

S3142SR
Startmotorer
STANDARD LINE
664 kr
Köp nu
| EAN | 5902129263883 |
| Tillverkare | AS-PL |
| Ersätter | VALEO |
| OE-nummer |
3EFFE: STRL239 ACAUTO: AC-CBS1211 AIRSTAL: 30-1067 ALANKO: 10438913, 10440864 ANDEL: ANM16044 ATL AUTOTECHNIK: A22570 BORG & BECK: BST2450 BOSCH: 0986022571 BTS TURBO: S102878 CASCO: CST15166AS, CST15166GS, CST15166RS CEVAM: 3033 DA SILVA: 020416 DELCO: DRS3824 DRI: 311087082 DTS: S-54082 ELECTROLOG: STR00384 ELSTOCK: 25-3118 ERA: 220892A EUROTEC: 11022570 FARCOM: 108166 FRIESEN: 8080051 GPARTS: GS438073-A, GS438073V-R, SS438073-A, SS438073V-R HC PARTS: CS1211 HELLA: 8EA737900-001 HENKEL PARTS: 3116802, 3116803 HERTH+BUSS: 42438073 HOFFER: H5015168 ITAB AUTOMOTIVE: 10015166AV, 10015166RV KRAUF: STV1211 LOGISTIK: 331218 LUCAS: LRS01599, LRS1599 MAGNETI MARELLI: 944280800510, MRS80051 MEAT & DORIA: 5015168 POWERMAX: 88212426 PSH: 300.544.083.000, 300.544.083.110, 300.544.083.340, 300.544.083.341, 300.544.083.395, 300.544.083.440, 300.544.083.461, 300.544.083.505, S132.325 REAL: 20479661BN, 20479661OE, 20479661RC REMANTE: 011-001-000751R SANDO: 6015166.0, 6015166.1, 6015166.2 SIDAT: S12VA0043A2 SIOM: MAV6800, MAV6800A STARDAX: STX201007 TMI: ST01198 VALEO: 438073, 455934, D7ES2, D7ES4 VW: 047911023B, 047911023BX WAI / TRANSPO: 32599N, 32599R WALKER: WST01083 WILMINK GROUP: WG2196689 WOODAUTO: STR54082 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 12 |
| Effekt [ kW ] | 0.90 |
| Startmotors rotation | ACW |
| A-storlek [ mm ] | 50.00 |
| B-storlek [ mm ] | 20.00 |
| Antal kuggar [ qty. ] | 8 |
| Antal hål i huvudet [ qty. ] | 3 |
| Antal gängade hål [ qty. ] | 1 |
| L.1 [ mm ] | 172.00 |
| O.1 [ mm ] | 81.00 |
| O.2 [ mm ] | 94.00 |
| O.3 [ mm ] | 60.00 |
| C.1 [ mm ] | M8x1.25 |
| C.2 [ mm ] | 8.50 |
| C.3 [ mm ] | 8.50 |
Passar i 12 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| SEAT | 1.0 | AROSA (6H1) | ANV | 50 | Petrol | 1997–2004 |
| SEAT | 1.0 | AROSA (6H1) | AHT | 50 | Petrol | 1998–2001 |
| SEAT | 1.0 | AROSA (6H1) | AER | 50 | Petrol | 1997–2004 |
| SEAT | 1.0 | AROSA (6H1) | ALL | 50 | Petrol | 1997–2004 |
| SEAT | 1.0 | AROSA (6H1) | AUC | 50 | Petrol | 1997–2004 |
| SEAT | 1.0 | AROSA (6H1) | ALD | 50 | Petrol | 1997–2004 |
| VW | 1.0 | LUPO I (6X1, 6E1) | ANV | 50 | Petrol | 1998–2005 |
| VW | 1.0 | LUPO I (6X1, 6E1) | AHT | 50 | Petrol | 1998–2000 |
| VW | 1.0 | LUPO I (6X1, 6E1) | AER | 50 | Petrol | 1998–2005 |
| VW | 1.0 | LUPO I (6X1, 6E1) | ALL | 50 | Petrol | 1998–2005 |
| VW | 1.0 | LUPO I (6X1, 6E1) | AUC | 50 | Petrol | 1998–2005 |
| VW | 1.0 | LUPO I (6X1, 6E1) | ALD | 50 | Petrol | 1998–2005 |
