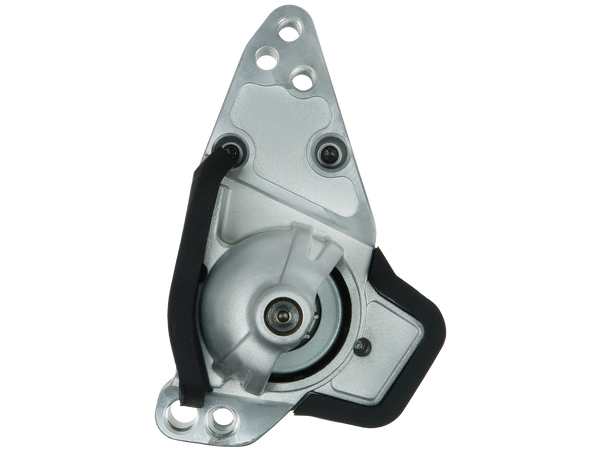

S3249S
Startmotorer
STANDARD LINE
702 kr
Köp nu
| EAN | 5902129200383 |
| Tillverkare | AS-PL |
| Ersätter | VALEO |
| OE-nummer | TS12-105 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 12 |
| Effekt [ kW ] | 1.20 |
| Startmotors rotation | CW |
| A-storlek [ mm ] | 66.00 |
| B-storlek [ mm ] | 20.00 |
| Antal kuggar [ qty. ] | 10 |
| Antal hål i huvudet [ qty. ] | 5 |
| Antal gängade hål [ qty. ] | 3 |
| L.1 [ mm ] | 202.00 |
| O.1 [ mm ] | 20.00 |
| O.2 [ mm ] | 137.00 |
| O.3 [ mm ] | 16.00 |
| O.4 [ mm ] | 142.00 |
| O.5 [ mm ] | 14.00 |
| C.1 [ mm ] | M10x1.5 |
| C.2 [ mm ] | M10x1.5 |
| C.3 [ mm ] | M10x1.5 |
| C.4 [ mm ] | 11.00 |
| C.5 [ mm ] | 8.00 |
Passar i 13 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| DACIA | 1.3 TCe 130 (HMMF) | DUSTER (HM_) | H5H470 | 131 | Petrol | 2019– |
| DACIA | 1.3 TCe 130 (HMMF) | DUSTER (HM_) | H5H480 | 131 | Petrol | 2019– |
| DACIA | 1.3 TCe 130 4x4 (HMMF) | DUSTER (HM_) | H5H470 | 131 | Petrol | 2019– |
| DACIA | 1.3 TCe 130 4x4 (HMMF) | DUSTER (HM_) | H5H494 | 131 | Petrol | 2019– |
| DACIA | 1.3 TCe 130 4x4 (HMMF) | DUSTER (HM_) | H5H480 | 131 | Petrol | 2019– |
| DACIA | 1.3 TCe 150 (HMM3) | DUSTER (HM_) | H5H480 | 150 | Petrol | 2019– |
| DACIA | 1.3 TCe 150 (HMM3) | DUSTER (HM_) | H5H470 | 150 | Petrol | 2019– |
| DACIA | 1.3 TCe 150 (HMM3) | DUSTER (HM_) | H5H490 | 150 | Petrol | 2019– |
| DACIA | 1.3 TCe 150 4x4 (HMM3) | DUSTER (HM_) | H5H470 | 150 | Petrol | 2019– |
| DACIA | 1.3 TCe 150 4x4 (HMM3) | DUSTER (HM_) | H5H490 | 150 | Petrol | 2019– |
| DACIA | 1.3 TCe 150 4x4 (HMM3) | DUSTER (HM_) | H5H480 | 150 | Petrol | 2019– |
| RENAULT | TCe 130 (HFMF) | CAPTUR II (HF_) | H5H470 | 131 | Petrol | 2020– |
| RENAULT | TCe 155 (HFMN) | CAPTUR II (HF_) | H5H470 | 154 | Petrol | 2020– |
