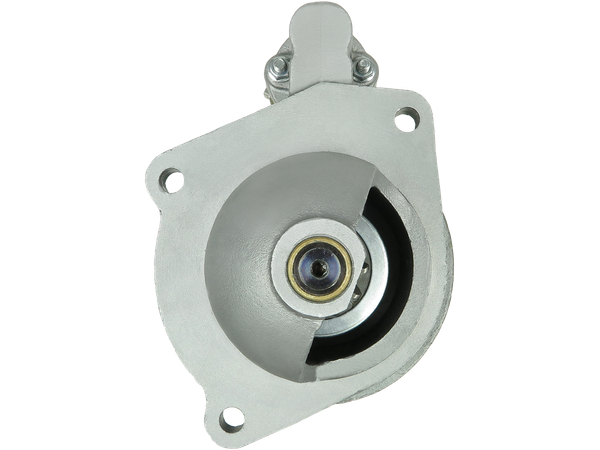

S4006
Startmotorer
STANDARD LINE
1439 kr
Köp nu
| EAN | 5901259422344 |
| Tillverkare | AS-PL |
| Ersätter | LUCAS |
| OE-nummer |
3EFFE: STRF152 ANDEL: ANM15629X AS-PL: S4006 AUTOELECTRO: AES3175, AES6120 CARGO: 110462, 110465, F032110462, F032110465 CASCO: CST25121AS, CST25121GS CASE: K308650 DAF: 1516712R, 1516740R DELCO: DRS3408, DRS3409 EAI: 33437 ELECTROLOG: STR9788 ELSTOCK: 25-0070 FORD: 1526103, 1624968, 702000150, 71YB11000AA, 733F11000AA, 81AB10300UB, 82DB11000DA, C6NF11000A, C7NN11000A, C7NN11000B, D0NN11000A, D0NN11000B, D1NN11000A, D2NN11000B, D4NN11000B, D7NN11000B, D8NN11000AA, D8NN11000BA, D8NN11000CA, D8NN11000CB, D8NN11000CE, D9NN11000AA FRIESEN: 8812470 HC PARTS: CS336 HELLA: 8EA726084-001 HITACHI: S13-61, S13-61A KUHNER: 10336 LUCAS: 26265, 26311, 26341, 26341E, 26360, 26431, 27554, 27554A, LRS00107, LRS00375, LRS00620, LRS0107, LRS107, LRS375, LRS620, NSB535 NEW HOLLAND: 87318759 PRESTOLITE: 20500107 REAL: 20405121BN, 20405121OE SANDO: 6025121 SIOM: MAV123380, MAV271210 STARDAX: STX200677 WAI / TRANSPO: 17647N WOODAUTO: STR25009 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 12 |
| Effekt [ kW ] | 2.80 |
| Startmotors rotation | CW |
| A-storlek [ mm ] | 92.00 |
| B-storlek [ mm ] | 19.00 |
| Antal kuggar [ qty. ] | 10 |
| Antal kuggar (passar in) [ qty. ] | 10 |
| Antal hål i huvudet [ qty. ] | 3 |
| Antal gängade hål [ qty. ] | 0 |
| L.1 [ mm ] | 320.00 |
| O.1 [ mm ] | 147.00 |
| O.2 [ mm ] | 103.00 |
| O.3 [ mm ] | 103.00 |
| C.1 [ mm ] | 10.50 |
| C.2 [ mm ] | 10.50 |
| C.3 [ mm ] | 10.50 |
Passar i 1 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| FORD | 711 | Cargo | 110 | 1982–1996 |
