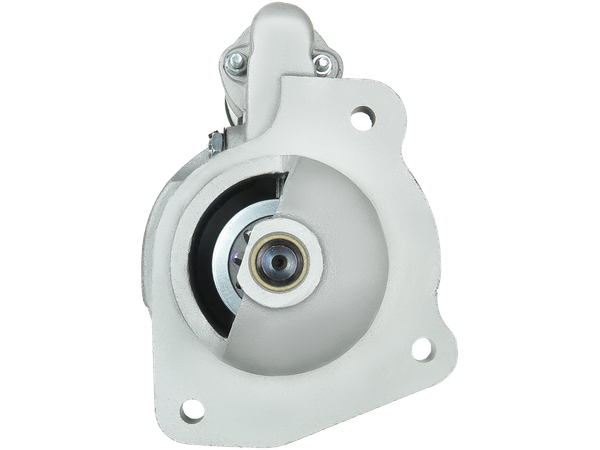

S4072S
Startmotorer
STANDARD LINE
1445 kr
Köp nu
| EAN | 5902129119883 |
| Tillverkare | AS-PL |
| Ersätter | LUCAS |
| OE-nummer |
3EFFE: STRF034 AS-PL: S4072S, UD47540S BOSCH: 0001367056 CARGO: 113380, F032113380 CASCO: CST25119AS, CST25119GS DAF: 1516742R DIXIE: 260-62162 ELECTROLOG: STR4134 ELSTOCK: 25-0343 FORD: 6092295, 82DB-11000-EA, 83DB-11000-BB, R82DB11000EA HC PARTS: CS345 KRAUF: STL0345 LUCAS: 26305, 26305F, 26329, 26430A, 26430B, 27507, 27553, 27553B, LRS00484, LRS484 PRESTOLITE: 20500484 REAL: 20405911BN, 20405911OE ROLLCO: STM1207 SANDO: 6025119.0, 6025119.1 SIOM: MAV271190, MAV3300, MAV3620 VALEO: VS223 WAI / TRANSPO: UNIT BOM 120-6043A WOODAUTO: STR25028 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 12 |
| Effekt [ kW ] | 2.80 |
| Startmotors rotation | CW |
| A-storlek [ mm ] | 92.00 |
| B-storlek [ mm ] | 19.00 |
| Antal kuggar [ qty. ] | 10 |
| Antal hål i huvudet [ qty. ] | 3 |
| Antal gängade hål [ qty. ] | 0 |
| L.1 [ mm ] | 316.00 |
| O.1 [ mm ] | 147.00 |
| O.2 [ mm ] | 103.00 |
| O.3 [ mm ] | 103.00 |
| C.1 [ mm ] | 10.50 |
| C.2 [ mm ] | 10.50 |
| C.3 [ mm ] | 10.50 |
Passar i 5 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| FORD | 1115 | Cargo | 150/6CA-Dover | 150 | 1982–1996 | |
| FORD | 1215 | Cargo | 150/6CA-Dover | 150 | 1982–1996 | |
| FORD | 711 | Cargo | 110 | 1982–1996 | ||
| FORD | 913 | Cargo | 130/7AA-Dover | 128 | 1982–1996 | |
| FORD | 915 | Cargo | 150/6CA-Dover | 150 | 1982–1996 |
