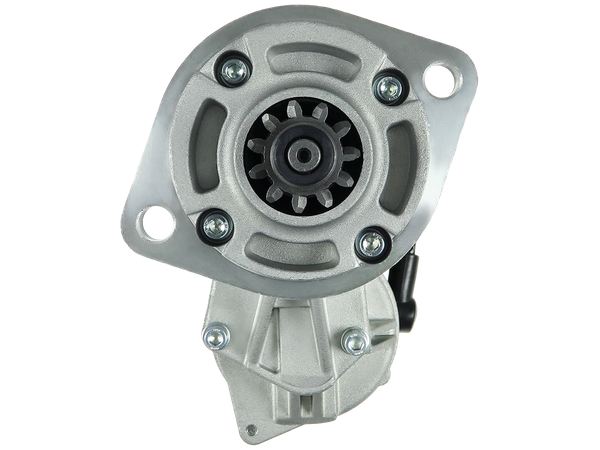

S9181
Startmotorer
STANDARD LINE
1444 kr
Köp nu
| EAN | 5902129006428 |
| Tillverkare | AS-PL |
| Ersätter | NIKKO |
| OE-nummer |
AINDE: CGB-23116 AS-PL: UD11102S CARGO: 115954, F032115954 CASCO: CST50623GS DIXIE: S-80511 ELECTROLOG: STR8857 ERA: 220629 KOMATSU: 600-863-3110, 600-863-3210, 600-863-3211, 600-863-3220, R6008633210 KRAUF: STK4209 KUHNER: 254909 LOGISTIK: 336502 NIKKO: 0-24000-0030, 0-24000-0040, 0-24000-0041 POWERMAX: 88215029 PSH: 941.526.112.050, 941.526.112.140, 941.526.112.710, S136.237, S144.640 REAL: 20446326OE ROBERT'S: 185-24019, 190-25170 SANDO: 6050623.1 SIOM: MAV526230 WAI / TRANSPO: 19942N WILSON: 91-28-4052 WOODAUTO: STR75225 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 24 |
| Effekt [ kW ] | 3.00 |
| Startmotors rotation | CW |
| A-storlek [ mm ] | 95.00 |
| B-storlek [ mm ] | 20.00 |
| Antal kuggar [ qty. ] | 11 |
| Antal kuggar (passar in) [ qty. ] | 11 |
| Antal hål i huvudet [ qty. ] | 2 |
| Antal gängade hål [ qty. ] | 0 |
| L.1 [ mm ] | 295.00 |
| O.1 [ mm ] | 120.00 |
| C.1 [ mm ] | 13.00 |
| C.2 [ mm ] | 13.00 |
Passar i 19 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| KOMATSU | PC138USLC-2 | SAA4D95LE | 0 | 2004–2007 | ||
| KOMATSU | 3.3 | PC128US-2 | SAA4D95LE | 0 | 2006–2008 | |
| KOMATSU | 3.3 | PC130-7 | SAA4D95LE | 0 | 2004–2012 | |
| KOMATSU | 3.3 | PC130-7K | SAA4D95LE | 0 | 2004–2012 | |
| KOMATSU | 3.3 | PC138US-2 | SAA4D95LE | 0 | 2006–2008 | |
| KOMATSU | 3.3 | PC60-7 | 4D95L | 0 | 1995–2011 | |
| KOMATSU | 3.3 | PC60EN-7 | 4D95LE | 0 | 2000–2010 | |
| KOMATSU | 3.3 | PC70-7 | 4D95L | 0 | 1997–2004 | |
| KOMATSU | 3.3 | PC75UU-3 | 4D95L | 0 | 1997–2006 | |
| KOMATSU | 3.3 | PC78MR-6 | S4D95LE | 0 | 2003–2010 | |
| KOMATSU | 3.3 | PC78US-5 | 4D95LE | 0 | 1995–2003 | |
| KOMATSU | 3.3 | PC78US-6 | 4D95L | 0 | 2002–2009 | |
| KOMATSU | 3.3 | PC78US-6 | S4D95LE | 0 | 2002–2009 | |
| KOMATSU | 3.3 | PC78UU-6 | S4D95LE | 0 | 2002–2011 | |
| KOMATSU | 3.3 | PC78UU-6 | 4D95LE | 0 | 2002–2011 | |
| KOMATSU | 3.3 | PC88MR-6 | S4D95LE | 0 | 2003–2010 | |
| KOMATSU | 3.3 | PW98MR-6 | S4D95LE | 0 | 2003–2010 | |
| KOMATSU | 3.3 | WA80-3 | S4D95LE | 0 | 2004–2006 | |
| KOMATSU | 3.9 | PC128US-2 | SAA4D102E | 0 | 1999–2005 |
