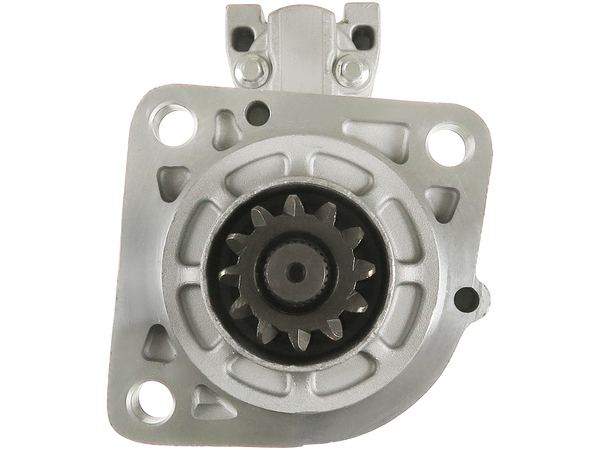

S5022
Startmotorer
STANDARD LINE
1590 kr
Köp nu
| EAN | 5901259423037 |
| Tillverkare | AS-PL |
| Ersätter | MITSUBISHI |
| OE-nummer | M9T60371 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 24 |
| Effekt [ kW ] | 6.00 |
| Startmotors rotation | CW |
| A-storlek [ mm ] | 89.00 |
| B-storlek [ mm ] | 41.00 |
| Antal kuggar [ qty. ] | 12 |
| Antal kuggar (passar in) [ qty. ] | 12 |
| Antal hål i huvudet [ qty. ] | 3 |
| Antal gängade hål [ qty. ] | 0 |
| L.1 [ mm ] | 351.00 |
| O.1 [ mm ] | 127.00 |
| O.2 [ mm ] | 90.00 |
| O.3 [ mm ] | 90.00 |
| C.1 [ mm ] | 13.50 |
| C.2 [ mm ] | 13.50 |
| C.3 [ mm ] | 13.50 |
Passar i 112 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| IRISBUS | 7.8 | Agora L | 0 | 2003– | ||
| IRISBUS | 7.8 | Agora L | 0 | 2003–2005 | ||
| IRISBUS | 7.8 | Agora S | 0 | 2003–2005 | ||
| IRISBUS | 7.8 | Agora S | 0 | 2003– | ||
| RENAULT TRUCKS | 260.18 | KERAX | MIDR06.20.45C/4 | 256 | 1997– | |
| RENAULT TRUCKS | 260.18/B | KERAX | MIDR06.20.45C/4 | 256 | 1997– | |
| RENAULT TRUCKS | 270.18 | KERAX | dCi11-270 | 265 | 2001– | |
| RENAULT TRUCKS | 300.18/B | KERAX | MIDR06.20.45D/41 | 298 | 1997– | |
| RENAULT TRUCKS | 300.26/A,300.26/B | KERAX | MIDR06.20.45D/41 | 298 | 1997– | |
| RENAULT TRUCKS | 300.26/B | KERAX | MIDR06.20.45D/41 | 298 | 1997– | |
| RENAULT TRUCKS | 320.18 | KERAX | dCi11G | 313 | 2001– | |
| RENAULT TRUCKS | 320.26 | KERAX | dCi11G | 313 | 2001– | |
| RENAULT TRUCKS | 340.18 | KERAX | MIDR06.20.45E/41 | 339 | 1997– | |
| RENAULT TRUCKS | 340.18/B | KERAX | MIDR06.20.45E/41 | 339 | 1997– | |
| RENAULT TRUCKS | 340.26/A,340.26/B | KERAX | MIDR06.20.45E/41 | 339 | 1997– | |
| RENAULT TRUCKS | 340.26/B | KERAX | MIDR06.20.45E/41 | 339 | 1997– | |
| RENAULT TRUCKS | 340.32/A | KERAX | MIDR06.20.45E/41 | 339 | 1997– | |
| RENAULT TRUCKS | 350.34 | KERAX | MIDR06.23.56A/3 | 347 | 2003– | |
| RENAULT TRUCKS | 370.18 | KERAX | dCi11E | 362 | 2001– | |
| RENAULT TRUCKS | 370.26 | KERAX | dCi11E | 362 | 2001– | |
| RENAULT TRUCKS | 370.26 | KERAX | dCi11E | 362 | 2001–2006 | |
| RENAULT TRUCKS | 370.32 | KERAX | dCi11E | 362 | 2001– | |
| RENAULT TRUCKS | 385.18 | KERAX | MIDR06.23.56A/41 | 381 | 1997– | |
| RENAULT TRUCKS | 385.18/B | KERAX | MIDR06.23.56A/41 | 381 | 1997– | |
| RENAULT TRUCKS | 385.18T | KERAX | MIDR06.23.56A/41 | 381 | 1997– | |
| RENAULT TRUCKS | 385.26 | KERAX | MIDR06.23.56A/41 | 381 | 1997– | |
| RENAULT TRUCKS | 385.26/A,385.26/B | KERAX | MIDR06.23.56A/41 | 381 | 1997– | |
| RENAULT TRUCKS | 385.26/A,385.26/B,385.26/C | KERAX | MIDR06.23.56A/41 | 381 | 1997– | |
| RENAULT TRUCKS | 385.26/B | KERAX | MIDR06.23.56A/41 | 381 | 1997– | |
| RENAULT TRUCKS | 385.26T | KERAX | MIDR06.23.56A/41 | 381 | 1997– | |
| RENAULT TRUCKS | 385.32/A,385.32/B | KERAX | MIDR06.23.56A/41 | 381 | 1997– | |
| RENAULT TRUCKS | 385.32/A,385.32/B,385.32/C | KERAX | MIDR06.23.56A/41 | 381 | 1997– | |
| RENAULT TRUCKS | 385.32/B | KERAX | MIDR06.23.56A/41 | 381 | 1997– | |
| RENAULT TRUCKS | 400.18 | KERAX | MIDR06.23.56B/41 | 392 | 2000– | |
| RENAULT TRUCKS | 400.18T | KERAX | MIDR06.23.56B/41 | 392 | 2000– | |
| RENAULT TRUCKS | 400.26 | KERAX | MIDR06.23.56B/41 | 392 | 1998–2006 | |
| RENAULT TRUCKS | 400.26/A,400.26/B,400.26/C | KERAX | MIDR06.23.56B/41 | 392 | 2000– | |
| RENAULT TRUCKS | 400.26/B | KERAX | MIDR06.23.56B/41 | 392 | 2000– | |
| RENAULT TRUCKS | 400.26T | KERAX | MIDR06.23.56B/41 | 392 | 2000– | |
| RENAULT TRUCKS | 400.32/A,400.32/B,400.32/C | KERAX | MIDR06.23.56B/41 | 392 | 2000– | |
| RENAULT TRUCKS | 400.32/B | KERAX | MIDR06.23.56B/41 | 392 | 2000– | |
| RENAULT TRUCKS | 420.18 | KERAX | dCi11C | 412 | 2001– | |
| RENAULT TRUCKS | 420.26 | KERAX | dCi11C | 412 | 2001– | |
| RENAULT TRUCKS | 420.32 | KERAX | dCi11C | 412 | 2001– | |
| RENAULT TRUCKS | 420.34 | KERAX | dCi11C | 412 | 2001– | |
| RENAULT TRUCKS | Distribution 210.16 | PREMIUM | MIDR06.02.26W/4 | 209 | 1996– | |
| RENAULT TRUCKS | Distribution 210.19D | PREMIUM | MIDR06.02.26W/4 | 210 | 1996– | |
| RENAULT TRUCKS | Distribution 250.16 | PREMIUM | MIDR06.02.26Y/41 | 250 | 1996– | |
| RENAULT TRUCKS | Distribution 250.18D | PREMIUM | MIDR06.02.26Y/41 | 250 | 1996– | |
| RENAULT TRUCKS | Distribution 250.19 | PREMIUM | MIDR06.02.26Y/41 | 250 | 1996– | |
| RENAULT TRUCKS | Distribution 260.16 | PREMIUM | MIDR06.20.45C/4 | 256 | 1996– | |
| RENAULT TRUCKS | Distribution 260.18 | PREMIUM | MIDR06.20.45C/4 | 256 | 1996– | |
| RENAULT TRUCKS | Distribution 260.19 | PREMIUM | MIDR06.20.45C/4 | 256 | 1996– | |
| RENAULT TRUCKS | Distribution 300.16D | PREMIUM | MIDR06.20.45D/41 | 298 | 1996– | |
| RENAULT TRUCKS | Distribution 300.16T | PREMIUM | MIDR06.20.45D/41 | 298 | 1996– | |
| RENAULT TRUCKS | Distribution 300.18D | PREMIUM | MIDR06.20.45D/41 | 298 | 1996– | |
| RENAULT TRUCKS | Distribution 300.18D/T | PREMIUM | MIDR06.20.45D/41 | 298 | 1996– | |
| RENAULT TRUCKS | Distribution 300.19 | PREMIUM | MIDR06.20.45D/41 | 298 | 1996– | |
| RENAULT TRUCKS | Distribution 300.19D/T | PREMIUM | MIDR06.20.45D/41 | 298 | 1996– | |
| RENAULT TRUCKS | Distribution 300.26D | PREMIUM | MIDR06.20.45D/41 | 298 | 1996– | |
| RENAULT TRUCKS | Distribution 320.18 | PREMIUM | dCi11G | 313 | 2000– | |
| RENAULT TRUCKS | Distribution 320.18 D | PREMIUM | dCi11G | 313 | 2000– | |
| RENAULT TRUCKS | Distribution 320.24D | PREMIUM | dCi11G | 313 | 2000– | |
| RENAULT TRUCKS | Distribution 320.26D | PREMIUM | dCi11G | 313 | 2000– | |
| RENAULT TRUCKS | Distribution 340.18D | PREMIUM | MIDR06.20.45E/41 | 339 | 1996– | |
| RENAULT TRUCKS | Distribution 340.18D/T | PREMIUM | MIDR06.20.45E/41 | 339 | 1996– | |
| RENAULT TRUCKS | Distribution 340.19D | PREMIUM | MIDR06.20.45E/41 | 339 | 1996– | |
| RENAULT TRUCKS | Distribution 340.19D/T | PREMIUM | MIDR06.20.45E/41 | 339 | 1996– | |
| RENAULT TRUCKS | Distribution 340.26D | PREMIUM | MIDR06.20.45E/41 | 339 | 1996– | |
| RENAULT TRUCKS | Distribution 370.18 | PREMIUM | dCi11E | 362 | 2000– | |
| RENAULT TRUCKS | Distribution 370.18D | PREMIUM | dCi11E | 362 | 2000– | |
| RENAULT TRUCKS | Distribution 370.24D | PREMIUM | dCi11E | 362 | 2000– | |
| RENAULT TRUCKS | Distribution 370.26D | PREMIUM | dCi11E | 362 | 2000– | |
| RENAULT TRUCKS | Distribution 400.18D/T | PREMIUM | MIDR06.23.56B/41 | 392 | 2000– | |
| RENAULT TRUCKS | Distribution 420.18 | PREMIUM | dCi11C | 412 | 2000– | |
| RENAULT TRUCKS | Distribution 420.18D | PREMIUM | dCi11C | 412 | 2000– | |
| RENAULT TRUCKS | Route 300.16 | PREMIUM | MIDR06.20.45D/41 | 298 | 1996– | |
| RENAULT TRUCKS | Route 300.18 | PREMIUM | MIDR06.20.45D/41 | 298 | 1996– | |
| RENAULT TRUCKS | Route 300.18T | PREMIUM | MIDR06.20.45D/41 | 298 | 1996– | |
| RENAULT TRUCKS | Route 300.19 | PREMIUM | MIDR06.20.45D/41 | 298 | 1996– | |
| RENAULT TRUCKS | Route 300.19T | PREMIUM | MIDR06.20.45D/41 | 298 | 1996– | |
| RENAULT TRUCKS | Route 320.18 | PREMIUM | dCi11G | 313 | 2000– | |
| RENAULT TRUCKS | Route 340.18 | PREMIUM | MIDR06.20.45E/41 | 339 | 1996– | |
| RENAULT TRUCKS | Route 340.18T | PREMIUM | MIDR06.20.45E/41 | 339 | 1996– | |
| RENAULT TRUCKS | Route 340.19 | PREMIUM | MIDR06.20.45E/41 | 339 | 1996– | |
| RENAULT TRUCKS | Route 340.19T | PREMIUM | MIDR06.20.45E/41 | 339 | 1996– | |
| RENAULT TRUCKS | Route 340.24 | PREMIUM | MIDR06.20.45E/41 | 339 | 1996– | |
| RENAULT TRUCKS | Route 340.26 | PREMIUM | MIDR06.20.45E/41 | 339 | 1996– | |
| RENAULT TRUCKS | Route 370.18 | PREMIUM | dCi11E | 362 | 2000– | |
| RENAULT TRUCKS | Route 370.24 | PREMIUM | dCi11E | 362 | 2000– | |
| RENAULT TRUCKS | Route 370.26 | PREMIUM | dCi11E | 362 | 2000– | |
| RENAULT TRUCKS | Route 385.18,400.18 | PREMIUM | MIDR06.23.56A/41 | 381-392 | 1996– | |
| RENAULT TRUCKS | Route 385.18,400.18 | PREMIUM | MIDR06.23.56B/41 | 381-392 | 1996– | |
| RENAULT TRUCKS | Route 385.18T,400.18T | PREMIUM | MIDR06.23.56A/41 | 381-392 | 1996– | |
| RENAULT TRUCKS | Route 385.18T,400.18T | PREMIUM | MIDR06.23.56B/41 | 381-392 | 1996– | |
| RENAULT TRUCKS | Route 385.19,400.19 | PREMIUM | MIDR06.23.56A/41 | 381-392 | 1996– | |
| RENAULT TRUCKS | Route 385.19,400.19 | PREMIUM | MIDR06.23.56B/41 | 381-392 | 1996– | |
| RENAULT TRUCKS | Route 385.19T,400.19T | PREMIUM | MIDR06.23.56B/41 | 381-392 | 1996– | |
| RENAULT TRUCKS | Route 385.19T,400.19T | PREMIUM | MIDR06.23.56A/41 | 381-392 | 1996– | |
| RENAULT TRUCKS | Route 385.24,400.24 | PREMIUM | MIDR06.23.56A/41 | 381-392 | 1996– | |
| RENAULT TRUCKS | Route 385.24,400.24 | PREMIUM | MIDR06.23.56B/41 | 381-392 | 1996– | |
| RENAULT TRUCKS | Route 385.24T,400.24T | PREMIUM | MIDR06.23.56B/41 | 381-392 | 1996– | |
| RENAULT TRUCKS | Route 385.24T,400.24T | PREMIUM | MIDR06.23.56A/41 | 381-392 | 1996– | |
| RENAULT TRUCKS | Route 385.26 | PREMIUM | MIDR06.23.56A/41 | 381 | 1996– | |
| RENAULT TRUCKS | Route 385.26,400.26 | PREMIUM | MIDR06.23.56B/41 | 381-392 | 1996– | |
| RENAULT TRUCKS | Route 385.26,400.26 | PREMIUM | MIDR06.23.56A/41 | 381-392 | 1996– | |
| RENAULT TRUCKS | Route 420.18 | PREMIUM | dCi11C | 412 | 2000– | |
| RENAULT TRUCKS | Route 420.18T | PREMIUM | dCi11B/43 | 412 | 2000– | |
| RENAULT TRUCKS | Route 420.18T | PREMIUM | dCi11C | 412 | 2000– | |
| RENAULT TRUCKS | Route 420.24 | PREMIUM | dCi11C | 412 | 2000– | |
| RENAULT TRUCKS | Route 420.25 | PREMIUM | dCi11C | 412 | 2000– | |
| RENAULT TRUCKS | Route 420.26 | PREMIUM | dCi11C | 412 | 2000– |
