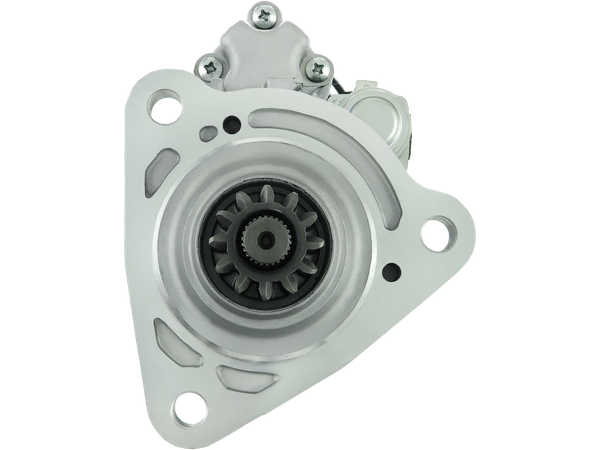

S5049
Startmotorer
STANDARD LINE
2016 kr
Köp nu
| EAN | 5901259423358 |
| Tillverkare | AS-PL |
| Ersätter | MITSUBISHI |
| OE-nummer | M9T80472 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 24 |
| Effekt [ kW ] | 6.20 |
| Startmotors rotation | CW |
| A-storlek [ mm ] | 92.00 |
| B-storlek [ mm ] | 47.00 |
| Antal kuggar [ qty. ] | 12 |
| Antal kuggar (passar in) [ qty. ] | 12 |
| Antal hål i huvudet [ qty. ] | 3 |
| Antal gängade hål [ qty. ] | 0 |
| L.1 [ mm ] | 348.00 |
| O.1 [ mm ] | 126.50 |
| O.2 [ mm ] | 126.50 |
| O.3 [ mm ] | 126.50 |
| C.1 [ mm ] | 14.00 |
| C.2 [ mm ] | 14.00 |
| C.3 [ mm ] | 14.00 |
Passar i 4138 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| MERCEDES-BENZ | 1831 AK | ACTROS | OM541.926 | 313 | 1997–2002 | |
| MERCEDES-BENZ | 1831 AK | ACTROS | OM541.941 | 313 | 1997–2002 | |
| MERCEDES-BENZ | 1831 AK | ACTROS MP2 / MP3 | OM541.926 | 313 | 2003– | |
| MERCEDES-BENZ | 1831 AK | ACTROS MP2 / MP3 | OM541.941 | 313 | 2003– | |
| MERCEDES-BENZ | 1831 K | ACTROS | OM541.920 | 313 | 1997–2002 | |
| MERCEDES-BENZ | 1831 K | ACTROS | OM541.940 | 313 | 1997–2002 | |
| MERCEDES-BENZ | 1831 K | ACTROS MP2 / MP3 | OM541.920 | 313 | 2003– | |
| MERCEDES-BENZ | 1831 K | ACTROS MP2 / MP3 | OM541.940 | 313 | 2003– | |
| MERCEDES-BENZ | 1831 LL | ACTROS | OM541.940 | 313 | 1996–2002 | |
| MERCEDES-BENZ | 1831 LL | ACTROS | OM541.920 | 313 | 1996–2002 | |
| MERCEDES-BENZ | 1831 S, 1831 LS | ACTROS | OM541.940 | 313 | 1996–2002 | |
| MERCEDES-BENZ | 1831 S, 1831 LS | ACTROS | OM541.920 | 313 | 1996–2002 | |
| MERCEDES-BENZ | 1831, 1831 L | ACTROS | OM541.920 | 313 | 1996–2002 | |
| MERCEDES-BENZ | 1832 AK | ACTROS MP2 / MP3 | OM541.971 | 320 | 2003– | |
| MERCEDES-BENZ | 1832 AK | ACTROS MP2 / MP3 | OM541.940 | 320 | 2003– | |
| MERCEDES-BENZ | 1832 AK | ACTROS MP2 / MP3 | OM541.997 | 320 | 2003– | |
| MERCEDES-BENZ | 1832 K | ACTROS MP2 / MP3 | OM541.970 | 320 | 2003– | |
| MERCEDES-BENZ | 1832 K | ACTROS MP2 / MP3 | OM541.940 | 320 | 2003– | |
| MERCEDES-BENZ | 1832 K | ACTROS MP2 / MP3 | OM541.996 | 320 | 2003– | |
| MERCEDES-BENZ | 1832, L, LL | ACTROS MP2 / MP3 | OM541.940 | 320 | 2003– | |
| MERCEDES-BENZ | 1832, L, LL | ACTROS MP2 / MP3 | OM541.970 | 320 | 2003– | |
| MERCEDES-BENZ | 1832, LS, LLS | ACTROS MP2 / MP3 | OM541.970 | 320 | 2003– | |
| MERCEDES-BENZ | 1832, LS, LLS | ACTROS MP2 / MP3 | OM541.940 | 320 | 2003– | |
| MERCEDES-BENZ | 1833 | AROCS | OM470.913 | 326 | 2013– | |
| MERCEDES-BENZ | 1833 | AROCS | OM470.910 | 326 | 2013– | |
| MERCEDES-BENZ | 1833 | AROCS | OM470.906 | 326 | 2013– | |
| MERCEDES-BENZ | 1833 A | AROCS | OM470.906 | 326 | 2013– | |
| MERCEDES-BENZ | 1833 A | AROCS | OM470.913 | 326 | 2013– | |
| MERCEDES-BENZ | 1833 A | AROCS | OM470.903 | 326 | 2013– | |
| MERCEDES-BENZ | 1833 A | AROCS | OM470.910 | 326 | 2013– | |
| MERCEDES-BENZ | 1833 AK | AROCS | OM470.913 | 326 | 2013– | |
| MERCEDES-BENZ | 1833 AK | AROCS | OM470.903 | 326 | 2013– | |
| MERCEDES-BENZ | 1833 AK | AROCS | OM470.910 | 326 | 2013– | |
| MERCEDES-BENZ | 1833 AK | AROCS | OM470.906 | 326 | 2013– | |
| MERCEDES-BENZ | 1833 AS | AROCS | OM470.910 | 326 | 2013– | |
| MERCEDES-BENZ | 1833 AS | AROCS | OM470.903 | 326 | 2013– | |
| MERCEDES-BENZ | 1833 AS | AROCS | OM470.913 | 326 | 2013– | |
| MERCEDES-BENZ | 1833 K | AROCS | OM470.913 | 326 | 2013– | |
| MERCEDES-BENZ | 1833 K | AROCS | OM470.910 | 326 | 2013– | |
| MERCEDES-BENZ | 1833 K | AROCS | OM470.906 | 326 | 2013– | |
| MERCEDES-BENZ | 1833 L | ACTROS MP4 / MP5 | OM470.913 | 326 | 2011– | |
| MERCEDES-BENZ | 1833 L | ACTROS MP4 / MP5 | OM470.910 | 326 | 2013– | |
| MERCEDES-BENZ | 1833 L | ACTROS MP4 / MP5 | OM470.910 | 326 | 2011– | |
| MERCEDES-BENZ | 1833 L | ACTROS MP4 / MP5 | OM470.906 | 326 | 2013– | |
| MERCEDES-BENZ | 1833 L | ACTROS MP4 / MP5 | OM470.906 | 326 | 2011– | |
| MERCEDES-BENZ | 1833 L | ACTROS MP4 / MP5 | OM470.913 | 326 | 2013– | |
| MERCEDES-BENZ | 1833 L | ANTOS | OM470.906 | 326 | 2012–2018 | |
| MERCEDES-BENZ | 1833 L | ANTOS | OM470.913 | 326 | 2012–2018 | |
| MERCEDES-BENZ | 1833 L | ANTOS | OM470.906 | 326 | 2013–2018 | |
| MERCEDES-BENZ | 1833 L | ANTOS | OM470.913 | 326 | 2013–2018 | |
| MERCEDES-BENZ | 1833 L | ANTOS | OM470.910 | 326 | 2012–2018 | |
| MERCEDES-BENZ | 1833 L | ANTOS | OM470.910 | 326 | 2013–2018 | |
| MERCEDES-BENZ | 1833 L | AROCS | OM470.910 | 326 | 2013– | |
| MERCEDES-BENZ | 1833 L | AROCS | OM470.906 | 326 | 2013– | |
| MERCEDES-BENZ | 1833 L | AROCS | OM470.913 | 326 | 2013– | |
| MERCEDES-BENZ | 1833 LK | AROCS | OM470.913 | 326 | 2013– | |
| MERCEDES-BENZ | 1833 LK | AROCS | OM470.906 | 326 | 2013– | |
| MERCEDES-BENZ | 1833 LK | AROCS | OM470.910 | 326 | 2013– | |
| MERCEDES-BENZ | 1833 LS | ACTROS MP4 / MP5 | OM470.910 | 326 | 2013– | |
| MERCEDES-BENZ | 1833 LS | ACTROS MP4 / MP5 | OM470.906 | 326 | 2011– | |
| MERCEDES-BENZ | 1833 LS | ACTROS MP4 / MP5 | OM470.913 | 326 | 2011– | |
| MERCEDES-BENZ | 1833 LS | ACTROS MP4 / MP5 | OM470.906 | 326 | 2013– | |
| MERCEDES-BENZ | 1833 LS | ACTROS MP4 / MP5 | OM470.913 | 326 | 2013– | |
| MERCEDES-BENZ | 1833 LS | ACTROS MP4 / MP5 | OM470.910 | 326 | 2011– | |
| MERCEDES-BENZ | 1833 LS | ANTOS | OM470.910 | 326 | 2013–2018 | |
| MERCEDES-BENZ | 1833 LS | ANTOS | OM470.906 | 326 | 2012–2018 | |
| MERCEDES-BENZ | 1833 LS | ANTOS | OM470.906 | 326 | 2013–2018 | |
| MERCEDES-BENZ | 1833 LS | ANTOS | OM470.913 | 326 | 2012–2018 | |
| MERCEDES-BENZ | 1833 LS | ANTOS | OM470.913 | 326 | 2013–2018 | |
| MERCEDES-BENZ | 1833 LS | ANTOS | OM470.910 | 326 | 2012–2018 | |
| MERCEDES-BENZ | 1833 LS | AROCS | OM470.913 | 326 | 2013– | |
| MERCEDES-BENZ | 1833 LS | AROCS | OM470.910 | 326 | 2013– | |
| MERCEDES-BENZ | 1833 LS | AROCS | OM470.906 | 326 | 2013– | |
| MERCEDES-BENZ | 1835 AK | ACTROS | OM541.943 | 354 | 1997–2002 | |
| MERCEDES-BENZ | 1835 AK | ACTROS | OM541.927 | 354 | 1997–2002 | |
| MERCEDES-BENZ | 1835 AK | ACTROS MP2 / MP3 | OM541.943 | 354 | 2003– | |
| MERCEDES-BENZ | 1835 AK | ACTROS MP2 / MP3 | OM541.927 | 354 | 2003– | |
| MERCEDES-BENZ | 1835 K | ACTROS | OM541.922 | 354 | 1997–2002 | |
| MERCEDES-BENZ | 1835 K | ACTROS | OM541.942 | 354 | 1997–2002 | |
| MERCEDES-BENZ | 1835 K | ACTROS MP2 / MP3 | OM541.922 | 354 | 2003– | |
| MERCEDES-BENZ | 1835 K | ACTROS MP2 / MP3 | OM541.942 | 354 | 2003– | |
| MERCEDES-BENZ | 1835 LS | AXOR | OM457.937 | 354 | 2002–2004 | |
| MERCEDES-BENZ | 1835 LS | AXOR 2 | OM457.937 | 354 | 2011– | |
| MERCEDES-BENZ | 1835 S, 1835 LS | ACTROS | OM541.922 | 354 | 1996–2002 | |
| MERCEDES-BENZ | 1835 S, 1835 LS | ACTROS | OM541.942 | 354 | 1996–2002 | |
| MERCEDES-BENZ | 1835, 1835 L | ACTROS | OM541.922 | 354 | 1996–2002 | |
| MERCEDES-BENZ | 1836 | AROCS | OM470.906 | 360 | 2013– | |
| MERCEDES-BENZ | 1836 | AROCS | OM470.913 | 360 | 2013– | |
| MERCEDES-BENZ | 1836 | AROCS | OM470.910 | 360 | 2013– | |
| MERCEDES-BENZ | 1836 A | ACTROS MP2 / MP3 | OM541.943 | 360 | 2002– | |
| MERCEDES-BENZ | 1836 A | AROCS | OM470.903 | 360 | 2013– | |
| MERCEDES-BENZ | 1836 A | AROCS | OM470.910 | 360 | 2013– | |
| MERCEDES-BENZ | 1836 A | AROCS | OM470.906 | 360 | 2013– | |
| MERCEDES-BENZ | 1836 A | AROCS | OM470.913 | 360 | 2013– | |
| MERCEDES-BENZ | 1836 AK | ACTROS MP2 / MP3 | OM541.942 | 360 | 2003– | |
| MERCEDES-BENZ | 1836 AK | ACTROS MP2 / MP3 | OM541.999 | 360 | 2003– | |
| MERCEDES-BENZ | 1836 AK | AROCS | OM470.906 | 360 | 2013– | |
| MERCEDES-BENZ | 1836 AK | AROCS | OM470.913 | 360 | 2013– | |
| MERCEDES-BENZ | 1836 AK | AROCS | OM470.903 | 360 | 2013– | |
| MERCEDES-BENZ | 1836 AK | AROCS | OM470.910 | 360 | 2013– | |
| MERCEDES-BENZ | 1836 AS | AROCS | OM470.913 | 360 | 2013– | |
| MERCEDES-BENZ | 1836 AS | AROCS | OM470.910 | 360 | 2013– | |
| MERCEDES-BENZ | 1836 AS | AROCS | OM470.903 | 360 | 2013– | |
| MERCEDES-BENZ | 1836 K | ACTROS MP2 / MP3 | OM541.972 | 360 | 2003– | |
| MERCEDES-BENZ | 1836 K | ACTROS MP2 / MP3 | OM541.942 | 360 | 2003– | |
| MERCEDES-BENZ | 1836 K | ACTROS MP2 / MP3 | OM541.998 | 360 | 2003– | |
| MERCEDES-BENZ | 1836 K | AROCS | OM470.910 | 360 | 2013– | |
| MERCEDES-BENZ | 1836 K | AROCS | OM470.906 | 360 | 2013– | |
| MERCEDES-BENZ | 1836 K | AROCS | OM470.913 | 360 | 2013– | |
| MERCEDES-BENZ | 1836 L | ACTROS MP4 / MP5 | OM470.906 | 360 | 2011– | |
| MERCEDES-BENZ | 1836 L | ACTROS MP4 / MP5 | OM470.913 | 360 | 2013– | |
| MERCEDES-BENZ | 1836 L | ACTROS MP4 / MP5 | OM470.913 | 360 | 2011– | |
| MERCEDES-BENZ | 1836 L | ACTROS MP4 / MP5 | OM470.910 | 360 | 2013– | |
| MERCEDES-BENZ | 1836 L | ACTROS MP4 / MP5 | OM470.910 | 360 | 2011– | |
| MERCEDES-BENZ | 1836 L | ACTROS MP4 / MP5 | OM470.906 | 360 | 2013– | |
| MERCEDES-BENZ | 1836 L | ANTOS | OM470.906 | 360 | 2012–2018 | |
| MERCEDES-BENZ | 1836 L | ANTOS | OM470.910 | 360 | 2013–2018 | |
| MERCEDES-BENZ | 1836 L | ANTOS | OM470.913 | 360 | 2012–2018 | |
| MERCEDES-BENZ | 1836 L | ANTOS | OM470.906 | 360 | 2013–2018 | |
| MERCEDES-BENZ | 1836 L | ANTOS | OM470.910 | 360 | 2012–2018 | |
| MERCEDES-BENZ | 1836 L | ANTOS | OM470.913 | 360 | 2013–2018 | |
| MERCEDES-BENZ | 1836 L | AROCS | OM470.906 | 360 | 2013– | |
| MERCEDES-BENZ | 1836 L | AROCS | OM470.910 | 360 | 2013– | |
| MERCEDES-BENZ | 1836 L | AROCS | OM470.913 | 360 | 2013– | |
| MERCEDES-BENZ | 1836 LK | AROCS | OM470.910 | 360 | 2013– | |
| MERCEDES-BENZ | 1836 LK | AROCS | OM470.906 | 360 | 2013– | |
| MERCEDES-BENZ | 1836 LK | AROCS | OM470.913 | 360 | 2013– | |
| MERCEDES-BENZ | 1836 LS | ACTROS MP4 / MP5 | OM470.913 | 360 | 2011– | |
| MERCEDES-BENZ | 1836 LS | ACTROS MP4 / MP5 | OM470.910 | 360 | 2013– | |
| MERCEDES-BENZ | 1836 LS | ACTROS MP4 / MP5 | OM470.910 | 360 | 2011– | |
| MERCEDES-BENZ | 1836 LS | ACTROS MP4 / MP5 | OM470.906 | 360 | 2013– | |
| MERCEDES-BENZ | 1836 LS | ACTROS MP4 / MP5 | OM470.906 | 360 | 2011– | |
| MERCEDES-BENZ | 1836 LS | ACTROS MP4 / MP5 | OM470.913 | 360 | 2013– | |
| MERCEDES-BENZ | 1836 LS | ANTOS | OM470.913 | 360 | 2012–2018 | |
| MERCEDES-BENZ | 1836 LS | ANTOS | OM470.913 | 360 | 2013–2018 | |
| MERCEDES-BENZ | 1836 LS | ANTOS | OM470.910 | 360 | 2012–2018 | |
| MERCEDES-BENZ | 1836 LS | ANTOS | OM470.910 | 360 | 2013–2018 | |
| MERCEDES-BENZ | 1836 LS | ANTOS | OM470.906 | 360 | 2012–2018 | |
| MERCEDES-BENZ | 1836 LS | ANTOS | OM470.906 | 360 | 2013–2018 | |
| MERCEDES-BENZ | 1836 LS | AROCS | OM470.906 | 360 | 2013– | |
| MERCEDES-BENZ | 1836 LS | AROCS | OM470.913 | 360 | 2013– | |
| MERCEDES-BENZ | 1836 LS | AROCS | OM470.910 | 360 | 2013– | |
| MERCEDES-BENZ | 1836 LS, LLS | ACTROS MP2 / MP3 | OM541.942 | 360 | 2003– | |
| MERCEDES-BENZ | 1836 LS, LLS | AXOR 2 | OM457.948 | 360 | 2004– | |
| MERCEDES-BENZ | 1836 LS, LLS | AXOR 2 | OM457.937 | 360 | 2004– | |
| MERCEDES-BENZ | 1836 LS, LLS | AXOR 2 | OM457.980 | 360 | 2004– | |
| MERCEDES-BENZ | 1836 S, 1836 LS | AROCS | OM470.910 | 360 | 2013– | |
| MERCEDES-BENZ | 1836 S, 1836 LS | AROCS | OM470.906 | 360 | 2013– | |
| MERCEDES-BENZ | 1836 S, 1836 LS | AROCS | OM470.913 | 360 | 2013– | |
| MERCEDES-BENZ | 1836, L, LL | ACTROS MP2 / MP3 | OM541.942 | 360 | 2003– | |
| MERCEDES-BENZ | 1840 | AROCS | OM470.906 | 394 | 2013– | |
| MERCEDES-BENZ | 1840 | AROCS | OM470.913 | 394 | 2013– | |
| MERCEDES-BENZ | 1840 | AROCS | OM470.910 | 394 | 2013– | |
| MERCEDES-BENZ | 1840 A | AROCS | OM470.906 | 394 | 2013– | |
| MERCEDES-BENZ | 1840 A | AROCS | OM470.913 | 394 | 2013– | |
| MERCEDES-BENZ | 1840 A | AROCS | OM470.903 | 394 | 2013– | |
| MERCEDES-BENZ | 1840 A | AROCS | OM470.910 | 394 | 2013– | |
| MERCEDES-BENZ | 1840 AK | ACTROS | OM541.945 | 394 | 1997–2002 | |
| MERCEDES-BENZ | 1840 AK | ACTROS | OM541.924 | 394 | 1997–2002 | |
| MERCEDES-BENZ | 1840 AK | ACTROS MP2 / MP3 | OM541.945 | 394 | 2003– | |
| MERCEDES-BENZ | 1840 AK | ACTROS MP2 / MP3 | OM541.924 | 394 | 2003– | |
| MERCEDES-BENZ | 1840 AK | AROCS | OM470.906 | 394 | 2013– | |
| MERCEDES-BENZ | 1840 AK | AROCS | OM470.913 | 394 | 2013– | |
| MERCEDES-BENZ | 1840 AK | AROCS | OM470.903 | 394 | 2013– | |
| MERCEDES-BENZ | 1840 AK | AROCS | OM470.910 | 394 | 2013– | |
| MERCEDES-BENZ | 1840 AS | AROCS | OM470.913 | 394 | 2013– | |
| MERCEDES-BENZ | 1840 AS | AROCS | OM470.910 | 394 | 2013– | |
| MERCEDES-BENZ | 1840 AS | AROCS | OM470.903 | 394 | 2013– | |
| MERCEDES-BENZ | 1840 K | ACTROS | OM541.944 | 394 | 1997–2002 | |
| MERCEDES-BENZ | 1840 K | ACTROS | OM541.923 | 394 | 1997–2002 | |
| MERCEDES-BENZ | 1840 K | ACTROS MP2 / MP3 | OM541.944 | 394 | 2003– | |
| MERCEDES-BENZ | 1840 K | ACTROS MP2 / MP3 | OM541.923 | 394 | 2003– | |
| MERCEDES-BENZ | 1840 K | AROCS | OM470.913 | 394 | 2013– | |
| MERCEDES-BENZ | 1840 K | AROCS | OM470.910 | 394 | 2013– | |
| MERCEDES-BENZ | 1840 K | AROCS | OM470.906 | 394 | 2013– | |
| MERCEDES-BENZ | 1840 L | ACTROS MP4 / MP5 | OM470.910 | 394 | 2013– | |
| MERCEDES-BENZ | 1840 L | ACTROS MP4 / MP5 | OM470.910 | 394 | 2011– | |
| MERCEDES-BENZ | 1840 L | ACTROS MP4 / MP5 | OM470.906 | 394 | 2013– | |
| MERCEDES-BENZ | 1840 L | ACTROS MP4 / MP5 | OM470.906 | 394 | 2011– | |
| MERCEDES-BENZ | 1840 L | ACTROS MP4 / MP5 | OM470.913 | 394 | 2013– | |
| MERCEDES-BENZ | 1840 L | ACTROS MP4 / MP5 | OM470.913 | 394 | 2011– | |
| MERCEDES-BENZ | 1840 L | ANTOS | OM470.913 | 394 | 2013–2018 | |
| MERCEDES-BENZ | 1840 L | ANTOS | OM470.910 | 394 | 2012–2018 | |
| MERCEDES-BENZ | 1840 L | ANTOS | OM470.910 | 394 | 2013–2018 | |
| MERCEDES-BENZ | 1840 L | ANTOS | OM470.906 | 394 | 2012–2018 | |
| MERCEDES-BENZ | 1840 L | ANTOS | OM470.906 | 394 | 2013–2018 | |
| MERCEDES-BENZ | 1840 L | ANTOS | OM470.913 | 394 | 2012–2018 | |
| MERCEDES-BENZ | 1840 L | AROCS | OM470.913 | 394 | 2013– | |
| MERCEDES-BENZ | 1840 L | AROCS | OM470.910 | 394 | 2013– | |
| MERCEDES-BENZ | 1840 L | AROCS | OM470.906 | 394 | 2013– | |
| MERCEDES-BENZ | 1840 LK | AROCS | OM470.910 | 394 | 2013– | |
| MERCEDES-BENZ | 1840 LK | AROCS | OM470.906 | 394 | 2013– | |
| MERCEDES-BENZ | 1840 LK | AROCS | OM470.913 | 394 | 2013– | |
| MERCEDES-BENZ | 1840 LS | ACTROS MP4 / MP5 | OM470.910 | 394 | 2011– | |
| MERCEDES-BENZ | 1840 LS | ACTROS MP4 / MP5 | OM470.910 | 394 | 2013– | |
| MERCEDES-BENZ | 1840 LS | ACTROS MP4 / MP5 | OM470.906 | 394 | 2011– | |
| MERCEDES-BENZ | 1840 LS | ACTROS MP4 / MP5 | OM470.913 | 394 | 2011– | |
| MERCEDES-BENZ | 1840 LS | ACTROS MP4 / MP5 | OM470.906 | 394 | 2013– | |
| MERCEDES-BENZ | 1840 LS | ACTROS MP4 / MP5 | OM470.913 | 394 | 2013– | |
| MERCEDES-BENZ | 1840 LS | ANTOS | OM470.910 | 394 | 2012–2018 |
Visar 200 av 4138 fordon
