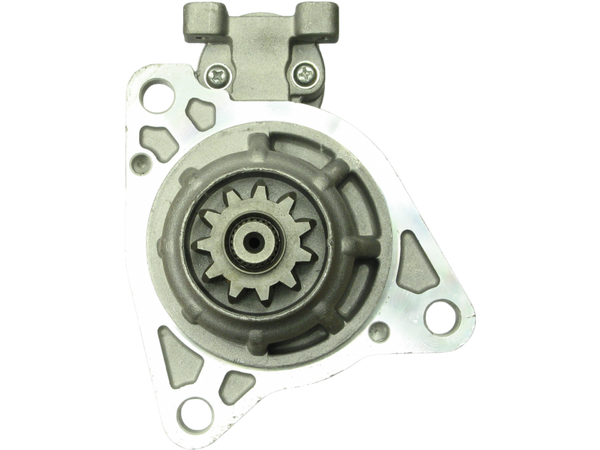

S5071
Startmotorer
STANDARD LINE
2047 kr
Köp nu
| EAN | 5901259453980 |
| Tillverkare | AS-PL |
| Ersätter | MITSUBISHI |
| OE-nummer | M9T60171 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 24 |
| Effekt [ kW ] | 5.50 |
| Startmotors rotation | CW |
| A-storlek [ mm ] | 100.00 |
| B-storlek [ mm ] | 70.00 |
| Antal kuggar [ qty. ] | 11 |
| Antal kuggar (passar in) [ qty. ] | 11 |
| Antal hål i huvudet [ qty. ] | 3 |
| Antal gängade hål [ qty. ] | 0 |
| L.1 [ mm ] | 310.00 |
| O.1 [ mm ] | 149.00 |
| O.2 [ mm ] | 109.50 |
| O.3 [ mm ] | 133.50 |
| C.1 [ mm ] | 14.00 |
| C.2 [ mm ] | 14.00 |
| C.3 [ mm ] | 14.00 |
Passar i 8 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| HONDA | 3.5 AWD | PILOT | J35A6 | 258 | Petrol | 2004–2005 |
| KOBELCO | 11.1 | SK300 | 6D22 | 0 | 1999–2007 | |
| KOBELCO | 11.1 | SK400 | 6D22 | 0 | 1999–2007 | |
| MITSUBISHI | 11.1 | Fuso | 6D22T | 0 | 1987–1999 | |
| MITSUBISHI | 11.1 | MS280 | 6D22 | 0 | 1999–2007 | |
| MITSUBISHI | 11.1 | MS380 | 6D22 | 0 | 1999–2007 | |
| MITSUBISHI | 11.9 | MS280 | 6D24 | 0 | 1999–2007 | |
| MITSUBISHI | 11.9 | MS380 | 6D24 | 0 | 1999–2007 |
