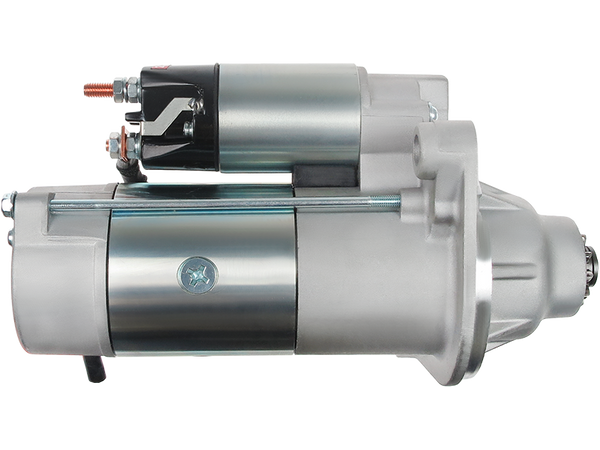

S5107
Startmotorer
STANDARD LINE
1130 kr
Köp nu
| EAN | 5901259469516 |
| Tillverkare | AS-PL |
| Ersätter | MITSUBISHI |
| OE-nummer | M8T60071 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 24 |
| Effekt [ kW ] | 5.00 |
| Startmotors rotation | CW |
| A-storlek [ mm ] | 110.00 |
| B-storlek [ mm ] | 67.00 |
| Antal kuggar [ qty. ] | 11 |
| Antal kuggar (passar in) [ qty. ] | 11 |
| Antal hål i huvudet [ qty. ] | 2 |
| Antal gängade hål [ qty. ] | 0 |
| L.1 [ mm ] | 288.00 |
| O.1 [ mm ] | 151.00 |
| C.1 [ mm ] | 13.50 |
| C.2 [ mm ] | 13.50 |
Passar i 20 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| CATERPILLAR | 315 | 0 | – | |||
| CATERPILLAR | 315B | 0 | – | |||
| CATERPILLAR | 315C | 0 | – | |||
| CATERPILLAR | 315C L | 0 | – | |||
| CATERPILLAR | 315L | 0 | – | |||
| CATERPILLAR | 317B | 0 | – | |||
| CATERPILLAR | 317BLN | 0 | – | |||
| CATERPILLAR | 318BL | 0 | – | |||
| CATERPILLAR | 318BLN | 0 | – | |||
| CATERPILLAR | DP100 | 0 | – | |||
| CATERPILLAR | DP115 | 0 | – | |||
| CATERPILLAR | 8.2 | FK618 | 6D17 | 0 | 1994– | |
| KOBELCO | SK290LC | 0 | – | |||
| KOBELCO | SK290LC-6 | 0 | – | |||
| KOBELCO | SK330LC | 0 | – | |||
| KOBELCO | SK330LC-6 | 0 | – | |||
| KOBELCO | SK370-IV | 0 | – | |||
| MITSUBISHI | 7.5 | Engine | 6D16 | 0 | – | |
| TADANO | TR600XL-3 | 0 | – | |||
| VOLVO | EC70 | 0 | – |
