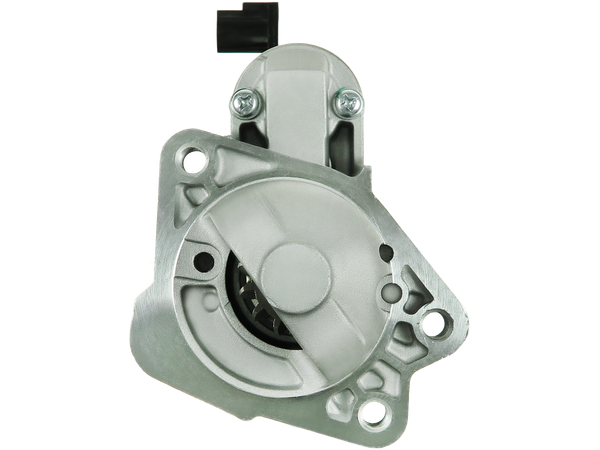

S5289S
Startmotorer
STANDARD LINE
723 kr
Köp nu
| EAN | 5902129083405 |
| Tillverkare | AS-PL |
| Ersätter | MITSUBISHI |
| OE-nummer | M0T38271 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 12 |
| Effekt [ kW ] | 1.40 |
| Startmotors rotation | CW |
| A-storlek [ mm ] | 74.00 |
| B-storlek [ mm ] | 15.00 |
| Antal kuggar [ qty. ] | 13 |
| Antal hål i huvudet [ qty. ] | 3 |
| Antal gängade hål [ qty. ] | 3 |
| L.1 [ mm ] | 206.00 |
| O.1 [ mm ] | 37.00 |
| O.2 [ mm ] | 106.00 |
| O.3 [ mm ] | 100.00 |
| C.1 [ mm ] | M10x1.25 |
| C.2 [ mm ] | M10x1.25 |
| C.3 [ mm ] | M10x1.25 |
Passar i 7 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| MAZDA | 1.5 (DE5FS) | 2 (DE_, DH_) | ZY84 | 103 | Petrol | 2007–2015 |
| MAZDA | 1.5 (DE5FS) | 2 (DE_, DH_) | ZY66 | 103 | Petrol | 2007–2015 |
| MAZDA | 1.5 (DE5FS) | 2 (DE_, DH_) | ZY-VE | 103 | Petrol | 2007–2015 |
| MAZDA | 1.5 (DE5FS, DE10Y) | 2 (DE_, DH_) | ZY-VE | 113 | Petrol | 2007–2015 |
| MAZDA | 1.5 MZR (DE5FS) | 2 (DE_, DH_) | ZY05 | 102 | Petrol | 2011–2015 |
| MAZDA | 1.5 MZR (DE5FS) | 2 (DE_, DH_) | ZY-VE | 102 | Petrol | 2011–2015 |
| MAZDA | 1.5 MZR (DE5FS) | 2 (DE_, DH_) | ZY66 | 102 | Petrol | 2011–2015 |
