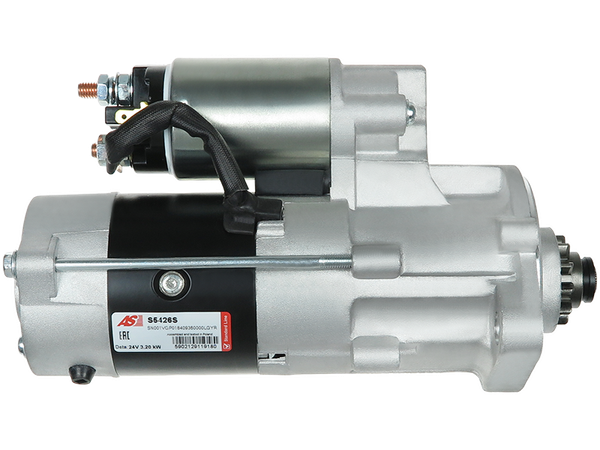

S5426S
Startmotorer
STANDARD LINE
1224 kr
Köp nu
| EAN | 5902129119180 |
| Tillverkare | AS-PL |
| Ersätter | MITSUBISHI |
| OE-nummer | M8T81571 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 24 |
| Effekt [ kW ] | 3.20 |
| Startmotors rotation | CW |
| A-storlek [ mm ] | 95.00 |
| B-storlek [ mm ] | 22.00 |
| Antal kuggar [ qty. ] | 11 |
| Antal hål i huvudet [ qty. ] | 2 |
| Antal gängade hål [ qty. ] | 0 |
| L.1 [ mm ] | 259.00 |
| O.1 [ mm ] | 119.00 |
| C.1 [ mm ] | 14.00 |
| C.2 [ mm ] | 14.00 |
Passar i 17 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| CASE IH | 2.2 | CX 80 | 4LE2X | 0 | 2004–2014 | |
| CASE IH | 2.2 | CX75SR | 4LE2X | 0 | 2008–2015 | |
| HITACHI | 2.2 | ZX75US-3 | 4LE2 | 0 | 2008–2014 | |
| HITACHI | 2.2 | ZX85USB-3 | 4LE2 | 0 | 2008–2014 | |
| JOHN DEERE | 2.2 | 75D | 4LE2 | 0 | 2008–2014 | |
| JOHN DEERE | 2.2 | 85 D | 4LE2 | 0 | 2008–2014 | |
| KOBELCO | 70SR | 4JG1 | 0 | 2011–2013 | ||
| KOBELCO | 75SR | 4LE2X | 0 | 2012–2014 | ||
| KOBELCO | 80CS | 4JB1 | 0 | 2002–2009 | ||
| KOBELCO | SK70SR-2 | 4LE2X | 0 | 2010–2013 | ||
| KOBELCO | SK75SR | 4LE2X | 0 | 2013–2015 | ||
| KOBELCO | SK80CS-2 | 4JB1 | 0 | 2002–2009 | ||
| KOBELCO | SK80CS-2 | 4LE2X | 0 | 2010–2013 | ||
| KOBELCO | SK85CS-3E | 4LE2X | 0 | 2013–2016 | ||
| NEW HOLLAND | E135B | D04FR(94HP) | 0 | 2008–2015 | ||
| NEW HOLLAND | E70B | 4LE2X | 0 | 2008–2012 | ||
| NEW HOLLAND | E80B | 4LE2X | 0 | 2008–2012 |
