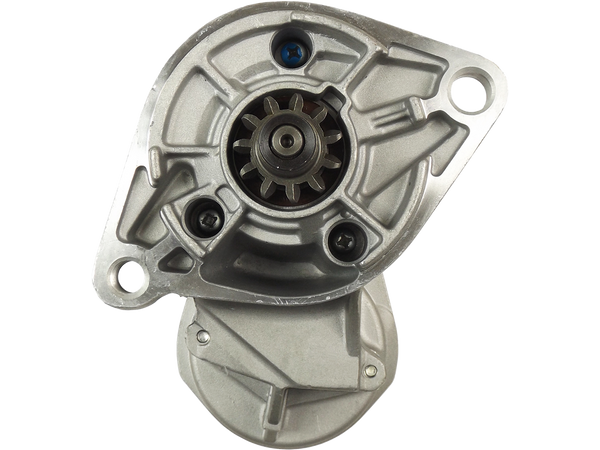

S6086
Startmotorer
STANDARD LINE
1225 kr
Köp nu
| EAN | 5901259469721 |
| Tillverkare | AS-PL |
| Ersätter | DENSO |
| OE-nummer |
AINDE: CGB-23184 AS-PL: S6086 CASCO: CST40621AS DENSO: 028000-5530, 028000-5620, 028000-5690, 028000-5691, 028000-9330, 028000-9331 ELECTROLOG: STR6025 ELSTOCK: 45-0195 KUHNER: 20656 LUCAS: LRS01811, LRS1811 REAL: 20432126BN SANDO: 6040621.0 SIOM: MAV426210A TOYOTA: 28100-56010, 28100-56030, 28100-56060, 28100-56100, 28100-56120, 2810056010, 2810056011, 2810056039 WAI / TRANSPO: 18181N, 2-2104-ND |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 24 |
| Effekt [ kW ] | 4.50 |
| Startmotors rotation | CW |
| A-storlek [ mm ] | 105.00 |
| B-storlek [ mm ] | 15.00 |
| Antal kuggar [ qty. ] | 11 |
| Antal kuggar (passar in) [ qty. ] | 11 |
| Antal hål i huvudet [ qty. ] | 2 |
| Antal gängade hål [ qty. ] | 1 |
| L.1 [ mm ] | 296.00 |
| O.1 [ mm ] | 146.50 |
| C.1 [ mm ] | 15.50 |
| C.2 [ mm ] | M14x1.5 |
Passar i 1 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| TOYOTA | 3.4 Diesel (BJ60, BJ61) | LAND CRUISER (_J6_) | 3B | 90 | Diesel | 1981–1987 |
