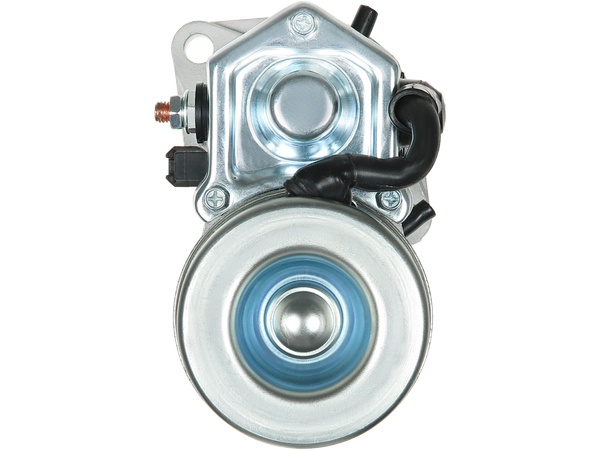

S6022
Startmotorer
STANDARD LINE
963 kr
Köp nu
| EAN | 5901259423617 |
| Tillverkare | AS-PL |
| Ersätter | DENSO |
| OE-nummer |
3EFFE: STRL107 AINDE: CGB-23006, CGB-23223 ANDEL: ANM15443X AS-PL: S6022 BOSCH: 0986016681 CARGO: 111559, F032111559 CASCO: CST40131AS CEVAM: 9735 DELCO: DRS3223, DS4333 DENSO: 028000-5710, 128000-0830 DIXIE: 240-23101, S-8935 EAI: 11748 ELSTOCK: 25-1308 ERA: 220777 HC PARTS: JS639 HELLA: 8EA012528-151, 8EA726525-001 HERTH+BUSS: J5219009 HITACHI: S13-114B, S13-210B, S13-210C, S14-210, S14-210A HYSTER: 1347064, 3122813 ISUZU: 8-94133758-5, 8-94433912-1, 8-94460417-0, 8-94460417-1, 8-97042979-2, 8-97042997-0, 8-97042997-1, 8-97042997-2, 8-97112549-0, 8-97120356-1, 8-97120356-2, 8-97146338-3, 8-97210505-0, 8-97941023-0 KRAUF: STH0639 KUHNER: 254041, 254041L LAUBER: 22.0639, 22.0639M LOGISTIK: 335489 LUCAS: LRT00114 MAGNETI MARELLI: 943241166010, 944280529090, MSR1166 OPEL: 1202017, 1202147, 6202024, 94433912, 97146338, 97210505, 97223653 PERKINS: 2873K401 POWERMAX: 8212120, 88212120 PRESTOLITE: 860872 REAL: 20432131BN ROVER: ADZ91211 SANDO: 6040131.0 SIDAT: S12HT0817A2 SIOM: MAV421310, MAV421310A WAI / TRANSPO: 18296N WOODAUTO: STR72032, WOOSTR72032 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 12 |
| Effekt [ kW ] | 2.00 |
| Startmotors rotation | CW |
| A-storlek [ mm ] | 95.00 |
| B-storlek [ mm ] | 10.00 |
| Antal kuggar [ qty. ] | 9 |
| Antal hål i huvudet [ qty. ] | 2 |
| Antal gängade hål [ qty. ] | 0 |
| L.1 [ mm ] | 235.00 |
| O.1 [ mm ] | 119.00 |
| C.1 [ mm ] | 13.00 |
| C.2 [ mm ] | 13.00 |
Passar i 17 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| ISUZU | 2.5 D 4WD (KBD47) | CAMPO (KB) | 4JA1 | 75 | Diesel | 1983–1990 |
| ISUZU | 2.8 TD | TROOPER I (UBS) | 4JB1-T | 101 | Diesel | 1987–1991 |
| ISUZU | 2.8 TD (UBS55) | TROOPER I (UBS) | 4JB1-T | 97 | Diesel | 1987–1991 |
| ISUZU | 2.8 TD (UBS55) | TROOPER I (UBS) | 4JB1-TC | 106 | Diesel | 1988–1991 |
| OPEL | 2.5 D (TFR54) | CAMPO (TF0, TF1) | 4JA1 | 76 | Diesel | 1991–1994 |
| OPEL | 2.5 D 4x4 (TFS54) | CAMPO (TF0, TF1) | 4JA1 | 76 | Diesel | 1991–1994 |
| OPEL | 2.5 DTI | CAMPO (TF0, TF1) | 4JA1-TC | 101 | Diesel | 2001–2001 |
| OPEL | 2.5 DTI 4x4 | CAMPO (TF0, TF1) | 4JA1-TC | 101 | Diesel | 2001–2001 |
| OPEL | 2.8 TD (5BMWL4, 5BSUD2) | FRONTERA A (U92) | 28TD | 113 | Diesel | 1995–1998 |
| OPEL | 2.8 TD (5BMWL4, 5BSUD2) | FRONTERA A (U92) | 28TDI(4JB1-T) | 113 | Diesel | 1995–1998 |
| OPEL | 2.8 TD (5BSUD2) | FRONTERA A Sport (U92) | 28TDI(4JB1-T) | 113 | Diesel | 1995–1996 |
| OPEL | 2.8 TD (5BSUD2) | FRONTERA A Sport (U92) | 28TD | 113 | Diesel | 1995–1996 |
| OPEL | 3.1 TD (TFR69) | CAMPO (TF0, TF1) | 4JG2T | 109 | Diesel | 1992–2001 |
| OPEL | 3.1 TD (UBS69D, UBS69G) | MONTEREY A (M92) | 4JG2TC | 114 | Diesel | 1991–1998 |
| VAUXHALL | 2.8 TD 4x4 Long | Frontera A | 28TDi | 0 | 1995–1998 | |
| VAUXHALL | 2.8 TD 4x4 Sport | Frontera A | 28TDi | 0 | 1995–1996 | |
| VAUXHALL | 3.1 TD 4x4 | Monterey A | 4JG2TC | 0 | 1991–1998 |
