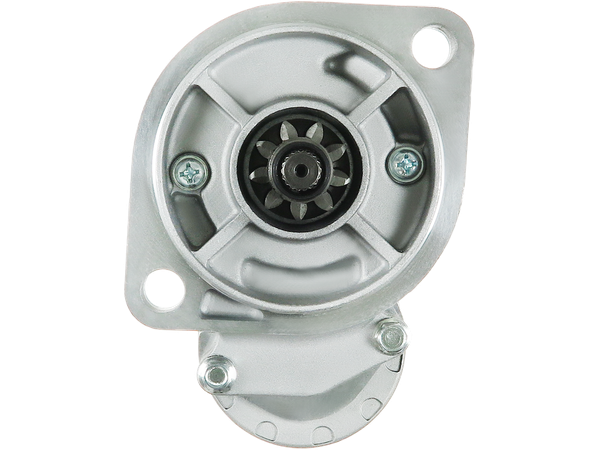

S6004
Startmotorer
STANDARD LINE
964 kr
Köp nu
| EAN | 5901259423426 |
| Tillverkare | AS-PL |
| Ersätter | DENSO |
| OE-nummer |
3EFFE: STRL277 ACAUTO: AC-JBS0552 AINDE: 25-1050CT, CGB-23245 AIRSTAL: 30-2314 ALANKO: 10440614 ANDEL: ANM99266 AS-PL: S6004, UD11123S ASHIKA: 003-U111 ATL AUTOTECHNIK: A76190 AUTO MAGNETO: AM-2221, AM-2221U AUTOELECTRO: AES6115 AUTOTEAM: SDN109A BOSCH: F042000004, F042000027 CARGO: 111683, F032111683 CASCO: CST40109AS, CST40109GS CEVAM: 8857, 9729 CHEVROLET: 65-26201-7059 CLARK: 8023898 COMLINE: CMA-621119 DAEWOO: 6526201-7059 DENSO: 021000-2470, 028000-6440, 028000-7000, 028000-7001, 028000-7002, 028000-7003, 028000-7004, 028000-7790, 028000-7791, 028000-7792, 128000-0020, 128000-0960, 128000-2881, 128000-3100, 128000-3101, 128000-4660, 128000-4661, 128000-4662, 128000-4663, 228000-3850, 228000-3851, 228000-3852, 228000-4290, 228000-4291, 228000-4292, 228000-4293, 228000-4295, 228000-5382, 228000-9690, 228080-9690, DSN2063 DIXIE: 246-20105, S-8152-1 DRI: 343001092 EAI: 11593 ELECTROLOG: STR6016 ELSTOCK: 25-1050 ERA: 220577, 220577A FRIESEN: 8052901 GHIBAUDI: SG0221, SG0221RB HC PARTS: JS552 HERTH+BUSS JAKOPARTS: J5219001 HITACHI: S13-136 HYSTER: 323812 ISEKI: 6281-100-010-1E, 6281-100-010-2F, 6281-100-010-2H ISUZU: 291255-9140, 581100-0800, 581100-1550, 581100-1660, 581100-1661, 581100-1662, 581100-1663, 581100-1664, 581100-1830, 581100-1831, 581100-1850, 581100-1860, 894412-7301, 894448-9590, 894448-9591, 894448-9592, 894448-9593, 897048-9650, 897048-9660, 897048-9661, 897048-9662, 897048-9672, 897048-9673, 897084-8770, 897112-8650, 897112-8651, 897112-8652, 897135-3431, 897135-3432, 982100-6070, 982100-6170 ITAB AUTOMOTIVE: 10040109AV JAPANPARTS: MTU111 JAPKO: 3U111 KRAFTVOLL GERMANY: 11010039 KRAUF: STN0552 KUHNER: 20552, 20552D, 20552V LE PART: LES0329 LOGISTIK: 335402, 336294 LUCAS: LRS00615 OPEL: 94448959 POONGSUNG: 03101-3030, 03101-3031, 20801-0M021 POWERMAX: 88212475 PROTECH: IR8430, IR8639 PSH: 130.502.092.441, S129.681 REAL: 20432901BN, 20432901OE REMANTE: 011-001-000554R RNL: RNL552JS ROLLCO: STM652 SANDO: 6040109.0, 6040109.1 SIOM: MAV5000A SNRA: IS9001 STARDAX: STX200239 STARTCAR: 593ST11 TESLA TECHNICS: TT15750 TMI: ST00351 WAI / TRANSPO: 16739N, 16739R, 19907N WILMINK GROUP: WG2013137 WILSON: 91-29-5074, 91-29-5074N WOODAUTO: DENDSN2063, STR70026, WOOSTR70026 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 12 |
| Effekt [ kW ] | 2.00 |
| Startmotors rotation | CW |
| A-storlek [ mm ] | 95.00 |
| B-storlek [ mm ] | 20.00 |
| Antal kuggar [ qty. ] | 9 |
| Antal kuggar (passar in) [ qty. ] | 9. 10 |
| Antal hål i huvudet [ qty. ] | 2 |
| Antal gängade hål [ qty. ] | 0 |
| L.1 [ mm ] | 230.00 |
| O.1 [ mm ] | 119.00 |
| C.1 [ mm ] | 13.50 |
| C.2 [ mm ] | 13.50 |
Passar i 55 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| ALLMAND | Maxi-Lite | 4LE1 | 0 | 1994–2005 | ||
| CHEVROLET | 2.2 D | BLAZER S10 | LQ7 | 63 | Diesel | 1983–1984 |
| CHEVROLET | 2.2 D | LUV Cab & Chassis | LQ7 | 58 | Diesel | 1980–1981 |
| CHEVROLET | 2.2 D | LUV Standard Cab Pickup | LQ7 | 58 | Diesel | 1980–1982 |
| CHEVROLET | 2.2 D | S10 Extended Cab Pickup | LQ7 | 63 | Diesel | 1984–1985 |
| CHEVROLET | 2.2 D 4WD | LUV Cab & Chassis | LQ7 | 58 | Diesel | 1980–1981 |
| CHEVROLET | 2.2 D 4WD | LUV Standard Cab Pickup | LQ7 | 58 | Diesel | 1980–1982 |
| CHEVROLET | 2.2 D 4WD | S10 Extended Cab Pickup | LQ7 | 63 | Diesel | 1984–1985 |
| CHEVROLET | 2.2 D AWD | BLAZER S10 | LQ7 | 63 | Diesel | 1983–1984 |
| DENYO | DCA-25PI-C | 4LE1 | 0 | 2001–2006 | ||
| DENYO | DIS-180SB | 4LE1 | 0 | 2001–2006 | ||
| DENYO | DIS-180SS | 4LE1 | 0 | 2001–2006 | ||
| GEHL | MG747B | 0 | 1984–1994 | |||
| GENIE | AL5000 | 4LE1PV02-506 | 0 | – | ||
| GENIE | AL5000 | 4LE2-522 | 0 | – | ||
| GENIE | AL8000HT | 4LE1PV02-502 | 0 | – | ||
| GENIE | T15 | 4LE1PV02-502 | 0 | – | ||
| GENIE | T25 | 4LE1PV02-502 | 0 | – | ||
| GENIE | T45 | 4JG1TPV | 0 | – | ||
| GMC | 2.2 D | S15 Cab & Chassis | LQ7 | 63 | Diesel | 1983–1985 |
| GMC | 2.2 D | S15 Extended Cab Pickup | LQ7 | 63 | Diesel | 1983–1985 |
| GMC | 2.2 D | S15 Standard Cab Pickup | LQ7 | 63 | Diesel | 1983–1985 |
| GMC | 2.2 D 4WD | S15 Cab & Chassis | LQ7 | 63 | Diesel | 1983–1985 |
| GMC | 2.2 D 4WD | S15 Extended Cab Pickup | LQ7 | 63 | Diesel | 1983–1985 |
| GMC | 2.2 D 4WD | S15 Standard Cab Pickup | LQ7 | 63 | Diesel | 1983–1985 |
| HITACHI | EX27U | 3LD1-PA41 | 0 | – | ||
| HITACHI | EX35U | 3LD1-PA33 | 0 | – | ||
| HITACHI | EX40U | 4LE1 | 0 | 1997–2004 | ||
| HITACHI | EX50U | 4LE1 | 0 | 1999–2001 | ||
| HITACHI | EX50UNA | 4LE1-PA07 | 0 | – | ||
| HITACHI | EX50UNA | 4LE1-PA19 | 0 | – | ||
| HITACHI | ZAXIS 50U | CC4LE2-PA02 | 0 | – | ||
| HITACHI | ZX50U | CC4LE2-PA02 | 0 | – | ||
| HYSTER | H 40 | 0 | 1985–2008 | |||
| HYSTER | S25 | 0 | 1985–2008 | |||
| ISEKI | 4451 | 0 | 1991–1996 | |||
| ISUZU | 2.2 D (KBD27) | CAMPO (KB) | C223 | 53 | Diesel | 1986–1990 |
| ISUZU | 2.2 D (UBS52) | TROOPER I Open Off-Road Vehicle (UBS) | C223-T | 61 | Diesel | 1983–1983 |
| ISUZU | 2.2 D 4WD | TROOPER I (UBS) | C223 | 53 | Diesel | 1984–1989 |
| ISUZU | 2.2 D 4WD (KBD42, KBD47) | CAMPO (KB) | C223 | 53 | Diesel | 1983–1990 |
| ISUZU | 2.2 D 4x4 | TROOPER I Open Off-Road Vehicle (UBS) | C223 | 53 | Diesel | 1984–1989 |
| ISUZU | 2.2 TD (UBS52) | TROOPER I Open Off-Road Vehicle (UBS) | C223-T | 72 | Diesel | 1984–1991 |
| JOHN DEERE | 27CZTS | 3LD2 | 0 | 2003–2006 | ||
| JOHN DEERE | 35CZTS | 3LD2 | 0 | 2003–2005 | ||
| JOHN DEERE | 50CZTS | 4LE2 | 0 | 2003–2005 | ||
| JOHN DEERE | 50ZTS | 4LE1 | 0 | 1999–2002 | ||
| KOMATSU | PC50 | 0 | 1990– | |||
| MER EQUIPMENT | MG18 | 4LE1 | 0 | – | ||
| MER EQUIPMENT | MP55 | 4LE1 | 0 | – | ||
| OPEL | 2.2 D | CAMPO (TF0, TF1) | 4FD1 | 61 | Diesel | 1990–1992 |
| OPEL | 2.2 D 4x4 | CAMPO (TF0, TF1) | 4FD1 | 61 | Diesel | 1990–1992 |
| SSANGYONG | 2.2 D | KORANDO (K5, K9) | DC23 | 68 | Diesel | 1988–1996 |
| TCM | FC 3024 | 0 | 1986– | |||
| THERMO KING | Engine | C201 | 0 | 1984– | ||
| THOMAS BUILT BUSES | T45S | 4LE1 | 0 | 1991–2005 |
