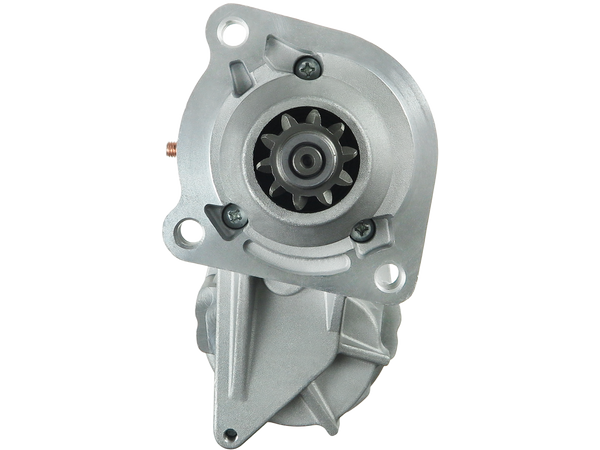

S6205
Startmotorer
STANDARD LINE
1467 kr
Köp nu
| EAN | 5902129038139 |
| Tillverkare | AS-PL |
| Ersätter | DENSO |
| OE-nummer | 228000-5000 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 24 |
| Effekt [ kW ] | 5.50 |
| Startmotors rotation | CW |
| A-storlek [ mm ] | 89.00 |
| B-storlek [ mm ] | 48.00 |
| Antal kuggar [ qty. ] | 10 |
| Antal hål i huvudet [ qty. ] | 3 |
| Antal gängade hål [ qty. ] | 0 |
| L.1 [ mm ] | 316.00 |
| O.1 [ mm ] | 90.00 |
| O.2 [ mm ] | 127.00 |
| O.3 [ mm ] | 90.00 |
| C.1 [ mm ] | 12.50 |
| C.2 [ mm ] | 12.50 |
| C.3 [ mm ] | 12.50 |
| Oil sealed | Yes |
Passar i 8 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| CASE IH | 5.9 | Various Models | B6T-590 | 0 | – | |
| KOMATSU | D39EX-21 | SAA4D102E | 0 | 2001–2011 | ||
| KOMATSU | D39PX-21 | SAA4D102E | 0 | 2001–2011 | ||
| KOMATSU | Engine | 6B | 0 | 1995–1995 | ||
| KOMATSU | PC220LC | 6D105 | 0 | 1996–2006 | ||
| KOMATSU | 6.5 | Engine | 6D105 | 0 | – | |
| KOMATSU | 6.5 | PC220LC | 6D105 | 0 | 1996–2006 | |
| KOMATSU | 6.7 | WA380-6 | SAA6D107E-1 | 193 | 2006–2015 |
